Paper Deflectors
Inner Paper Deflector Assembly
1. Remove the paper tray.
2. Remove the upper deflector assembly.
3. Place the printer on its side.
4. Remove the lower deflector assembly.

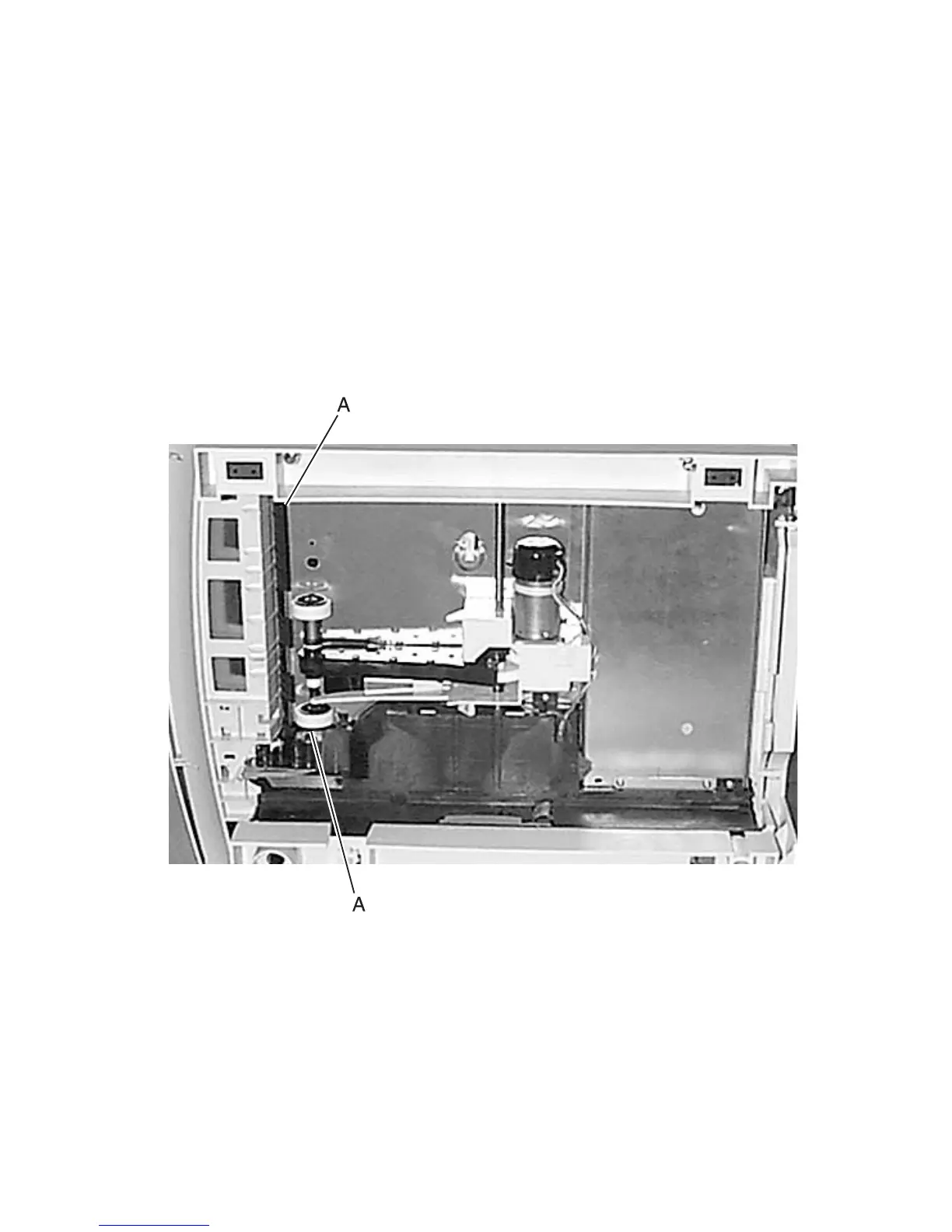

5. Gently pry the inner paper deflector from the left and right
mounting posts (A) located on the bottom of the printer and
remove the deflector.
Upper Paper Deflector Assembly
1. Open the multipurpose tray and remove the tray from the two
mounting posts.
2. Gently release the upper deflector assembly latch from its
mounting on the right side frame and slide to the right.
3. Remove the upper deflector assembly.
