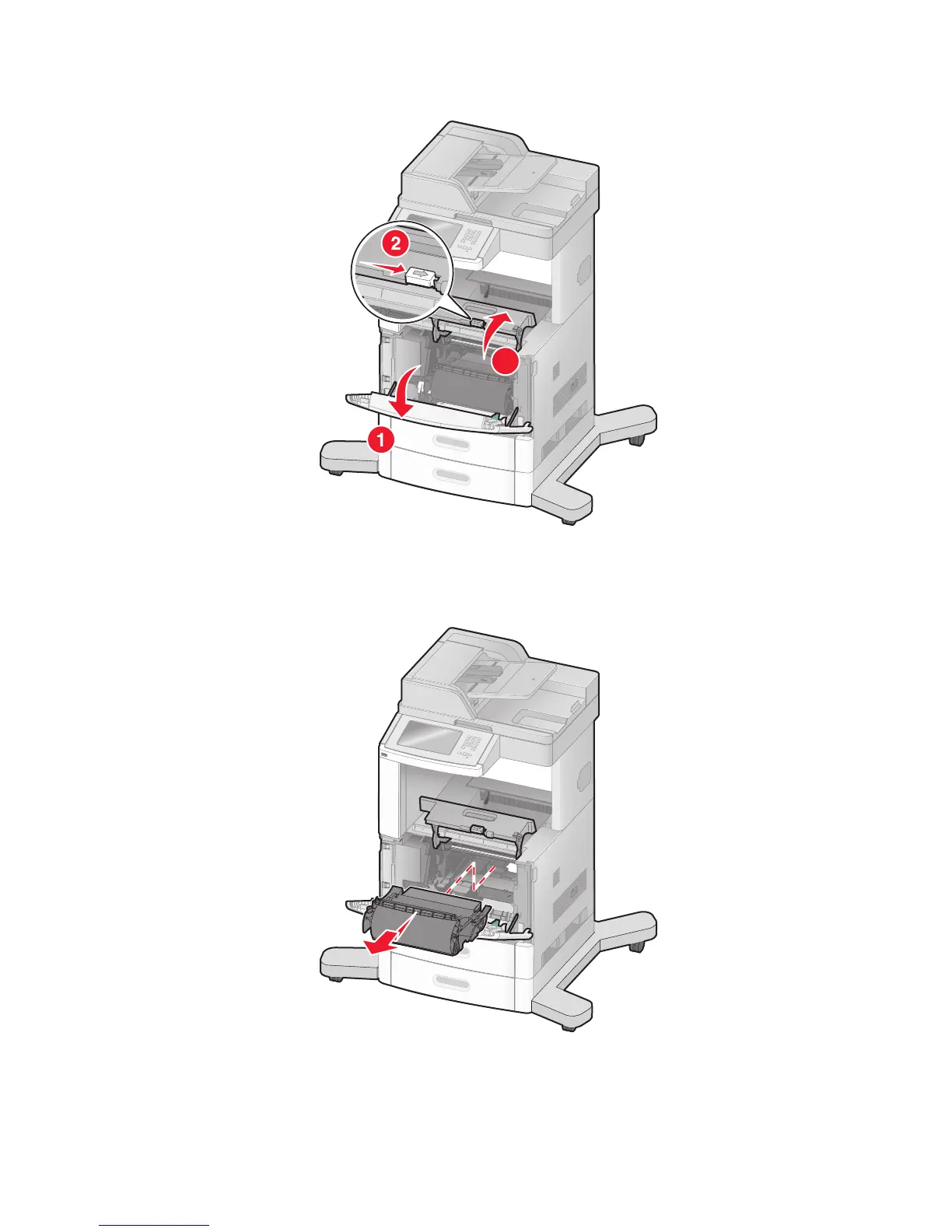

3 Push the release latch, and then open the front cover.

4 Lift and pull the print cartridge out of the printer.

Warning—Potential Damage: Do not touch the photoconductor drum on the underside of the cartridge. Use

the cartridge handle whenever you are holding the cartridge.
