High capacity input tray (HCIT) anti-tip latch assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
The left and right anti-tip latch assemblies are the same, and only one is in a package. The instructions below
are for removing the left latch; removing the right latch has similar instructions.
1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-159.

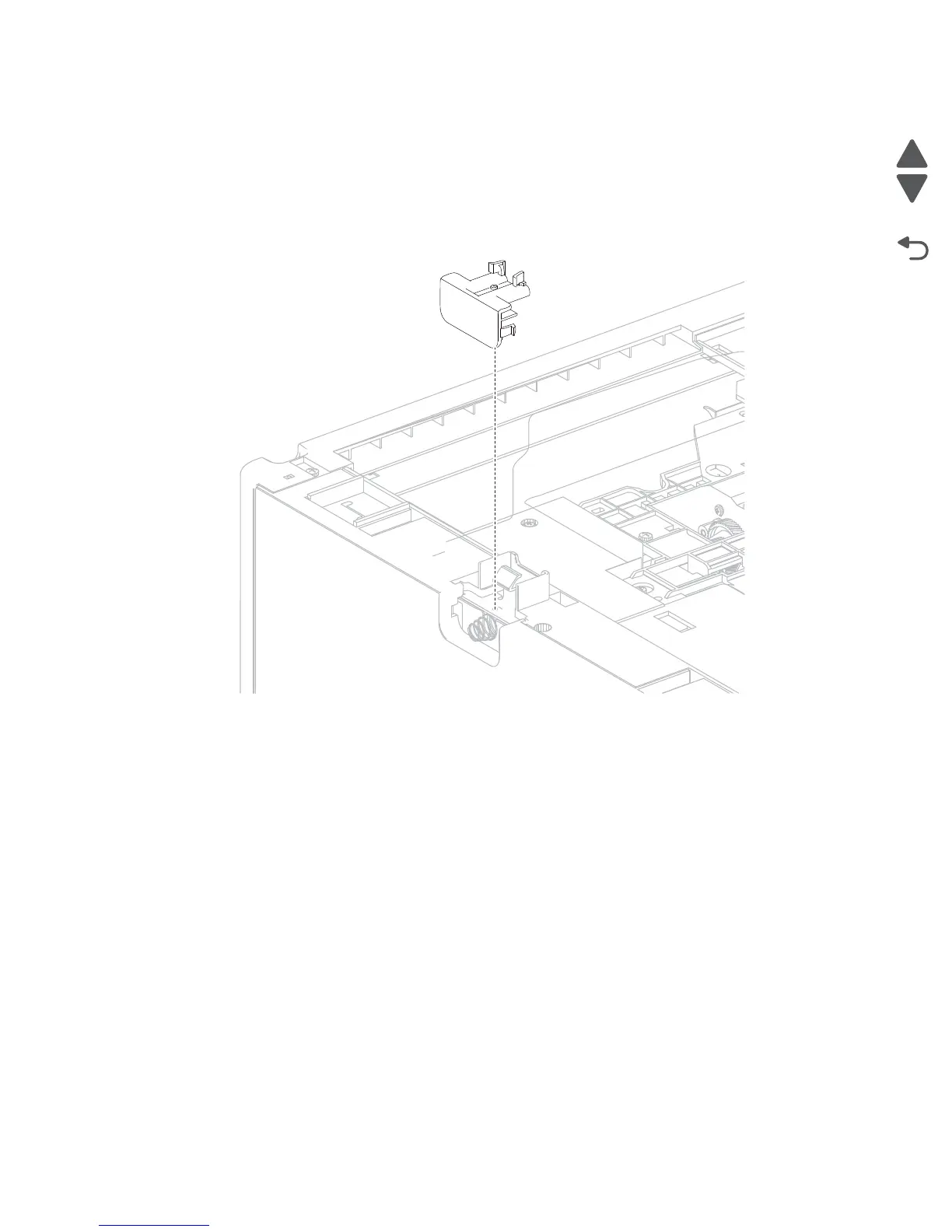

Note: The left side anti-tip assembly will come off when removing the HCIT cover, left.
