Lexmark X658DE - High Capacity Input Tray (Hcit) Controller Card Assembly Removal

To Next Page

To Previous Page

4-164 Service Manual

7462

Go Back

High capacity input tray (HCIT) controller card assembly removal

Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.

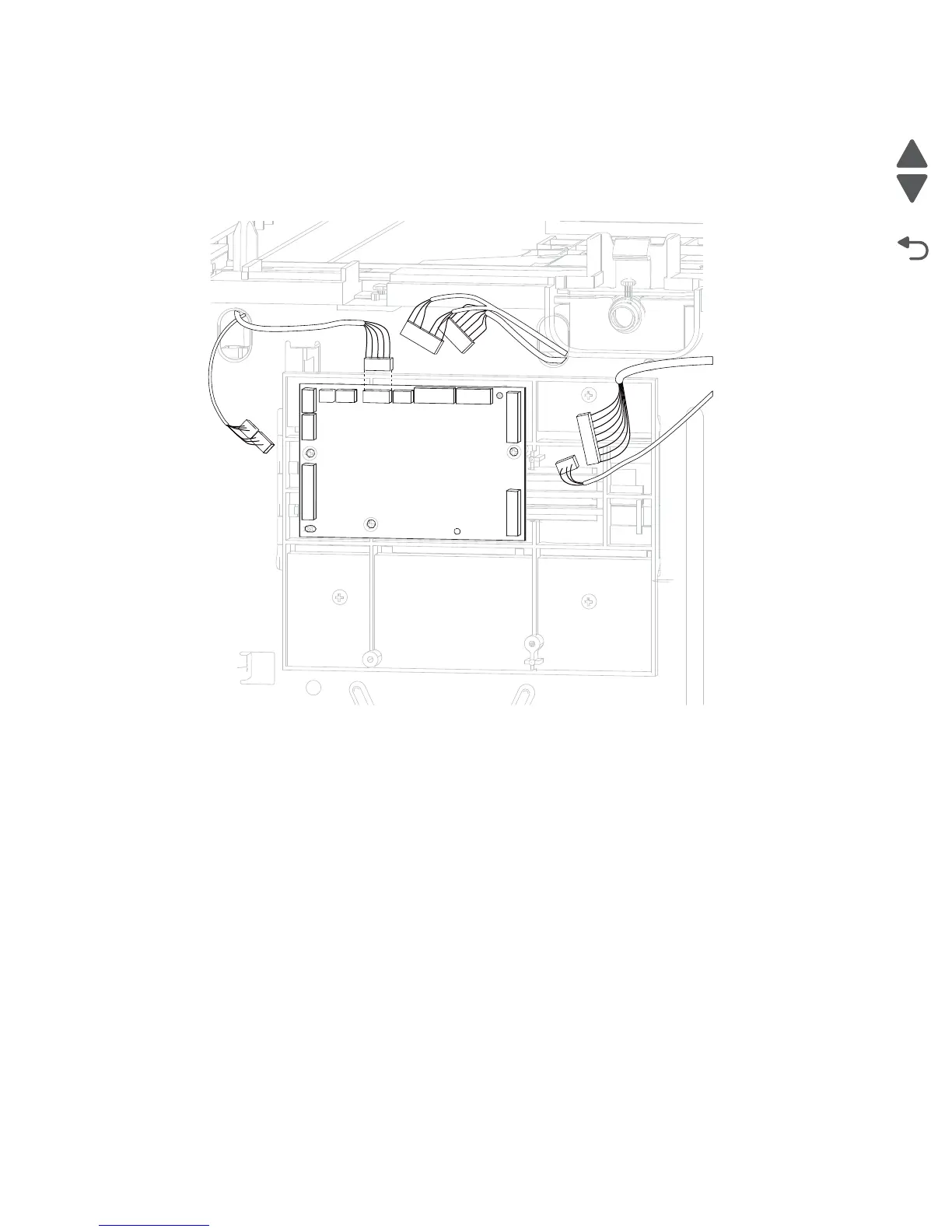

1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-159.

2. Disconnect all connectors from the HCIT controller card assembly.
