Lexmark XM1140 - Page 328

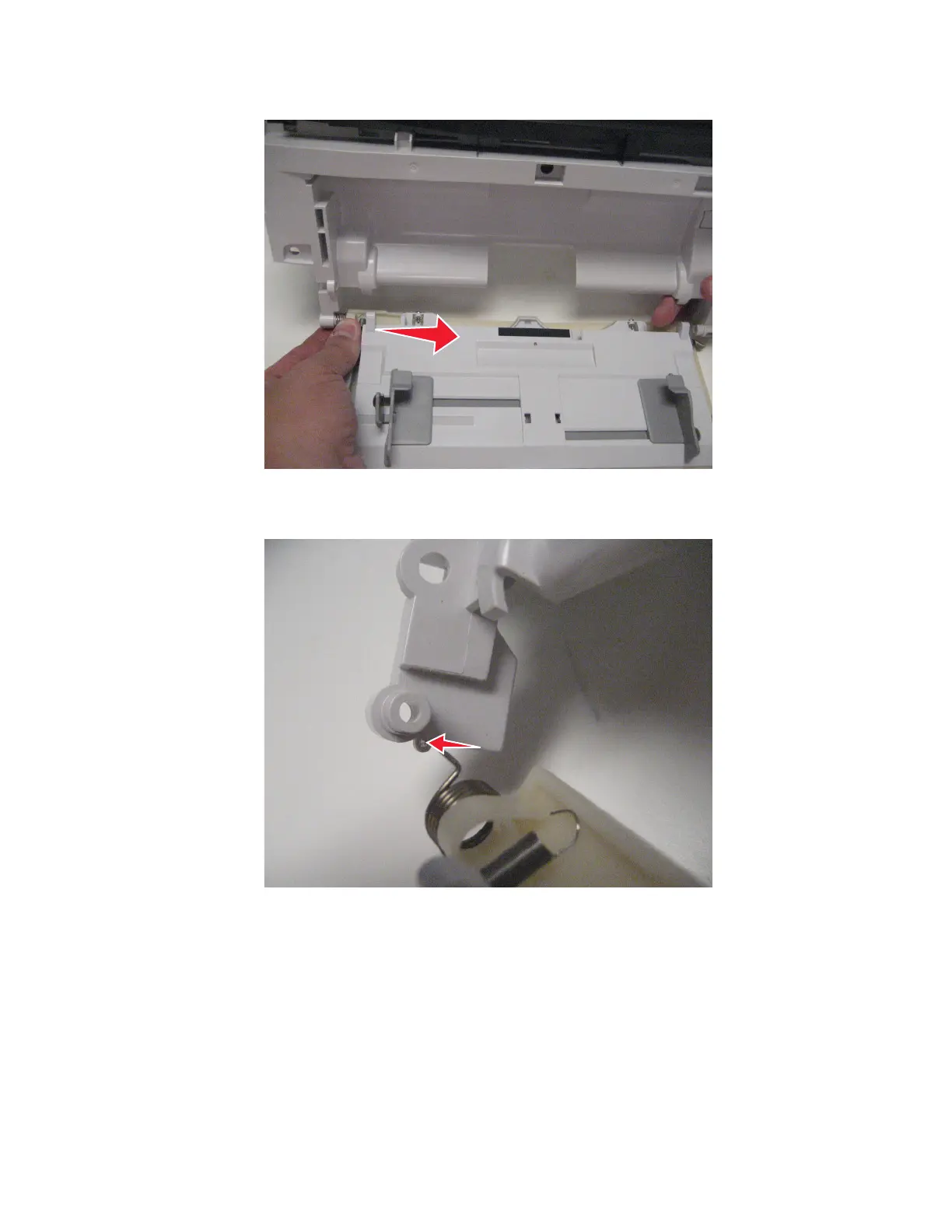

5 Slide the tray to the right, and remove the MPF tray and spring.
Installation note: Insert the straight end of the spring into the hole on the front access cover before
sliding the MPF tray onto the left pivot of the front access cover.
7015
Parts removal
328
