6-3. Do-it-yourself maintenance

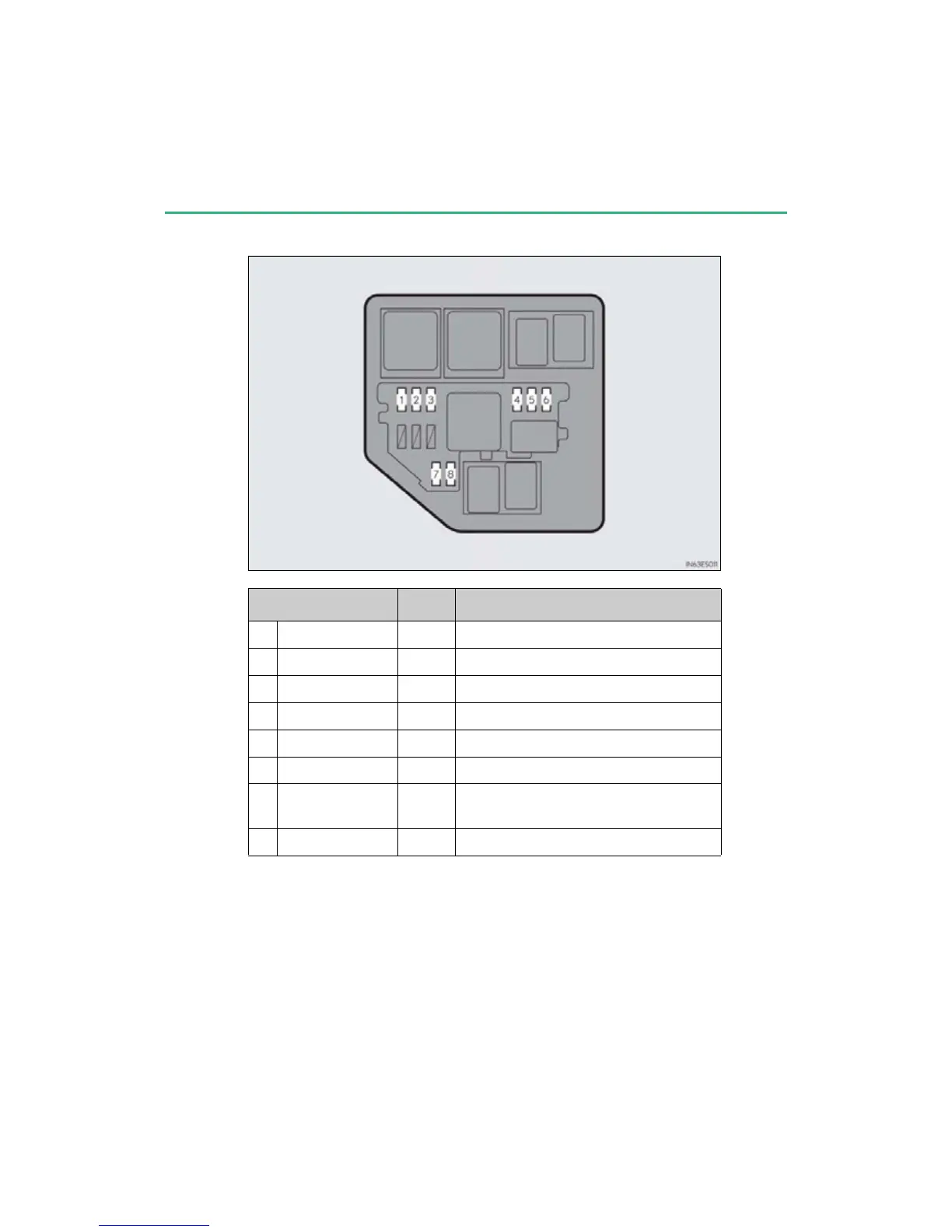

■ Engine compartment (type B fuse box) (hybrid vehicles only)
Fuse Ampere Circuit
1 BATT FAN 7.5 Battery cooling fan
2 INV W/PMP RLY 7. 5 INV W/PMP RLY
3 DC/DC IGCT 10 Hybrid system
4 INV 7. 5 Hybrid system
5 BATT VL SSR 10 Hybrid system
6 PM IGCT 7.5 Power management system, hybrid system
7 IGCT-MAIN 25
INV W/PMP RLY, INV, DC/DC IGCT,
BATT VL SSR, PM IGCT, BATT FAN
8 INV W/PMP 15 Hybrid system
To Next Page
