ES350_300h_OM_OM33A60U_(U)
729
6-3. Do-it-yourself maintenance
6
Maintenance and care

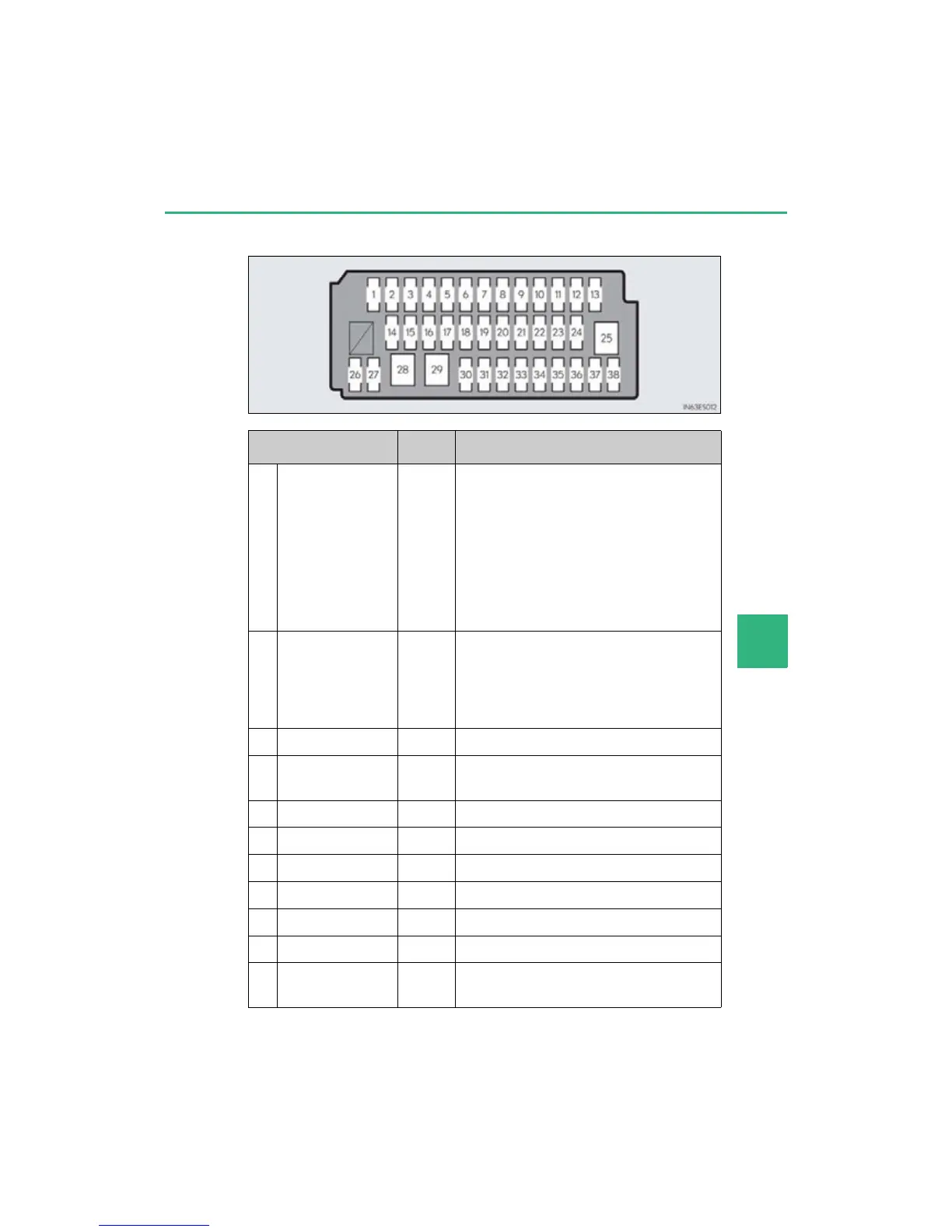

■ Driver’s side instrument panel
Fuse Ampere Circuit
1 ECU-IG1 NO.2 10
Main body ECU, audio system, shift lock sys-
tem, outside mirror control ECU, tension
reducer, windshield wipers, heated steering
wheel, multi-information display, audio dis-
play, intuitive parking assist, tire pressure
warning system, moon roof, auto anti-glare
inside rear view mirror, raindrop sensor, rear
sunshade, wireless door lock system, power
trunk opener and closer ECU
2 ECU-IG1 NO.1 10
Electric cooling fan, windshield wiper de-
icer, VSC, ABS, charging system, steering
sensor, electronic controlled transmission,
electric power steering, gateway ECU, elec-
tric tilt and telescopic steering column
3 PANEL NO.2 5 Clock
4 TA IL 15
Parking lights, side marker lights, license
plate lights
5 DOOR F/R 20 Power window, outside mirror control ECU
6 DOOR R/R 20 Power window
7 DOOR F/L 20 Power window, outside mirror control ECU
8 DOOR R/L 20 Power window
9 H-LP LVL 7. 5 Automatic headlight leveling system
10 WA SH ER 10 Windshield washer
11 A/C-IG1 7. 5
Air conditioning system, PTC heater, gauges
and meters, seat heaters and ventilators
To Next Page
