3-19

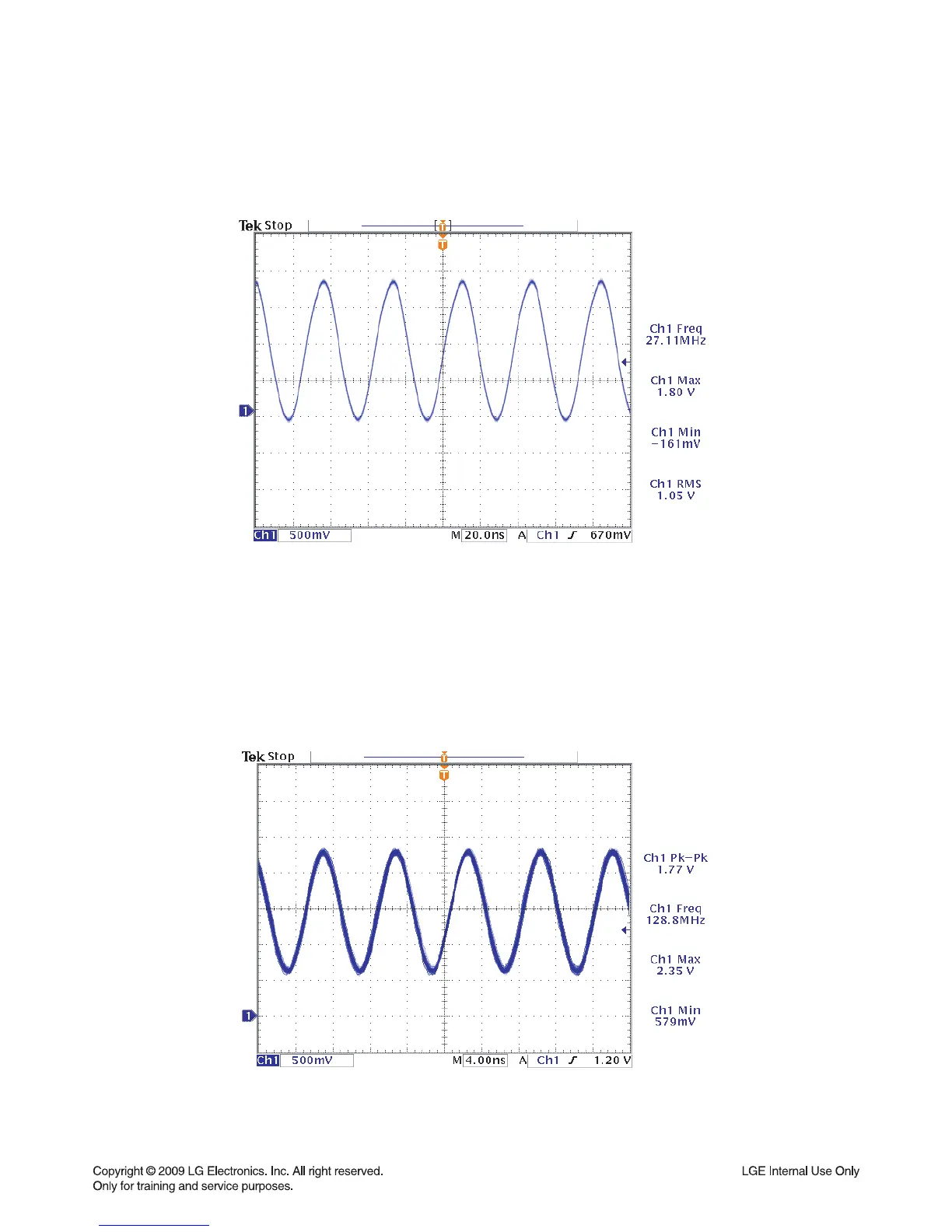

DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING
FIG 1-1
1. SYSTEM 27MHz CLOCK
1) MT1389L main clock is at 27MHz (Y201.1)
FIG 2-1
2. SDRAM CLOCK
1) MT1389 main clock is at 27MHz (R303)
