LG DP450P Service Manual
4
of 1
of 1 rating
45 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3-25

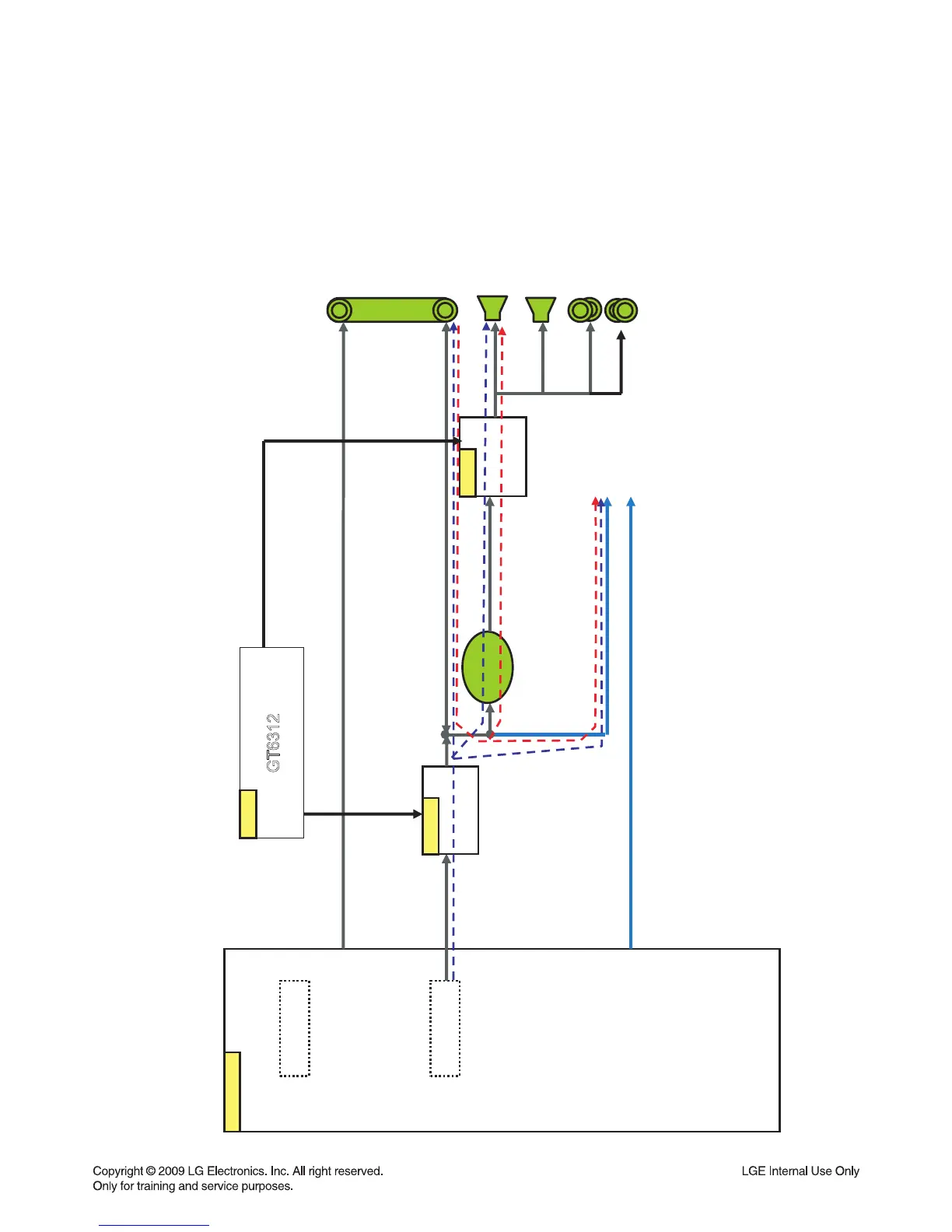

5. A/V BLOCK DIAGRAM
SP_R+/R-
AOUT_L/R
2CH DAC
MT1389DE/LP
MPEG
VIDEO
1.8V/
3.3V
CVBS
AUDIO
PT2303
SPK
SPK
A+5V
SP_L+/L-
H/P JACK
SP_L-/R-
A_MUTE_SW
NJM4580
M
OP-AMP
12V
< AV OUT >
SP_MUTE
ML_OUT,MR_OUT
SDA,SCL,
VOLUME
System & A
V Part
VIDEO ADC
GT
631
2
H/P JACK
SP_L-/R-
5VA
31
33
Table of Contents
Section 1 Summary
3
Default Chapter
3
Table of Contents
3
Product Safety Servicing Guidelines for Video Products
4
Servicing Precautions
5
General Servicing Precautions
5
Insulation Checking Prodedure
5
Electrostatically Sensitive (Es) Devices
5
Specifications
6
Liquid Crystal Display
6
Exploded Views
8
Exploded Views
9
Cabinet and Main Frame Section
9
Packing Accessory Section
10
Section 3 Electrical
12
Lcd Part
13
Lcd Electrical Troubleshooting Guide
13
Block Diagram
14
Circuit Diagram
15
Printed Circuit Board Diagram
16
Main Part
18
Main Electrical Troubleshooting Guide
18
Power (DC-DC Converter Circuit)
18
Mpeg Circuit
21
Rf/Servo Circuit
22
Charging Circuit
25
Details and Waveforms on System Test and Debugging
26
SYSTEM 27Mhz CLOCK
26
Sdram Clock
26
Mt1389 Video Output Waveform
27
Audio Output from Audio Dac
27
Block Diagrams
28
Overall Block Diagram
28
Power Block Diagram
29
Servo Block Diagram
30
System Block Diagram
31
A/V Block Diagram
32
Circuit Diagrams
34
Mpeg Circuit Diagram
34
Memory Circuit Diagram
35
Opu & Motor Circuit Diagram
36
Av Circuit Diagram
37
Charge Circuit Diagram
38
Lcd I/F Circuit Diagram
39
Key Circuit Diagram
40
Circuit Voltage Chart
41
Printed Circuit Board Diagrams
43
Main P.C.board
43
Key P.C.board
45
