10
Connecting
2

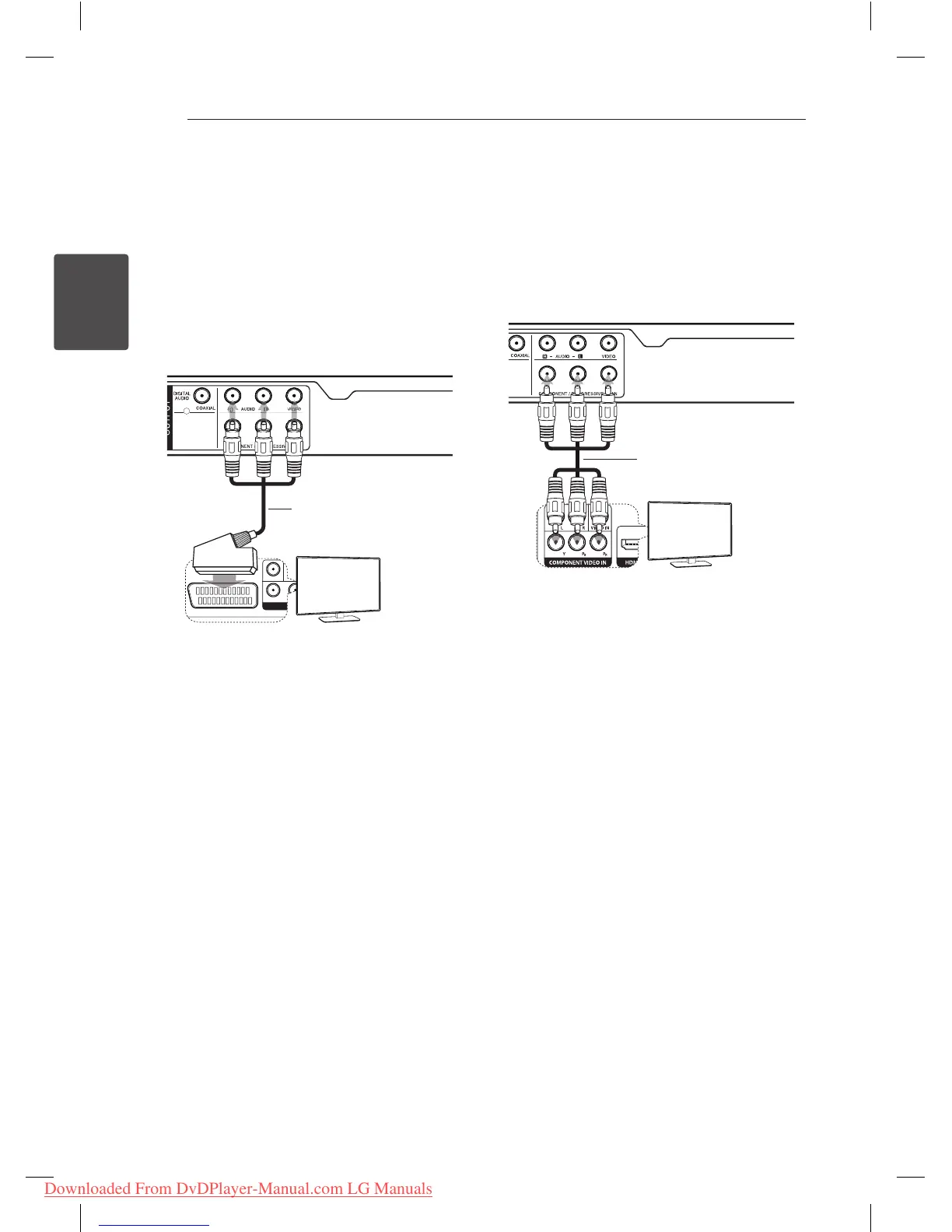

Connecting to your TV
Connecting Video / Audio
cable
Connect the VIDEO/AUDIO OUT on the unit to
VIDEO/AUDIO IN on TV with Video/Audio cable,
such as VIDEO with yellow, AUDIO Left/Right with
white/ red.
Connecting Component Video
cable
Connect the COMPONENT VIDEO OUT (Y P
B
P
R
)
jacks on the unit to the corresponding input jacks
on the TV using Component video cable, such as Y
with green, Pb with blue, and Pr with red.
y
If your TV accepts progressive format signals, you
must use this connection and set [Progressive
Scan] to [On] on the setup menu. (See page 12)
y
You should still connect the AUDIO cable
between the unit and TV.
TV
Video/Audio cable
Rear of the Unit
Rear of the Unit
Component
Cable
TV
