Chapter 2 SPECIFICATIONS
2 - 3
2.3 Names of Parts and Functions
The following gives names of parts :

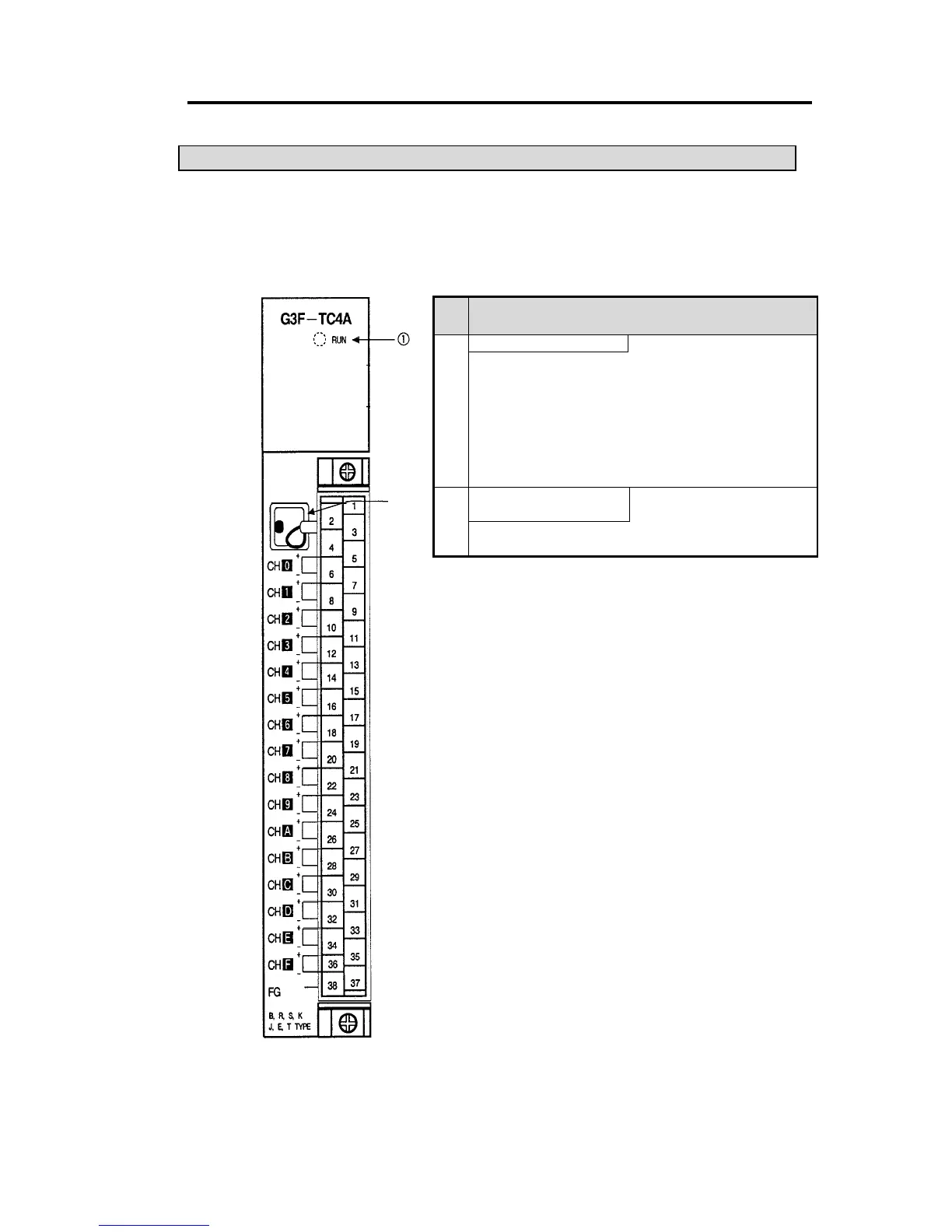

2.3.1 G3F-TC4A
The following gives the names and functions of each part of the G3F-TC4A.
No Contents
RUN LED
①
It displays the operating status of G3F-TC4A
z On : Normal Operation
z Flickering: Error occurred (For details, refer to
Troubleshooting Sec-
tion 9.1)
z Off : 5 VDC disconnection or the G3F-TC4A
module H/W error
Reference junction com-
pensation device
②
Reference junction compensation for type K, J, E, T, R or S.
②
