- 104
-

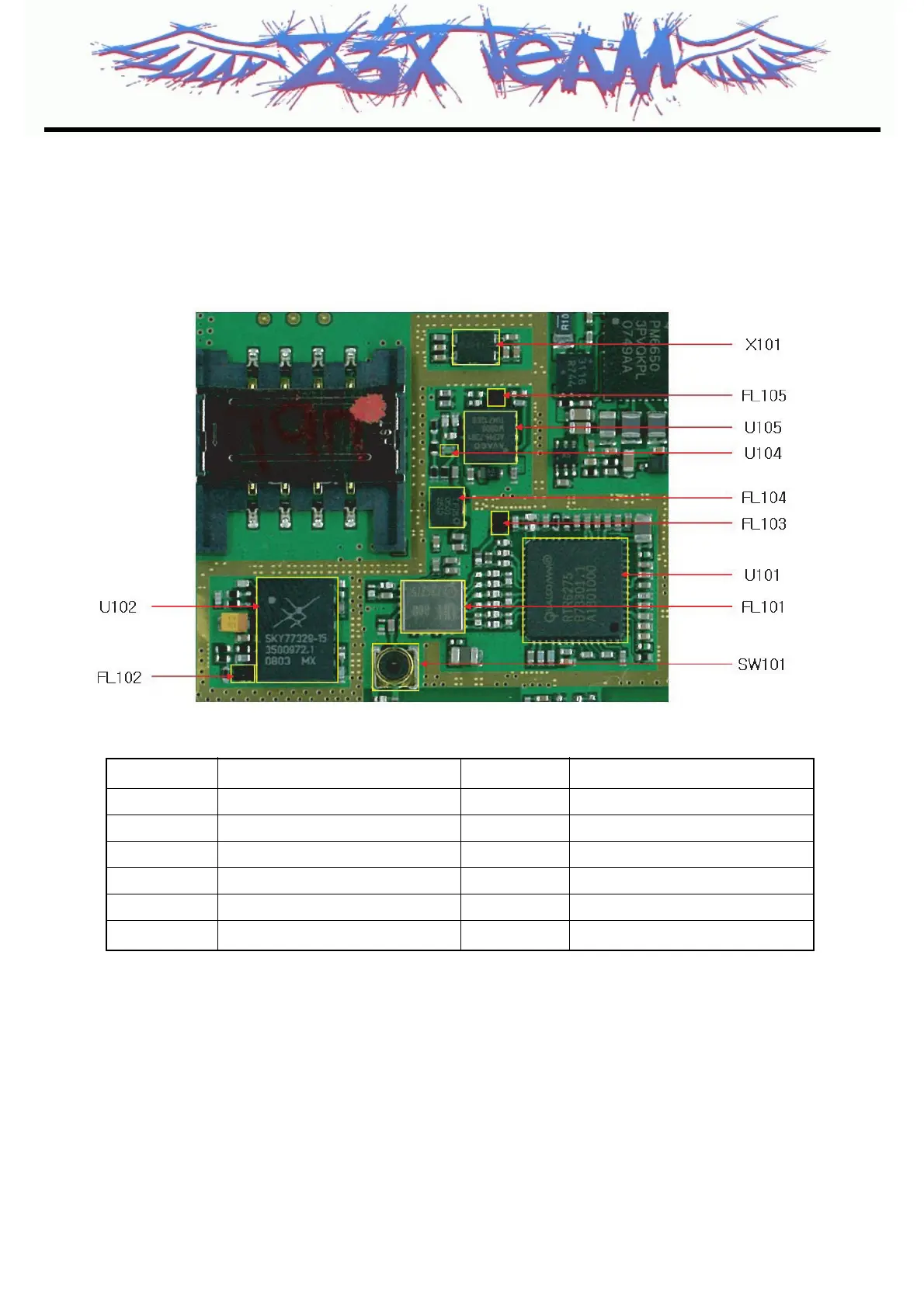

4. TROUBLE SHOOTING
4.1
1 RF Component
LGE Internal Use Only
Copyright ©
2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Reference
Description
Reference
Description
U100
GSM/UMTS Transceiver (RTR)
X101
VCTCXO(19.2MHz)
FL104
UMTS Duplexer
FL105
UMTS TX SAW
FL103
UMTS RX SAW
U105
UMTS PAM
FL101
Front-End-Module
U104
Coupler
SW101
RF Antenna Connector
FL102
GSM900 TX SAW
U102
GSM/EDGE PAM
Z3X-BOX.COM
102
104
