- 110
-
4. TROUBLE SHOOTING
LGE Internal Use Only
Copyright ©
2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
ANTENNA SW LOGIC for LSHS-M090UH(HIT
ACHI MA
T
AL)
ANT_SEL0
ANT_SEL1
ANT_SEL2
EGSM TX
HIGH
LOW
LOW
DCS/PCS TX
HIGH
HIGH
LOW
UMTS2100
HIGH
LOW
LOW
EGSM/PCS RX
LOW
LOW
LOW
DCS RX
LOW
LOW
HIGH

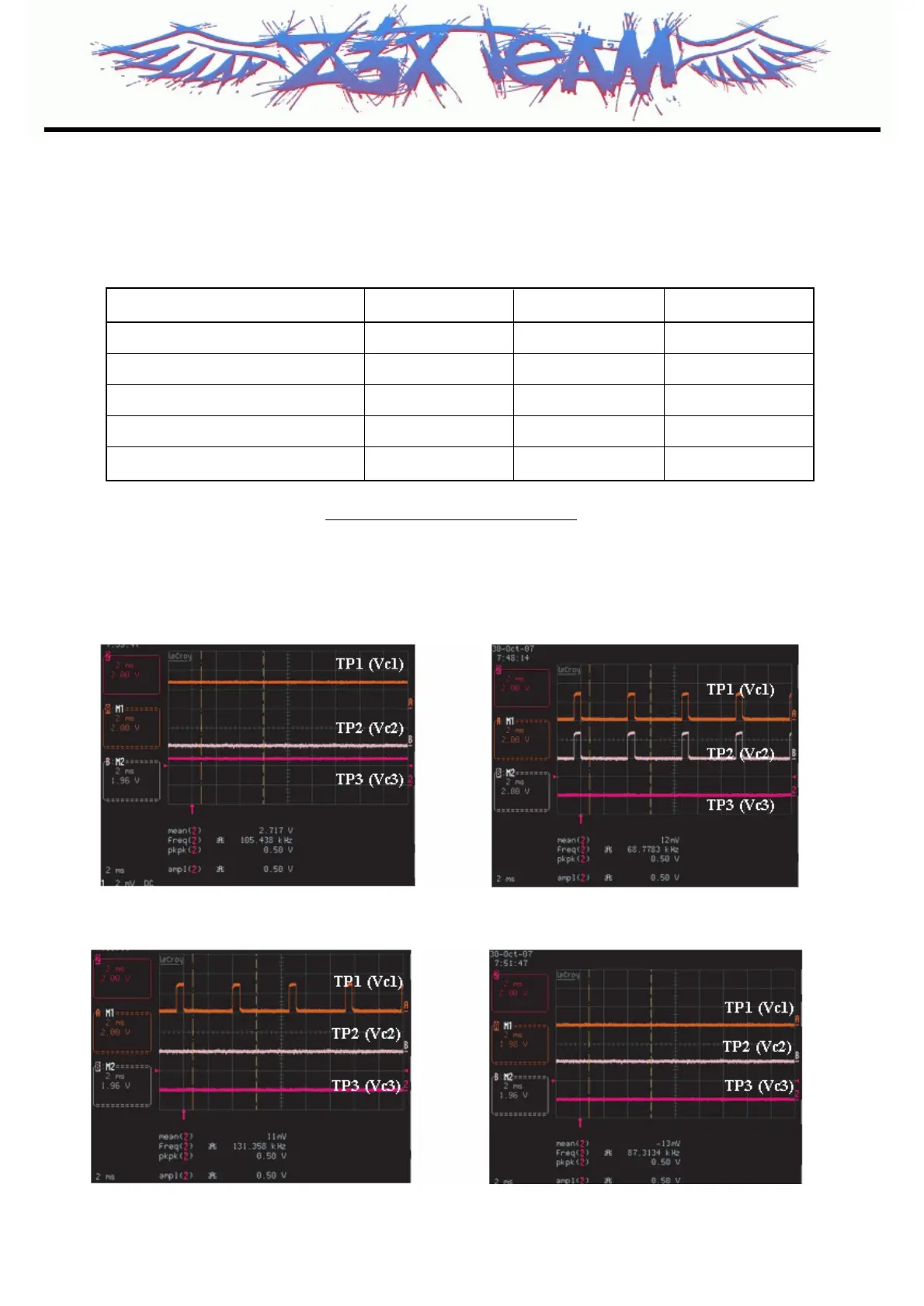

[Table 4.1] Logic Table of the FEM
- UMTS Tx/Rx
- DCS1800/PCS1900 Tx
- GSM900 Tx
- GSM Rx / PCS1900 Rx
Z3X-BOX.COM
108
110
