LG HB620 Service Manual

- 115 -
4. TROUBLE SHOOTING
4.15.2 Checking UMTS PAM Control Block

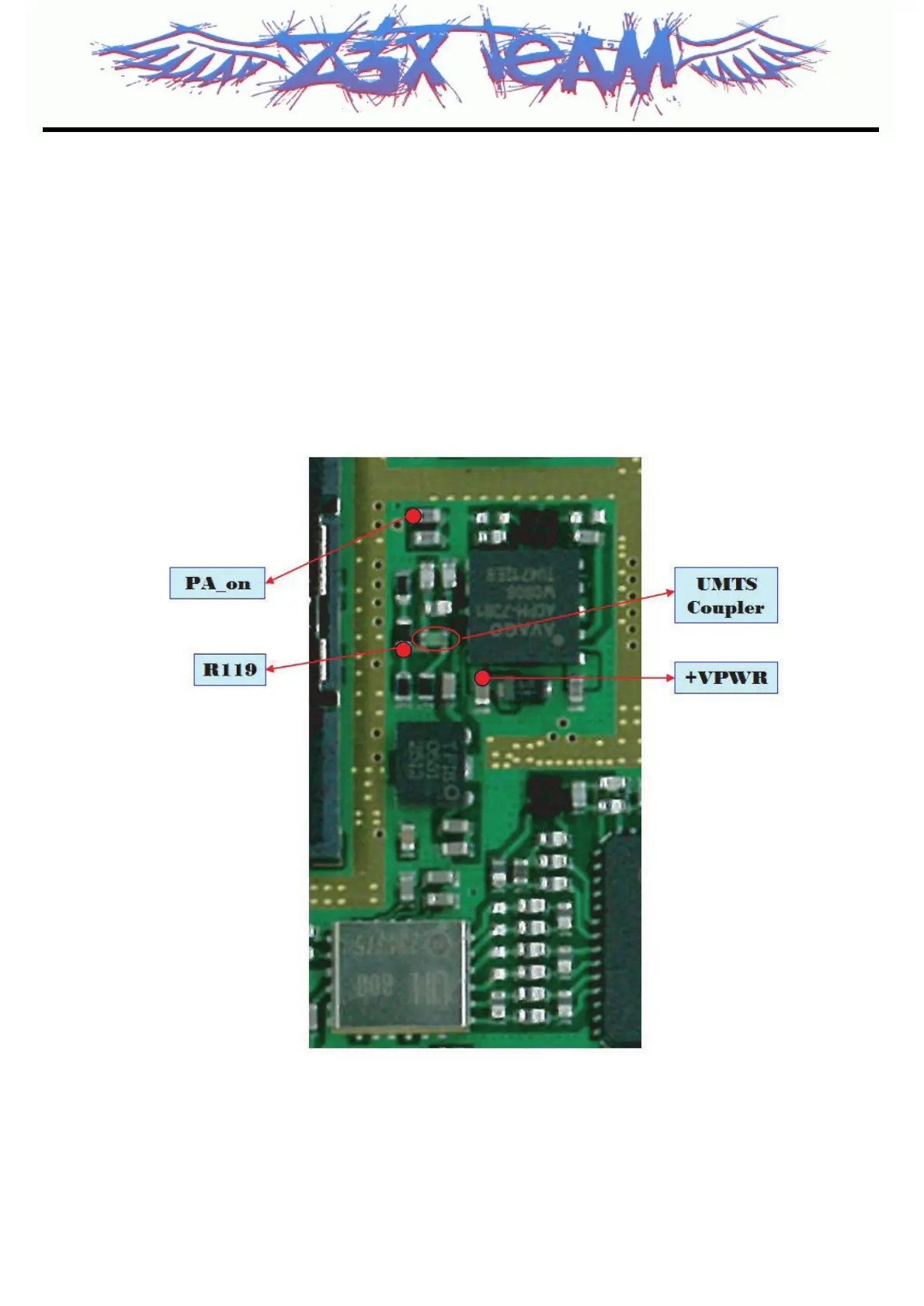

• PAM control signal
1. PWR_DET : UMTS Tx Power Detected value (Check R119)
2. TX_AGC_ADJ : UMTS RTR6275 Tx Amp Gain Control
3. +VPWR : UMTS PAM Main Voltage ( 3V < +VPWR < 4.2V)
4. PA_ON : Turns the PA on and off
5. PA_R1 : Control signals that step the active PA mode and bias
