3. TECHNICAL BRIEF
- 22 -
The GSM900, DCS1800, and PCS1900 receive signals are routed to the RTR6275 through band
selection filters and matching networks that transform single-ended 50Ω sources to differential
impedances optimized for gain and noise figure. The RTR input uses a differential configuration to
improve second-order inter-modulation and common mode rejection performance. The RTR6275 input
stages include MSM-controlled gain adjustments that maximize receiver dynamic range.
The amplifier outputs drive the RF ports of the quadrature RF-to-baseband downconverters. The
downconverted baseband outputs are multiplexed and routed to lowpass filters (one I and one Q)
having passband and stopband characteristics suitable for GMSK or 8-PSK processing. These filter
circuits include DC offset corrections. The filter outputs are buffered and passed on to the MSM6280 IC
for further processing.

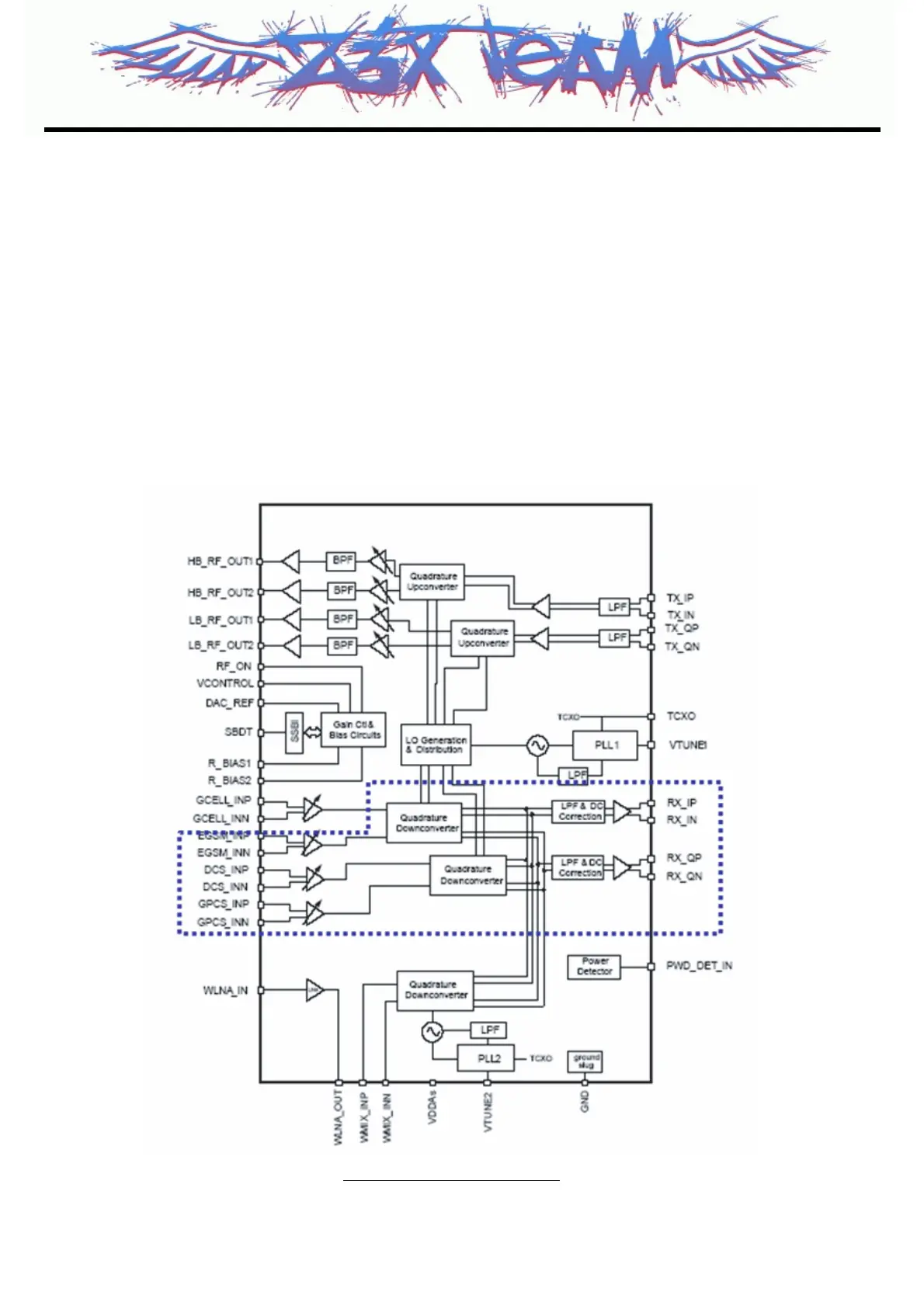

[Fig. 3.2] RTR6275 RX feature
