3.10.6 LCD Module (IM300SBN1A : LG Innotek)
- The IM200RST1A model is a Color Landscape TFT(Main) & Color TFT(Sub) LCD supplied by LG
Innotek. This main Module has a 2.0 inch diagonally measured active display area with
320(RGB)X240 resolution and sub Module has a 0.86 inch diagonally measured active display area
with 34(RGB)X96 resolution. each pixel is divided into Red, Green and Blue subpixels and dots which
are arranged in vertical stripes.
* Features
- Display mode : Main: Normally Black, Transmissive LCD. VA mode 262K colors
Sub: Normally White, Trasmissive LCD, VA mode 65K colors
- LCD Driver IC- Main : R61513 (RENESAS) Sub : NT39107(Novatek)
- Driving Method : a-Si TFT Active Matrix
- 16/18 Bit, CPU I/F Parallel
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. TECHNICAL BRIEF
- 69 -

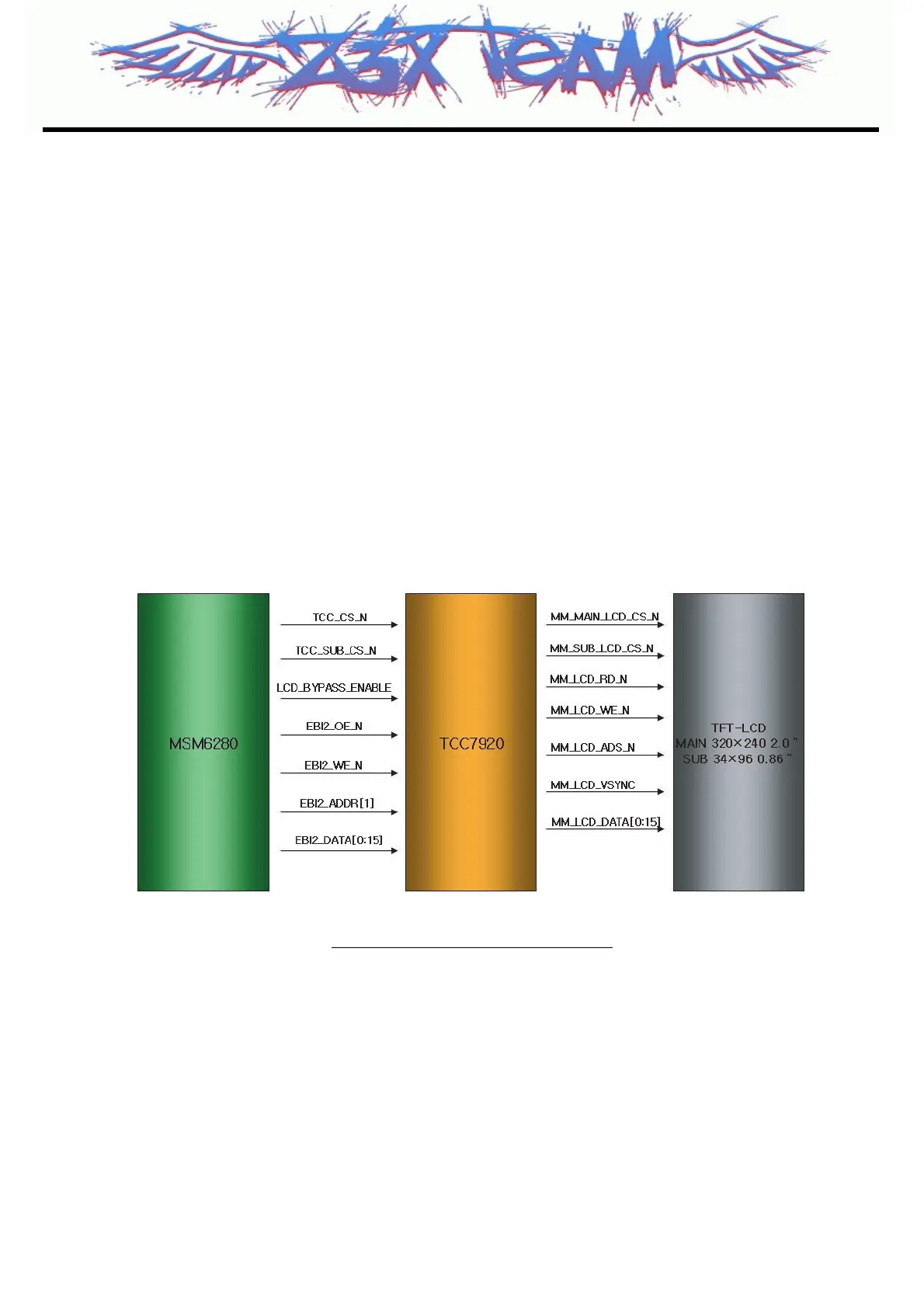

[Fig. 3.24] LCD Module Block Diagram
