Introduction

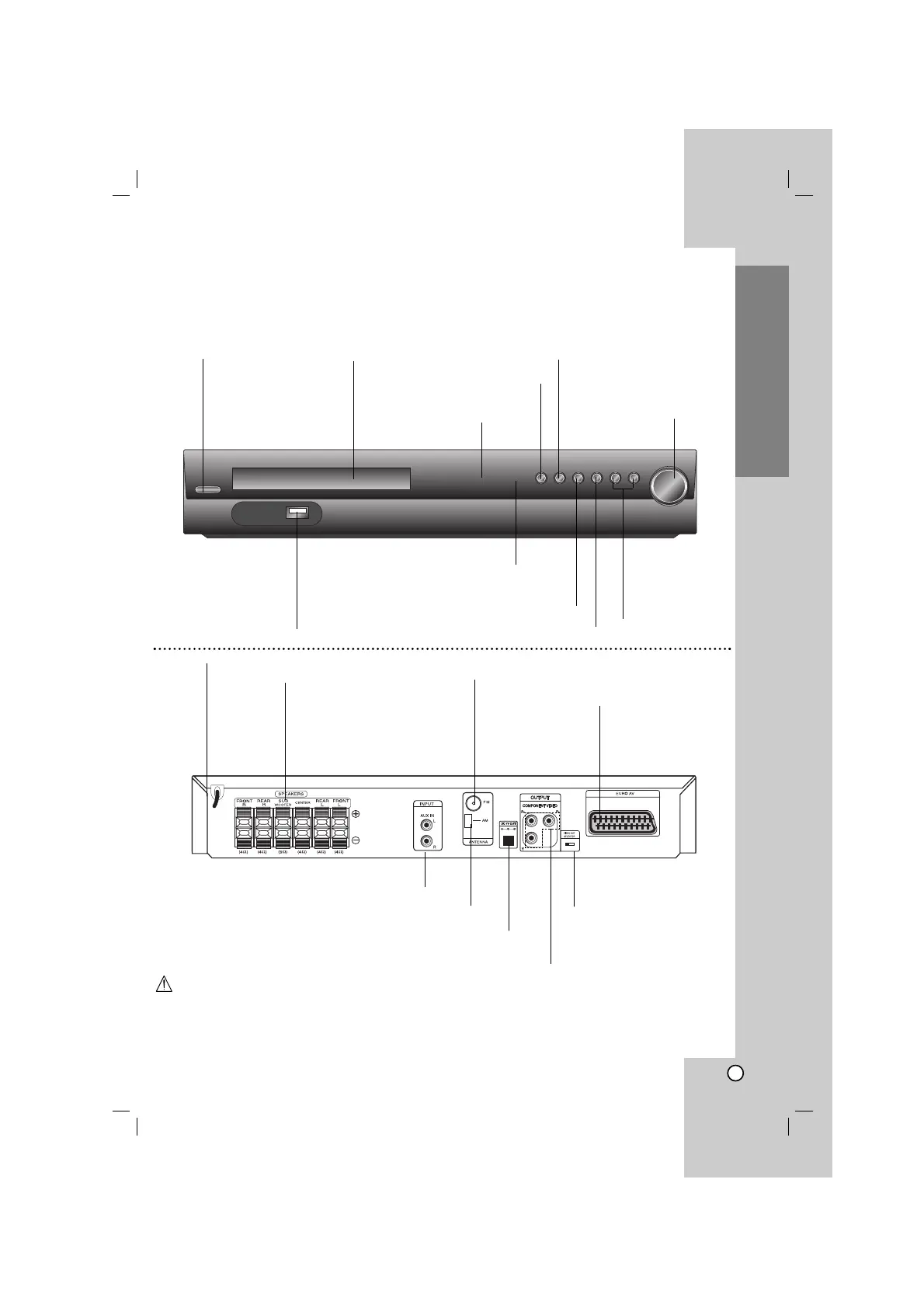

OPEN/CLOSE button
TUNING(-/+)
/SKIP/SCAN
(
..
bb/BB
>>
)
buttons
Remote sensor
VOLUME controller
STANDBY/ON
STANDBY indicator
Lights red when the
receiver is in Standby
mode (off).
DISPLAY Window
DISC Tray
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause
permanent damage to the unit.
USB Port
Connect to a USB port of
multimedia
(USB memory etc.)
FUNC./PLAY
Press and hold down this button
about 3 seconds, then press
repeatedly to select other function.
MONO/ST./
PAUSE/STEP
STOP
FM Antenna connector
AM Loop Antenna connectors
SPEAKER connectors
Power Cord
AUX AUDIO Input (L/R) Connectors
Front Panel/Rear Panel
OUTPUT (TO TV)
EURO AV socket
Connect to a TV with
SCART jack.
COMPONENT VIDEO OUT terminals
Connect to a TV with Y PB PR inputs.
VIDEO OUT SELECTOR
switch
Wireless Transmitter (DC 7V OUT) connector
