Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the
computer system, and other attached devices is turned off.
For the desktop monitor, install the computer with the stand unfolded,
for the rack wall mounting, install the computer with the stand folded.

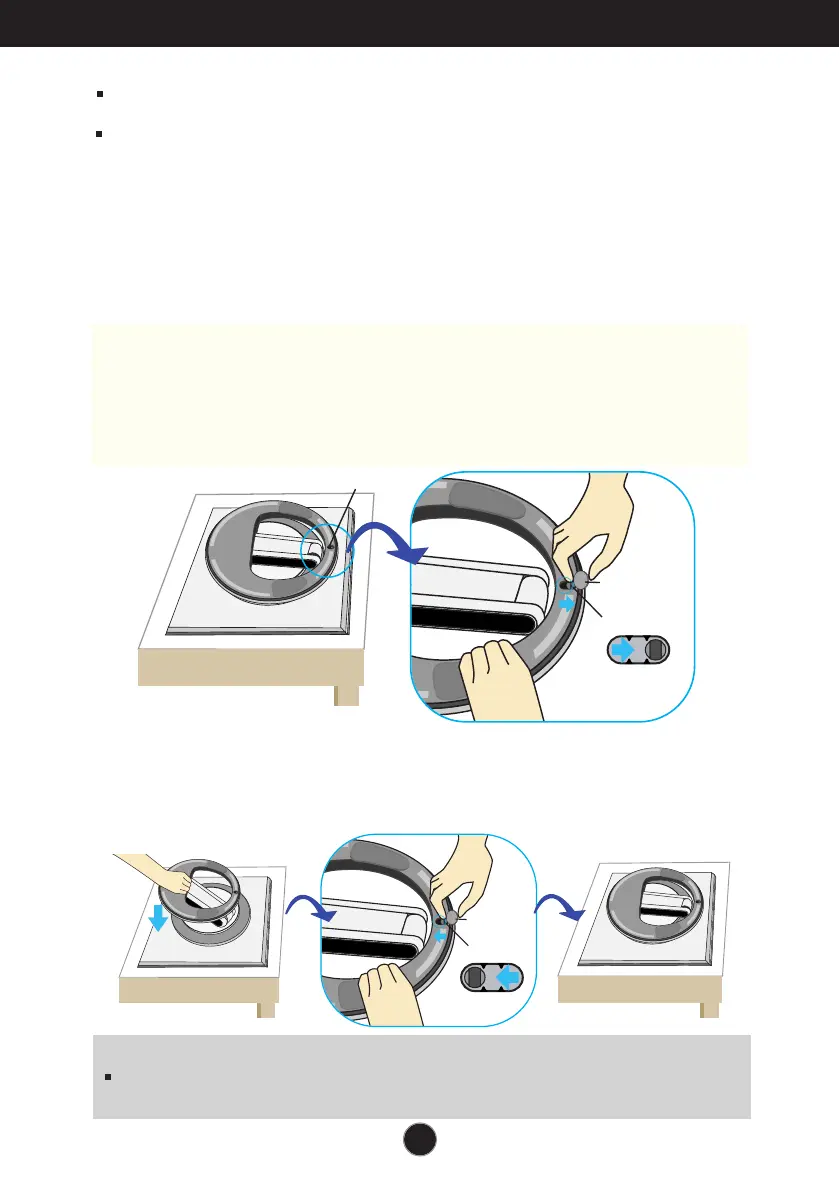

Unfolding the stand base
1. Place the monitor with its front facing downward on a cushion or soft cloth.
2. Remove the tape of stand base's hole, pull it towards the front side(in the
direction of the arrow) from the stand base using a coin or “-“ shape screwdriver.
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
1.
To fix a stand, push the folding stopper inwards until you hear the “click”sound
using a coin or “-“ shape screw driver, while pressing down the stand base to
the monitor.
Hole
Folding the stand base
* Caution : To avoid any minor injury, be sure to pull the folding stopper with the
stand base pressed by one hand, as shown below.
Make sure to pull up the folding stopper while pressing down the
stand base with one hand as shown in the below figure.
Otherwise, you can be injured by the projected stand base.
Folding Stopper
Coin,
"-"shape screwdriver
Folding Stopper
Coin,
"-"shape screwdriver
To Next Page
