4. Key Board
1) Remove the 2 screws securing the Button Assembly.
2) Remove the Button Assembly (Bracket Button + Button).
3) Disconnect the Harness cable from the Key Board.
4) Remove the 2 screws securing the Key Board.
5) Remove the Key Board.
3. Chassis Main Assembly
1) Remove the 10 (②) screws securing the Chassis Main Assembly.
2) Disconnect the Harness/FFC cables from the Main Board.
3) Remove the Chassis Main Assembly.

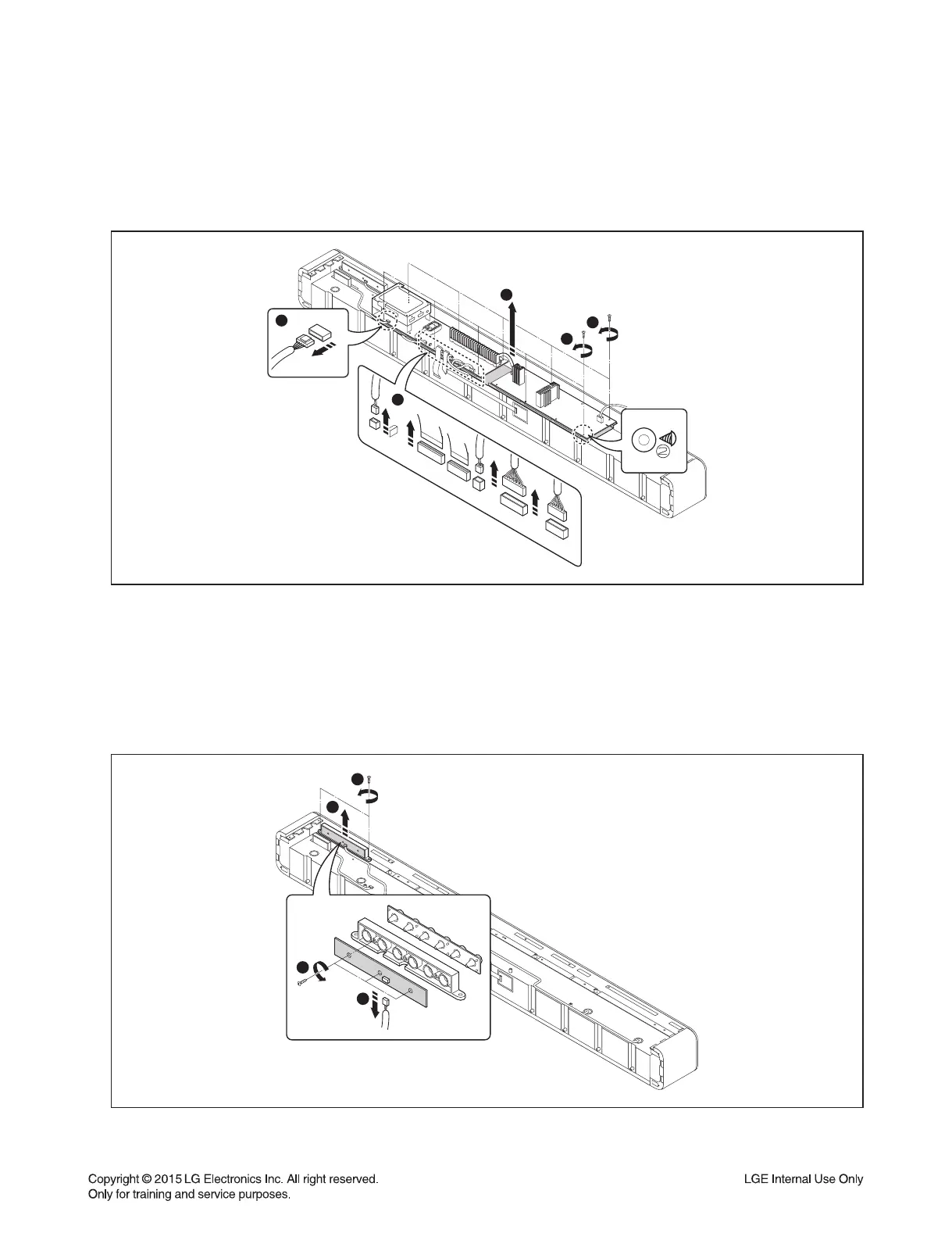

Fig. 4
Fig. 3
1
2
3
4
Bracket Button
Button
KEY
KEY
KEY
1
1
2
2
3 Chassis Main Assembly
MAIN
MAIN
MAIN
