LG LAS950M - Page 73

3-4

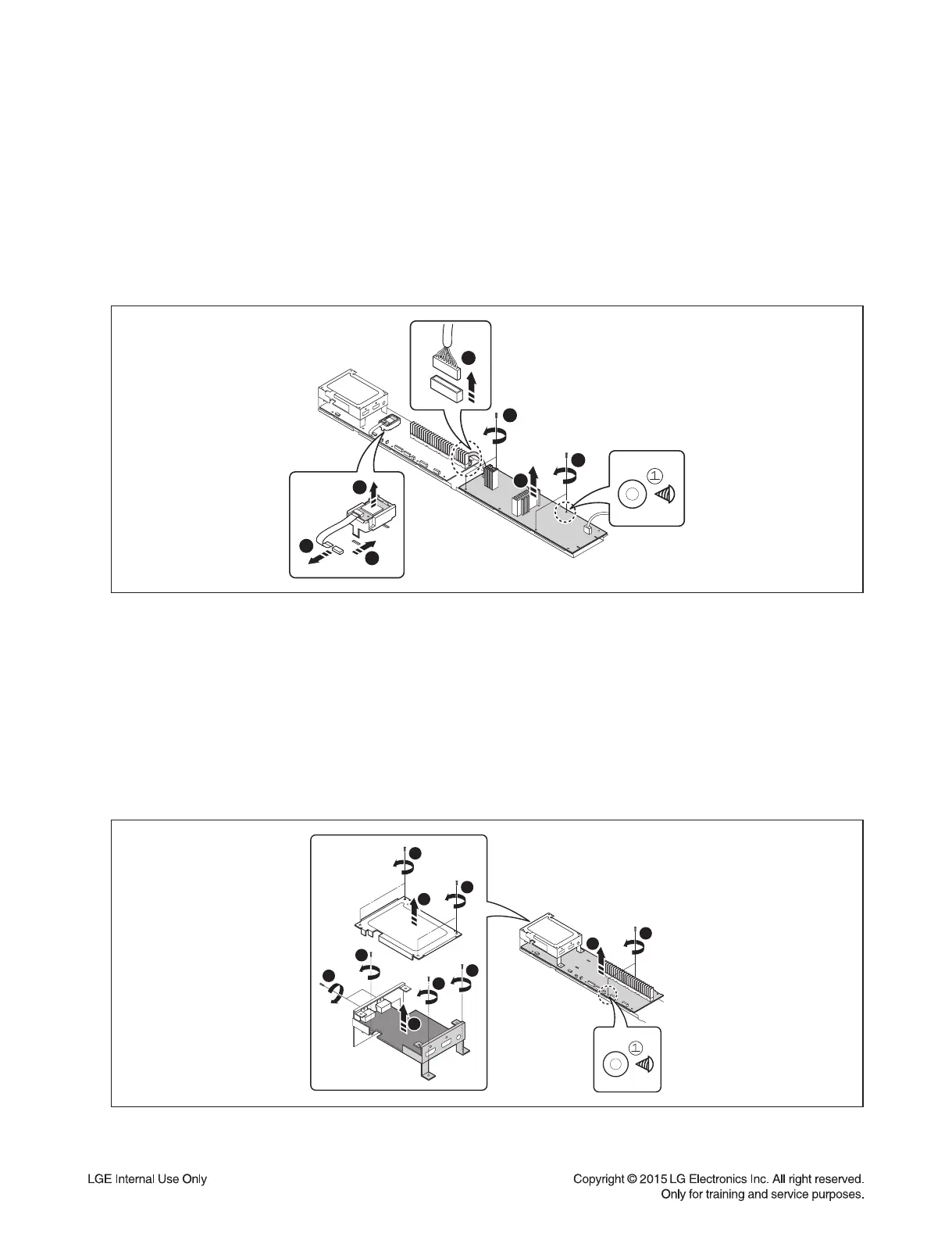

6. HDMI & Main Board
1) Remove the 4 screws securing the Chassis Cover.
2) Remove the Chassis Cover.
3) Remove the 5 screws securing the HDMI jack and the Chassis jack.
4) Remove the HDMI Board and the Chassis jack.
5) Remove the 2 (①) screws securing the Main Board.
6) Remove the Main Board.
5. SMPS Board
1) Disconnect the Harness cable from the Main Board.
2) Remove the 4 (①) screws securing the SMPS Board.
3) Remove the SMPS Board.
6. Bluetooth Module
1) Disconnect the FFC cable from the Main Board.
2) Remove the Bracket BT.
3) Remove the Bluetooth Module.
Fig. 6
Fig. 5
6
1
3
3
3
3
4
1
5
2
MAIN
MAIN
MAIN
HDMI
HDMI
HDMI
Chassis Cover
Chassis Cover
Chassis Cover
Chassis jack
1
2
3
2
2
3
1
MAIN
SMPS
SMPS
SMPS
Bluetooth Module
