LG Low Ambient Control Kit - IO Module - Other Function

Setting and Using Method
16 Low Ambient Control Kit

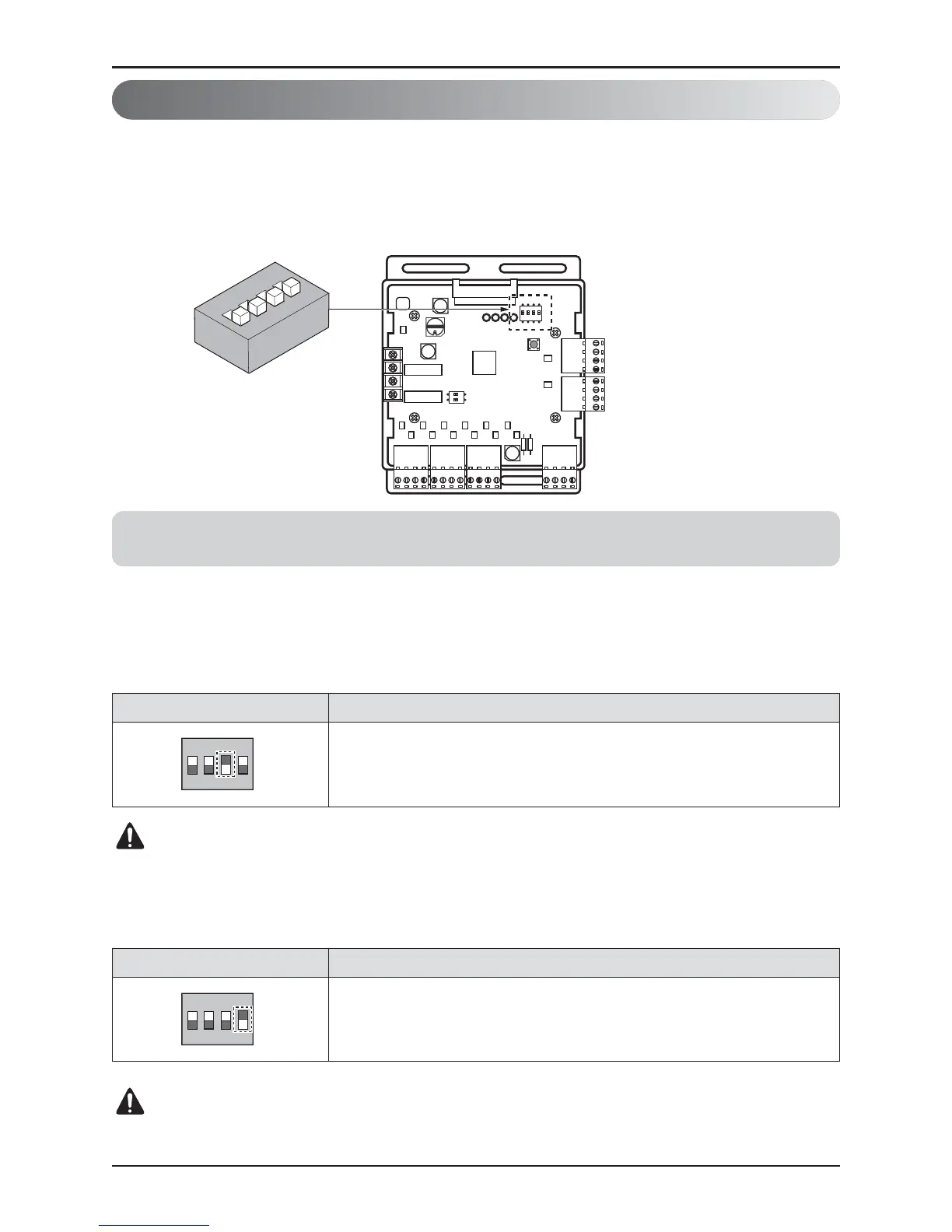

Setting of Dip Switch
Using ‘SW101’, select the option of control function as described below.
L1
ON
2
3
4
Notes
Default status is all off.
CAUTION
If the Dip SW is set , IO module System is operating preferentially than outdoor unit setting.
CAUTION
After change Dip SW setting, press reset switch to reflect the setting.
Position Function
ON
L1 2 3 4
ON : Enable Low Noise Operation
OFF : Disable Low Noise Operation
Position Function
ON
L1 2 3 4
ON : Activate Digital Output according to Indoor Unit status
OFF : Activate Digital Output according to Outdoor Unit status
• L4 : Set Operating status output
• L3 : Set Low Noise Operation
This is a function driving outdoor unit fan RPM to operate low speed for reducing fan noise
according to the input signal. To use this function, you should set Outdoor unit mode, Please
refer to PDB more detail.
4. IO Module – Other Function
