LG Low Ambient Control Kit - Wiring for Damper Actuator

Setting and Using Method
Installation manual 19
RD
RD
Damper
Actuator
AC/DC 24V
IO Module
Transformer
Main PCB Power Module
AC 220V
BR
BL
WH
BK
RD
Terminal
Block
GR
DC 0~10V
Control Signal

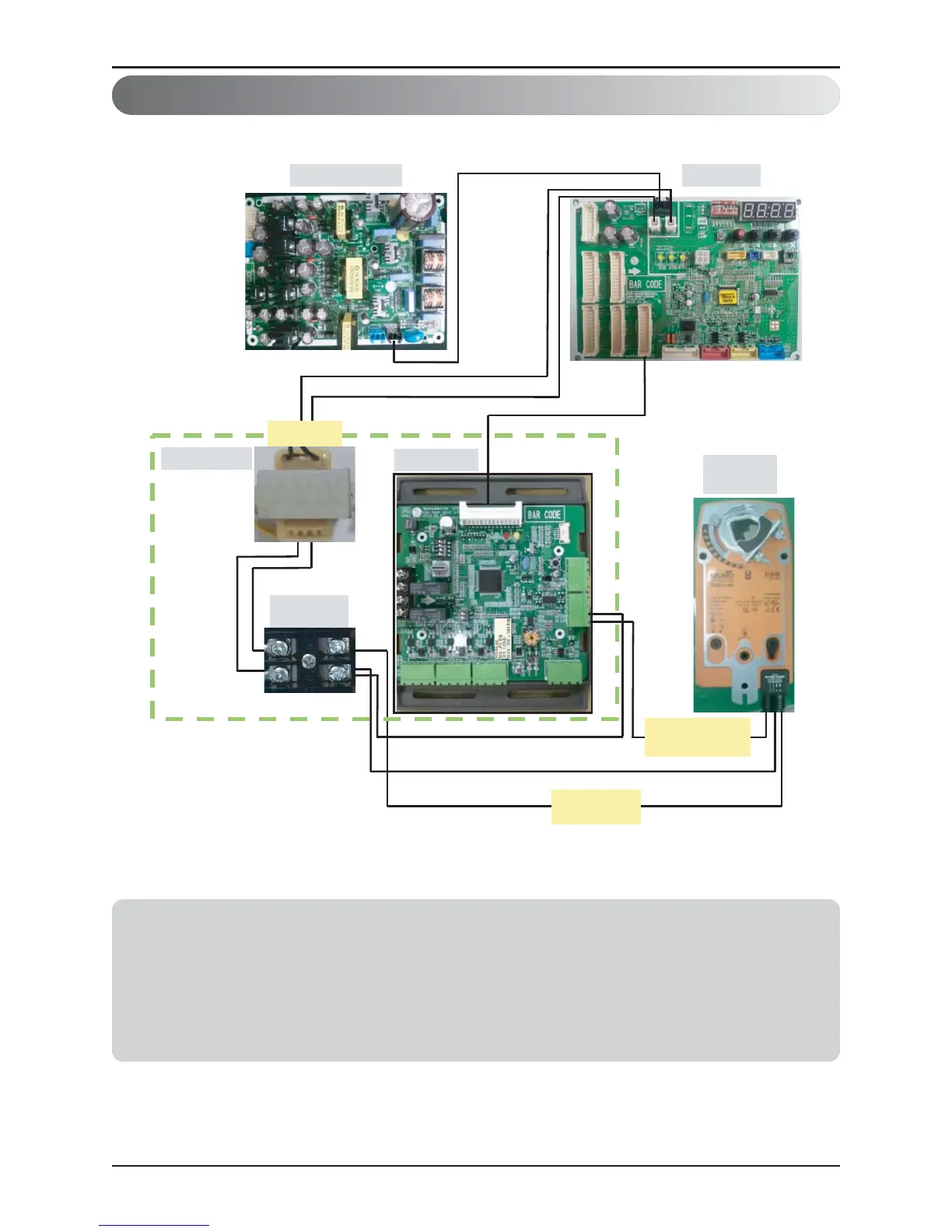

5. Wiring for Damper Actuator
Notes
Damper Actuator can accept only DC 24V power input.
Do not input AC power. Otherwise it will cause a serious damage.
The IO Module can control maximum three actuators.
Case of one valve, the slave signal connector must not use.
The power (AC/DC 24V) and signal(DC 0~10V) line is recommended by AWG22(1/32 in, (0.644 mm),
0.016 Ω/ft (0.053 Ω/m)).
1 Unit
❈ BL : Blue, BR : Brown, RD : Red, BK : Black, WH : White, GR : Green
