- 11 -

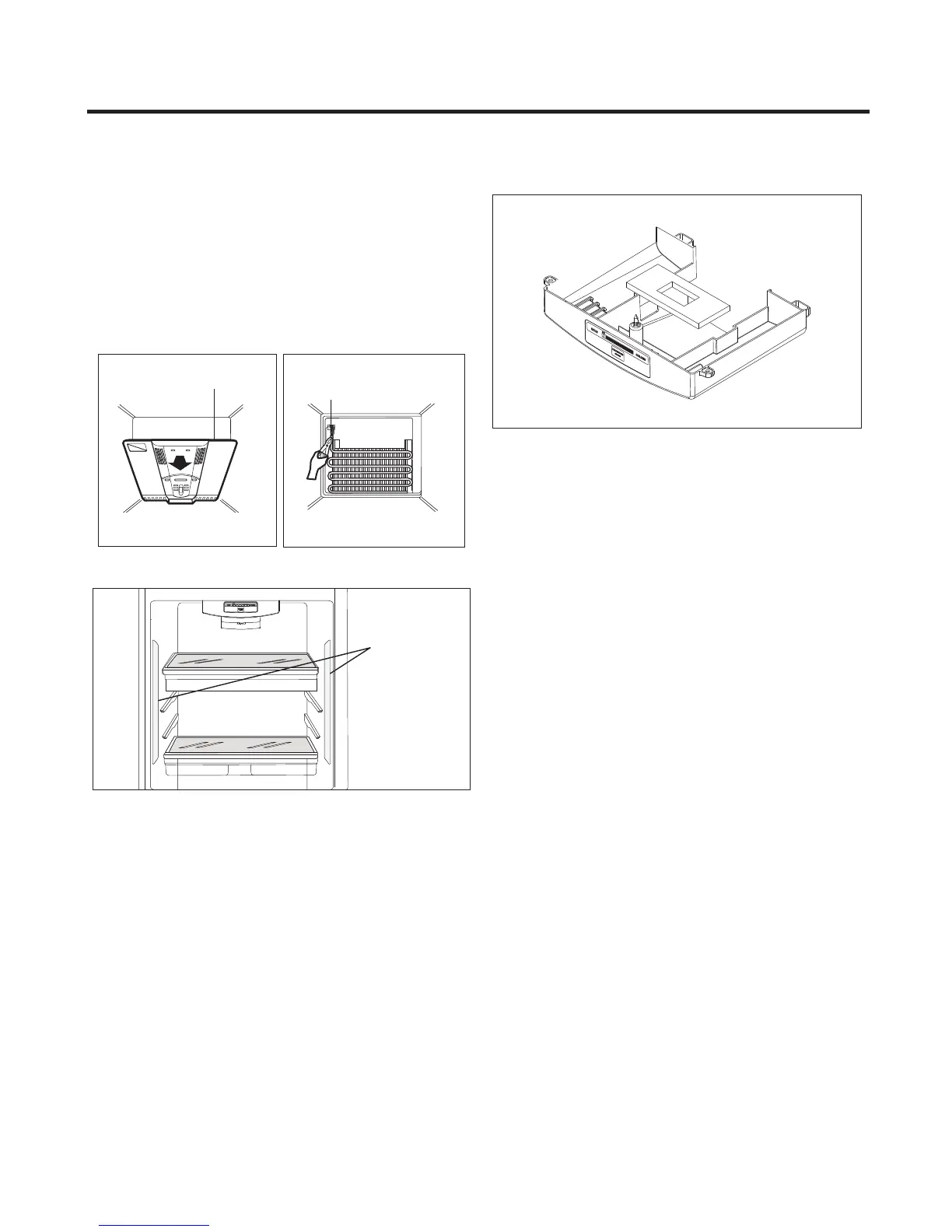

Fig. 44
3-12 CONTROL BOX-REFRIGERATOR
1. First, remove all shelves in the refrigerator. Then remove the
Refrigerator Control Box by loosening 2 screws.
2. Remove the Refrigerator Control Box by pulling it
downward.
3. Disconnect the lead wire on the left position.
Fig. 43
LED
3-10 DEFROST CONTROL ASSEMBLY
Defrost Control assembly consists of Defrost Sensor and
FUSE–M.
Defrost sensor functions to defrost automatically. It is attached
to metal side of the Evaporator and senses Temperature.
At the temperature of 162°F(72°C), it stops the emission of
heat from the Heater.
Fuse-M is a safety device for preventing over-heating of the
Heater when defrosting.
1. Pull out the grille assembly. (Figure 41).
2. Separate the connector of the Defrost Control assembly and
replace the Defrost Control assembly after cutting the Tie
Wrap. (Figure 42)
3-11 LIGHTS
3-11-1 Freezer Compartment Light(Top)
1. Unplug the power cord from the outlet.
2. Put a flat screwdriver into service hole and remove the
cover of Freezer light.
3. Remove the LED assembly from connector.
4. Replace the LED assembly.
5. Assemble in reverse order of disassembly.
3-11-2 Refrigerator Compartment Light(Side)
1. Unplug the power cord from the outlet.
2. Put a flat screwdriver into service hole and remove the
cover of Refrigerator light.
3. Remove the LED assembly from the connector.
4. Replace the LED assembly.
5. Assemble in reverse order of disassembly.
GRILLE ASSEMBLY
DEFROST-CONTROL
ASSEMBLY
Fig. 42Fig. 41

LG LTCS20220W Specifications

General

Child lock	-
Door hinge	Right
Product color	White
Housing material	Metal, Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Noise level	- dB
Total net capacity	572 L
Total gross capacity	- L
Fridge net capacity	416 L
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	156 L
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	406 kWh

Weight and Dimensions

Depth	838.2 mm
Width	736.6 mm
Height	1676.4 mm
Weight	91600 g
