3. DISASSEMBLY
Middle
Hinge Bracket
Fig. 4
Fig. 5
Fig. 6
TOOLS NEEDED

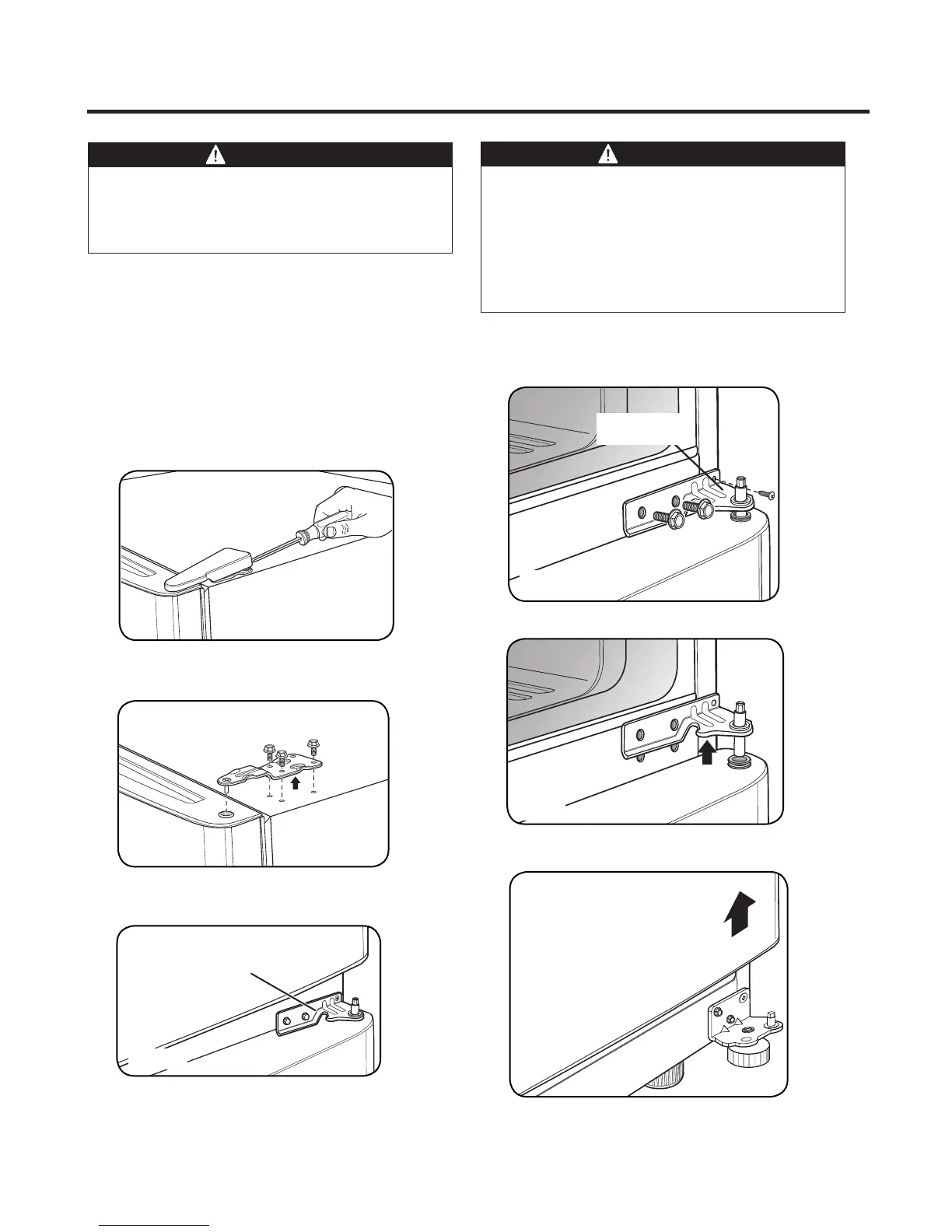

REMOVING THE FREEZER DOOR
REMOVING THE REFRIGERATOR DOOR
Fig. 1
Fig. 2
Hinge Pin
Middle Hinge Bracket
Fig. 3
• 10mm or 13/32 -inch socket wrench
• (with 2-inch extension for bottom door hinge)
• No. 2 Phillips head screwdriver
• Flat-head screwdriver for prying
• Adjustable wrench
Remove the top-hinge cover by gently prying it with a flat head
screwdriver.
Loosen and remove the two bolts using a phillips head
screwdriver.
Remove the middle hinge bracket.
Carefully lift up the door. Place the door on a non scratching
surface.
Using either a 10 mm or 13/32 in. socket wrench, remove the
three bolts and lift off the top hinge. Set parts aside.
Carefully lift up the freezer door. Place the door on a non-
scratching surface.
WARNING
WARNING
Excessive Weight Hazard:
Use two or more people to remove and install the
refrigerator doors. Failure to do so can result in back or
other injury.
Electrical Shock Hazard
• Disconnect the electrical supply to the refrigerator
before installing. Failure to do so could result in
serious injury or death.
• Do not put hands, feet or other objects into the air
vents, base grille, or bottom of the refrigerator. You
may be injured or receive an electrical shock.

LG LTCS20220W Specifications

General

Child lock	-
Door hinge	Right
Product color	White
Housing material	Metal, Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Noise level	- dB
Total net capacity	572 L
Total gross capacity	- L
Fridge net capacity	416 L
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	156 L
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	406 kWh

Weight and Dimensions

Depth	838.2 mm
Width	736.6 mm
Height	1676.4 mm
Weight	91600 g
