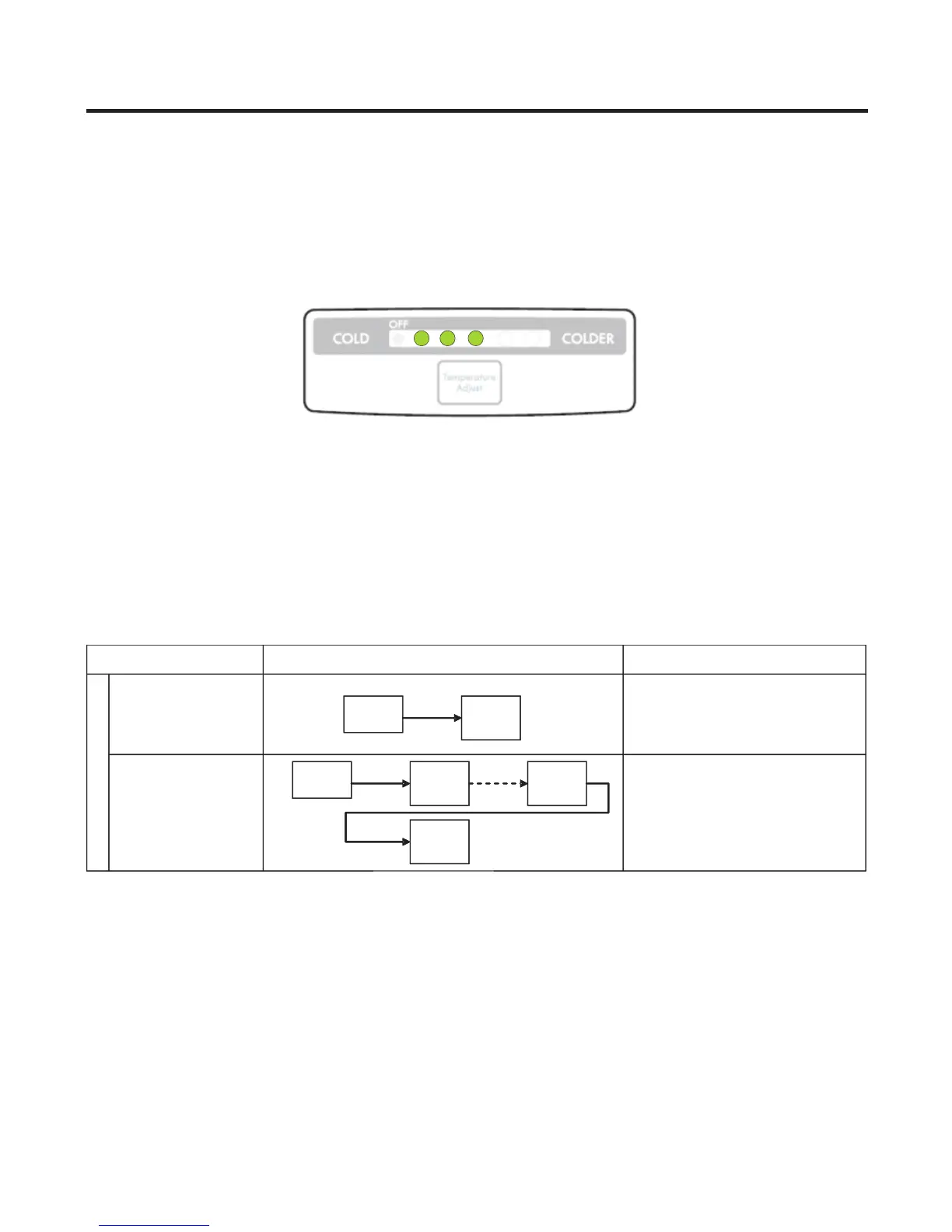

8-1 FUNCTION
8-1-1 Function
1. When the appliance is plugged in, is set to middle for the refrigerator. You can adjust the Refrigerator control temperature
by pressing the TEMPERATURE ADJUST button.
2. When the power is initially applied or restored after a power failure, it is set at the last control temperature selected before
8-1-2 Defrost Cycle
Defrosting starts each time the accumulated COMPRESSOR running time is between 7 and 50 hours. This time is
determinate by how long the doors are opened.
For initial power on or for restoring power, defrosting starts when the compressor running time reaches 4 hours.
Defrosting stops if the sensor temperature reaches 50 °F (10 °C) or more. If the sensor doesn’t reach the 50 °F (10°C) in 1
hour, the defrost mode is malfunctioning. (Refer to the defect diagnosis function).
Defrosting won’t function if the sensor if defective (wires are cut or short circuited)
8-1-3 Electrical Parts Operation in Sequence.
Electrical parts such as COMP, defrost heater, freezer FAN, etc. Operate in the following order to prevent noise and parts
damage. Several parts are started at the same time at initial power on and are turned off together when TEST is completed.
OPERATING ORDER REMARKS
INITIAL POWER ON
Temperature of defrost
sensor is 113 °F (45°C)
or more .
Temperature of defrost
sensor is lower than
113 °F (45°C)
POWER
ON
COMP,
F-FAN
ON
0.5
Se
c
POWER
ON
Def-
Heater
ON
Def-
Heater
OFF
0.5
Sec
10 Sec
0.5 Sec
COMP,
F-FAN
ON
OPERATING ORDER REMARKS
INITIAL POWER ON
Temperature of defrost
sensor is 113 °F (45°C)
or
Temperature of defrost
sensor is lower than
113 °F (45°C .
POWER
ON
COMP,
F-FAN
ON
0.5
Se
c
POWER
ON
Def-
Heater
ON
Def-
Heater
OFF
0.5
Sec
10 Sec
0.5 Sec
COMP,
F-FAN
ON
the power initially applied or restored a power failure.
8. CIRCUIT OF MICOM
DESCRIPTION OF FUNCTION & CIRCUIT OF MICOM

LG LTCS20220W Specifications

General

Child lock	-
Door hinge	Right
Product color	White
Housing material	Metal, Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Noise level	- dB
Total net capacity	572 L
Total gross capacity	- L
Fridge net capacity	416 L
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	156 L
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	406 kWh

Weight and Dimensions

Depth	838.2 mm
Width	736.6 mm
Height	1676.4 mm
Weight	91600 g
