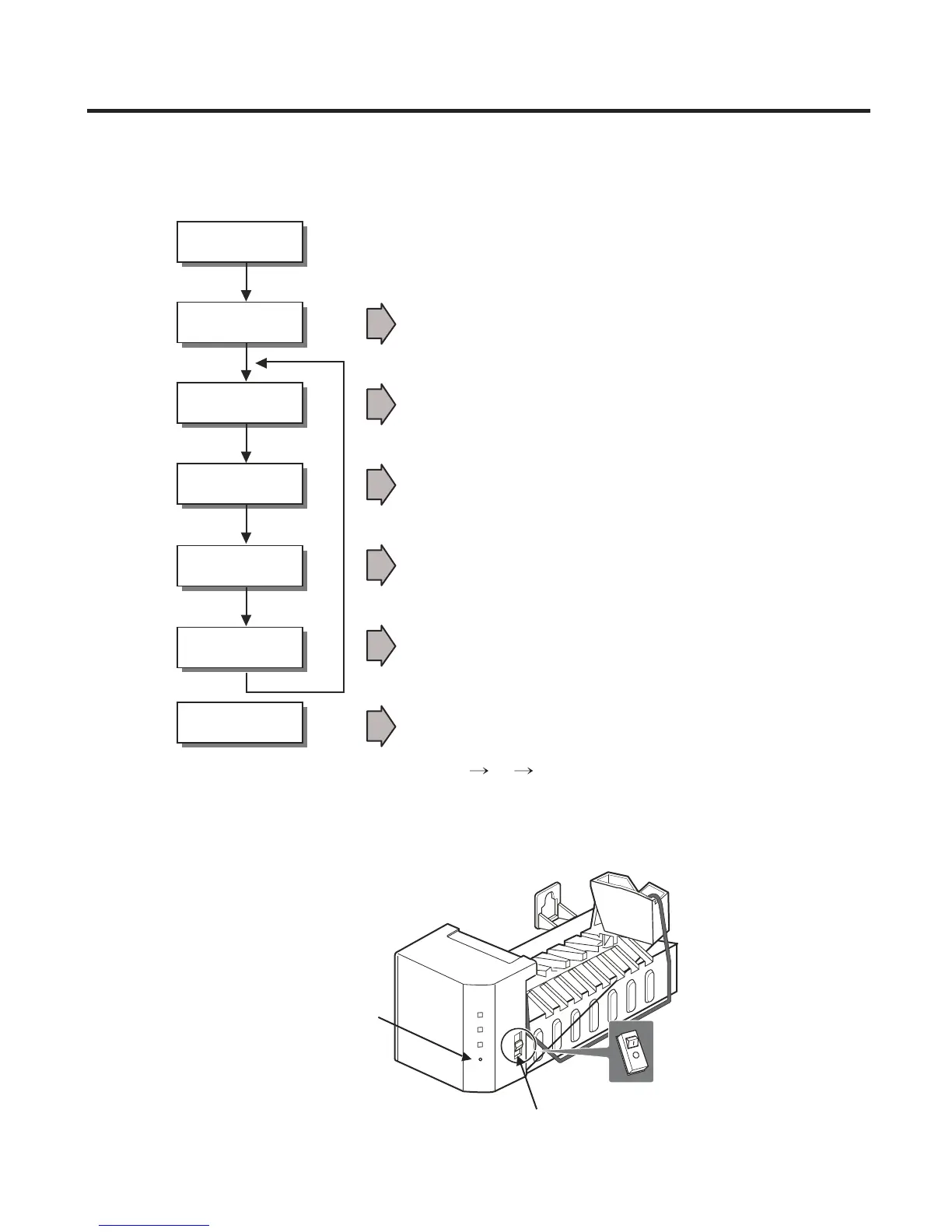

7-1 OPERATION PRINCIPLE
7-1-1 Operation Principle of Icemaker
1. Turning the Icemaker stop switch off (O) stops the icemaking function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.
Power (On/Off) Switch
Water amount
control button
Start Position
Icemaking
Mode
Harvest
Mode
Park Position
Fill
•
Test Mode
Waits until water becomes cold after starting the
Icemaking operation.
• Runs MOTOR to drop ice from the tray into the ICE BIN.
• Performs Icemaking Mode after supplying water by operating
the SOLENOID in ICE VALVE.
• To operate LINE and SERVICE, insert pin at hole
. located at front, press internal button and hold 3 seconds
Harvest Fill Icemaking.
• With the detect lever, checks if the ICE BIN is full.
Power On
• Adjusts Ejector to Start Position whit power on.
- 20 -
7. ICE MAKER
OPERATION PRINCIPLE AND REPAIR METHOD OF ICEMAKER
The icemaking will run through 3 stages:

LG LTCS20220W Specifications

General

Child lock	-
Door hinge	Right
Product color	White
Housing material	Metal, Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Noise level	- dB
Total net capacity	572 L
Total gross capacity	- L
Fridge net capacity	416 L
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	156 L
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	406 kWh

Weight and Dimensions

Depth	838.2 mm
Width	736.6 mm
Height	1676.4 mm
Weight	91600 g
