LG LTCS20220W User Manual

- 6 -

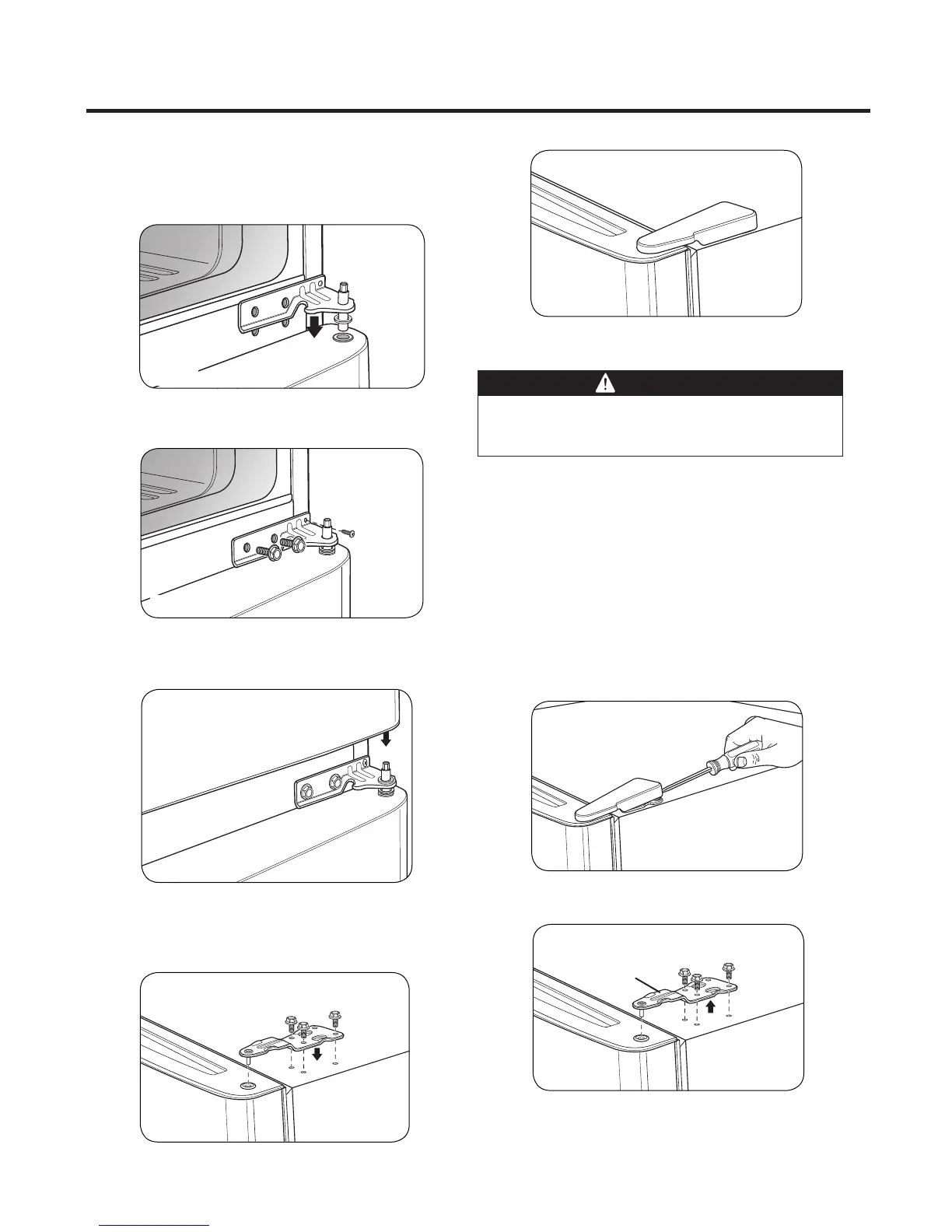

REPLACING THE REFRIGERATOR DOOR
REPLACING THE FREEZER DOOR
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Lower the door onto the bottom hinge pin.
Place the hinge pin of the middle hinge bracket inside of the
hinge pin insert on top of the door. Hold the door in place and
line the middle hinge bracket with the holes in the refrigerator
housing.
Use the two bolts and phillips screwdriver to refasten the
middle hinge bracket and door to the refrigerator housing.
Set the freezer door onto the Middle Hinge pin.
Place the upper hinge pin in the top of the freezer
door and line up the upper hinge with the holes on
top of the refrigerator. Use the three bolts to
replace the hinge.
Carefully force-fit the top hinge cover back into place over the
hinge.
Fig. 11
REVERSING DOORS
CAUTION
Remove food and any Adjustable Shelves or Door
Bins from doors. Failure to do so could result in
serious injury.
TOOLS NEEDED
• 10mm or 13/32 inch socket wrench (with 2-inch
extension for bottom door hinge)
• No. 2 Phillips head screwdriver
• 1/4 inch socket wrench
• Flat-head screwdriver for prying
• Adjustable wrench
• 3/32 - inch hex wrench
REVERSING THE FREEZER DOOR
Gently pry off the top hinge cover with a flat head
screwdriver and remove.
Using 10mm or 13/32 inch socket wrench, remove the three
bolts and lift off the top hinge. Set parts aside.
Fig. 17
Top Hinge
Fig. 18

LG LTCS20220W Specifications

General

Child lock	-
Door hinge	Right
Product color	White
Housing material	Metal, Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Noise level	- dB
Total net capacity	572 L
Total gross capacity	- L
Fridge net capacity	416 L
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	156 L
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	406 kWh

Weight and Dimensions

Depth	838.2 mm
Width	736.6 mm
Height	1676.4 mm
Weight	91600 g
