After changing the doors, make sure that the
corners of the Door Gaskets are not folded over. To
ensure a good seal, apply a small amount of silicon
grease on the corners of gaskets.
CLOSING AND ALIGNING THE DOORS
To avoid vibration, the unit must be leveled. If necessary,
adjust the Leveling Legs to compensate for unevenness of the
floor. The front should be slightly higher than the rear to aid in
door closing.
Your refrigerator has three front leveling screws, one on the
right and one on the left. If your refrigerator seems unstable or
if you would like the doors to close more easily, simply adjust
the inclination of the refrigerator by following the instructions
below:
NOTE: Third leveling screw is used for protection of hinge
lower.
1. Plug the refrigerator into a 3 prong grounded outlet. Move
the refrigerator into its final position.
2. Use a flat head screwdriver to adjust the leveling screws
(see Figure A), turning clockwise to raise the side of the
refrigerator and counter-clockwise to lower it. It may take
several turns to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws. This will
make it easier to adjust the screws.
3. Open both doors again and check to make sure that they
close easily. If not, tilt the refrigerator slightly more to the rear
by turning both Leveling Screws clockwise. It may take several
more turns, and you should turn both Leveling Screws the
same times.

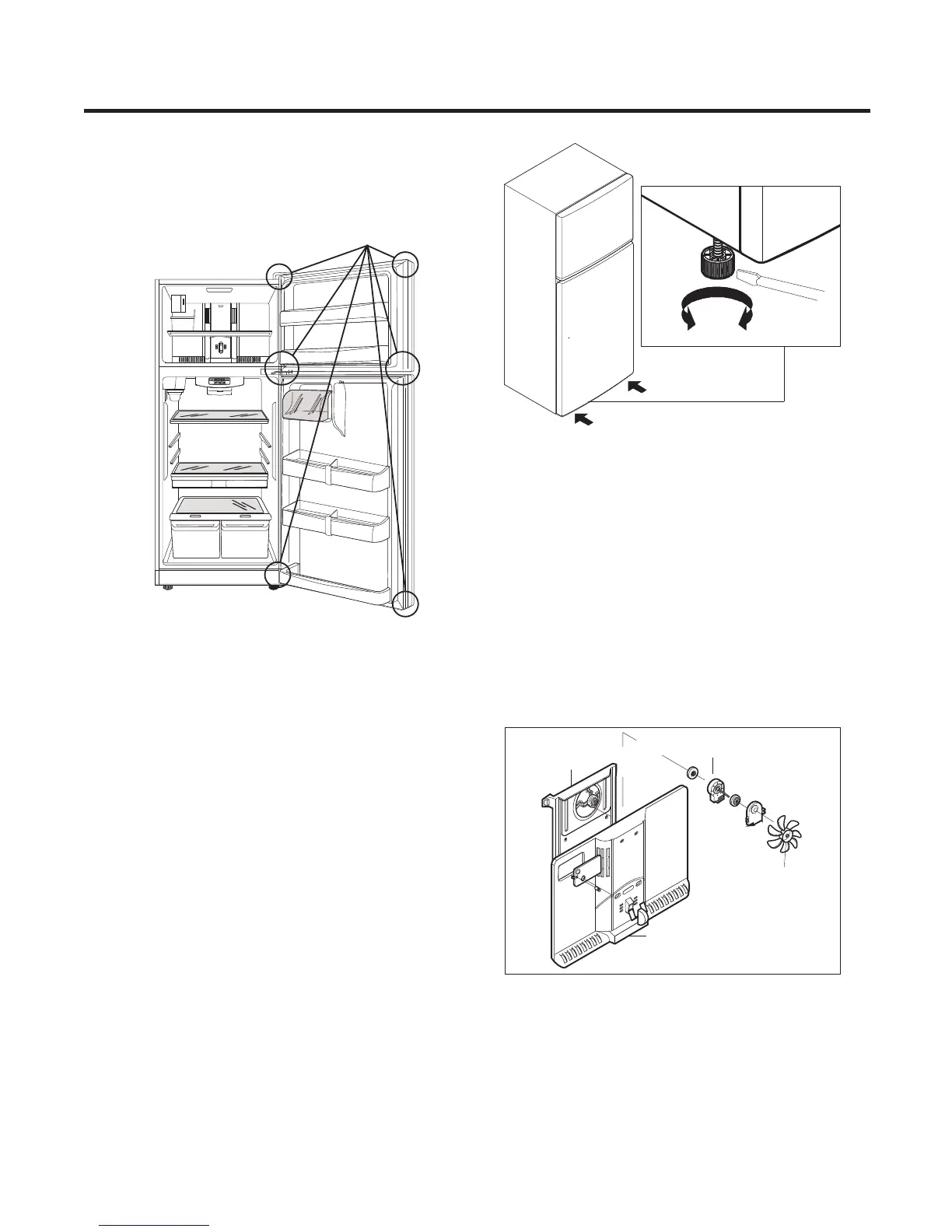

Corners
Fig. 53
DOOR ALIGNMENT
If the space between your doors is uneven, follow the
instructions below to align the doors.
1. Gently pry off the refrigerator door Top Hinge Cover with a
flat head screwdriver and remove. Loosen the Top Hinge Bolts
using a 10mm or 13/32’’Socket wrench or open-end wrench.
2. Have a second person hold the refrigerator door in its
proper position.
3. Replace the Top Hinge Cover.
3-9 FAN AND FAN MOTOR
1. Remove the freezer shelf. (If your refrigerator has an
icemaker, unplug and remove the icemaker first).
2. Remove the screw of the grille fan.
3. Remove the grille by pulling it out.
4. Remove the Fan Motor assembly by loosening 4 screws
and disassemble the shroud.
5. Pull out the fan and separate the Fan Motor and Bracket.
SHROUD
GRILLE
FAN MOTOR
Fig. 40
FAN
BRACKET

LG LTCS20220W Specifications

General

Child lock	-
Door hinge	Right
Product color	White
Housing material	Metal, Stainless steel
Reversible doors	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Noise level	- dB
Total net capacity	572 L
Total gross capacity	- L
Fridge net capacity	416 L
Fridge number of shelves/baskets	2
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	156 L
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	406 kWh

Weight and Dimensions

Depth	838.2 mm
Width	736.6 mm
Height	1676.4 mm
Weight	91600 g
