- 9 -
With a flat-head screwdriver, carefully pry off and
remove the cover over the screw holes on the left side of
refrigerator housing.
Remove the outer lower Decorative Screw from the
housing at the area between the freezer and refrigerator
doors. (You will need this hole for the Middle Hinge Bracket).
Flip the Middle Hinge Bracket, (flange will now be on top)
position it on left side of the refrigerator and reattach with two
bolts and a Phillips screwdriver. Place the refrigerator door
down over the pin on the bottom hinge.
Place the washer between the refrigerator door and
middle hinge and re-attach Hinge Pin to Hinge Bracket with a
¼” socket wrench.
NOTE: Bracket has been flipped, but Hinge Pin stays in the
same orientation with its hexagonal end facing upward.
Insert the Decorative Screw into the outer hole on the right
side of the housing. Attach cover on the right side. Cover is
force-fitted.

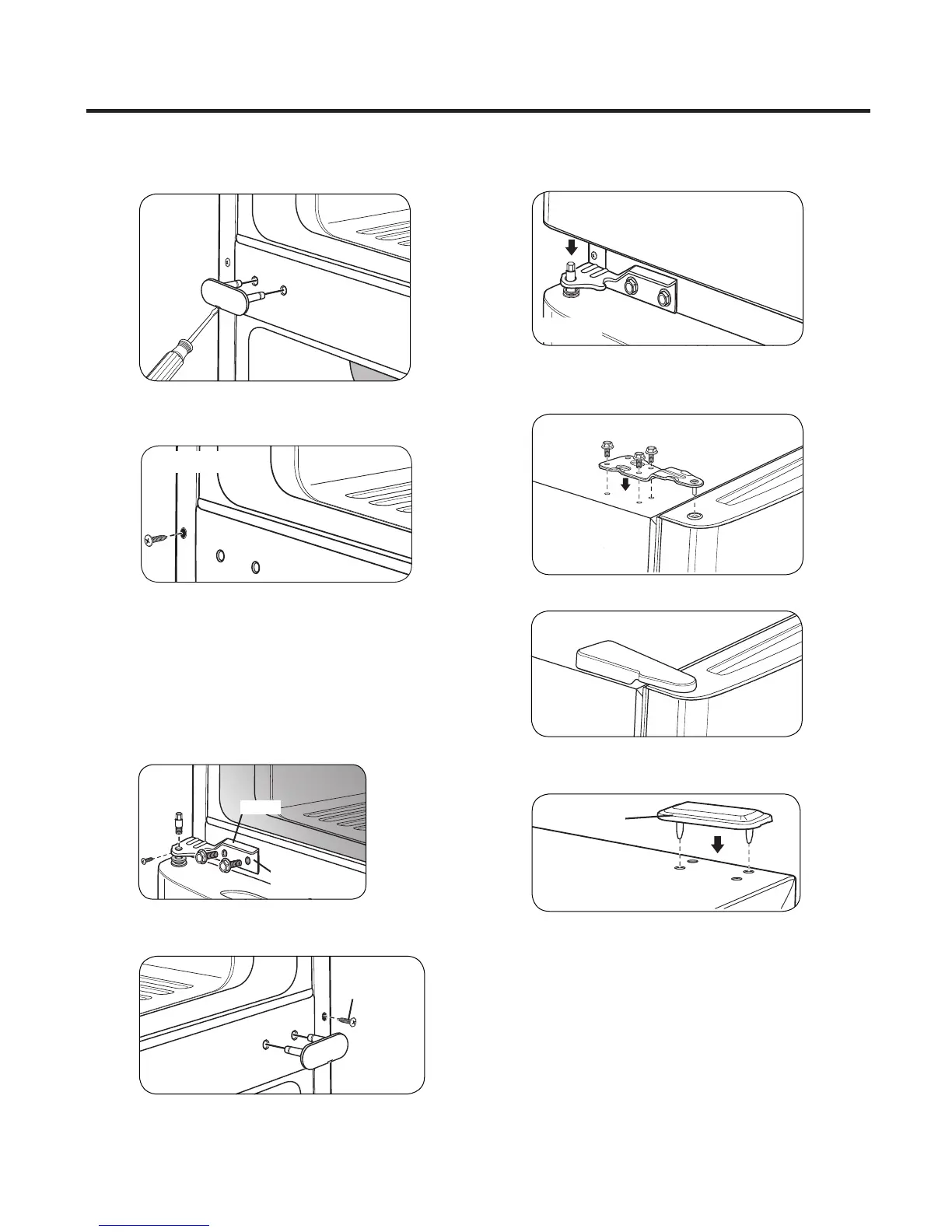

Fig. 39
Fig. 40
Middle Hinge
Bracket
Flange
Fig. 41
REATTACHING THE DOORS
Place the freezer door down over the Hinge Pin on the Middle
Hinge Pin Bracket.
Place the Upper Hinge Pin on top of the freezer door and line
up the Upper Hinge with holes on top of the refrigerator. Use
the three bolts to replace the Hinge.
Tighten the bolts. Force-fit Top Hinge Cover over Top Hinge.
Replace cover on the top left side of the refrigerator to the right
top to cover the holes. Cover is also force-fitted.
Decorative
Screw
Fig. 42
Fig. 43
Fig. 44
Fig. 45
Cover (on top of
refrigerator)
Fig. 46
To Next Page
