LG LTCS20220W User Manual

- 8 -
Loosen and remove the two bolts and use the Phillips head
screwdriver to remove the Middle Hinge Bracket from the
refrigerator housing. Set parts aside.
Remove the washer from the Bottom Hinge Pin.
Using a ¼” socket wrench, loosen and remove the Hinge Pin
from the Bottom Hinge. Reattach the Hinge Pin to the opposite
side of the hinge.
NOTE: This is easier to do while the hinge is still attached.
Using a 13/32’’ socket wrench with a 2-Inch extension and
screwdriver, loosen the two bolts and one screw, and remove
the Bottom Hinge from right side of the housing.

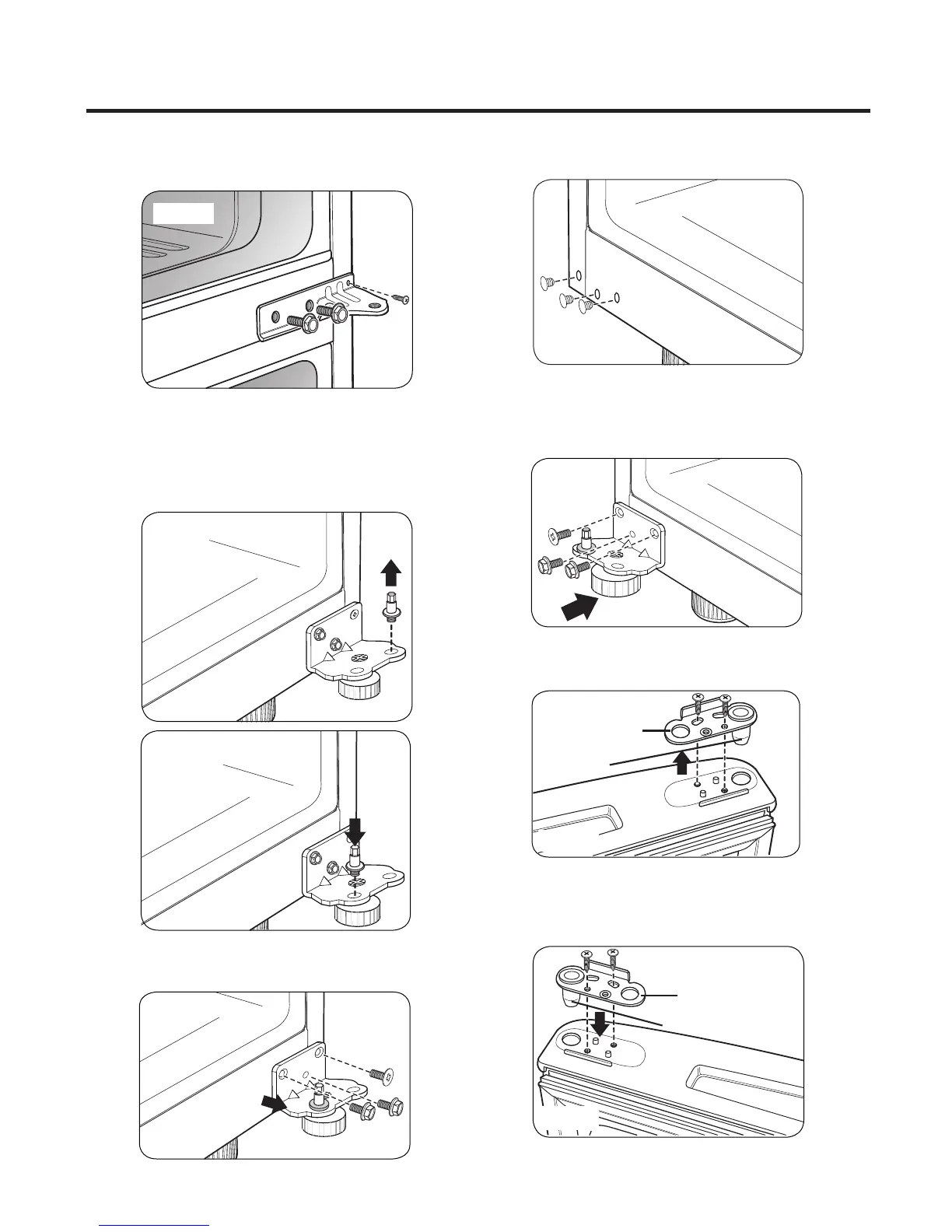

Fig. 31
Fig. 33
Fig. 32
Remove the Decorative Caps on the bottom of the
refrigerator housing. You will need these holes for the Bottom
Hinge.
Move the Bottom Hinge to the left side of the housing,keeping
the same orientation, and reattach with the two bolts and one
screw. The flat screw must be placed on the exterior side of
the hinge. Move the Decorative Bolt to the hole on the lower
right side of the housing.
Turn the refrigerator door upside down on a nonscratching
surface. Loosen the two screws to remove the Bottom Hinge
Pin Bracket with the Hinge Pin Insert.
Take out the Hinge Pin Insert and move the Bracket to the
other side of the door, keeping the same orientation.
Place the Hinge Pin Insert into the left side of the bracket.
Tighten the Hinge Pin Bracket to the door.
Fig. 34
Fig. 35
Fig. 36
Hinge
Pin Bracket
Hinge Pin
Insert
Fig. 37
Hinge
Pin Bracket
Hinge Pin Insert
Fig. 38
