LG MCD112 - Key-L Schematic Diagram; Key-R Schematic Diagram

3-35 3-36

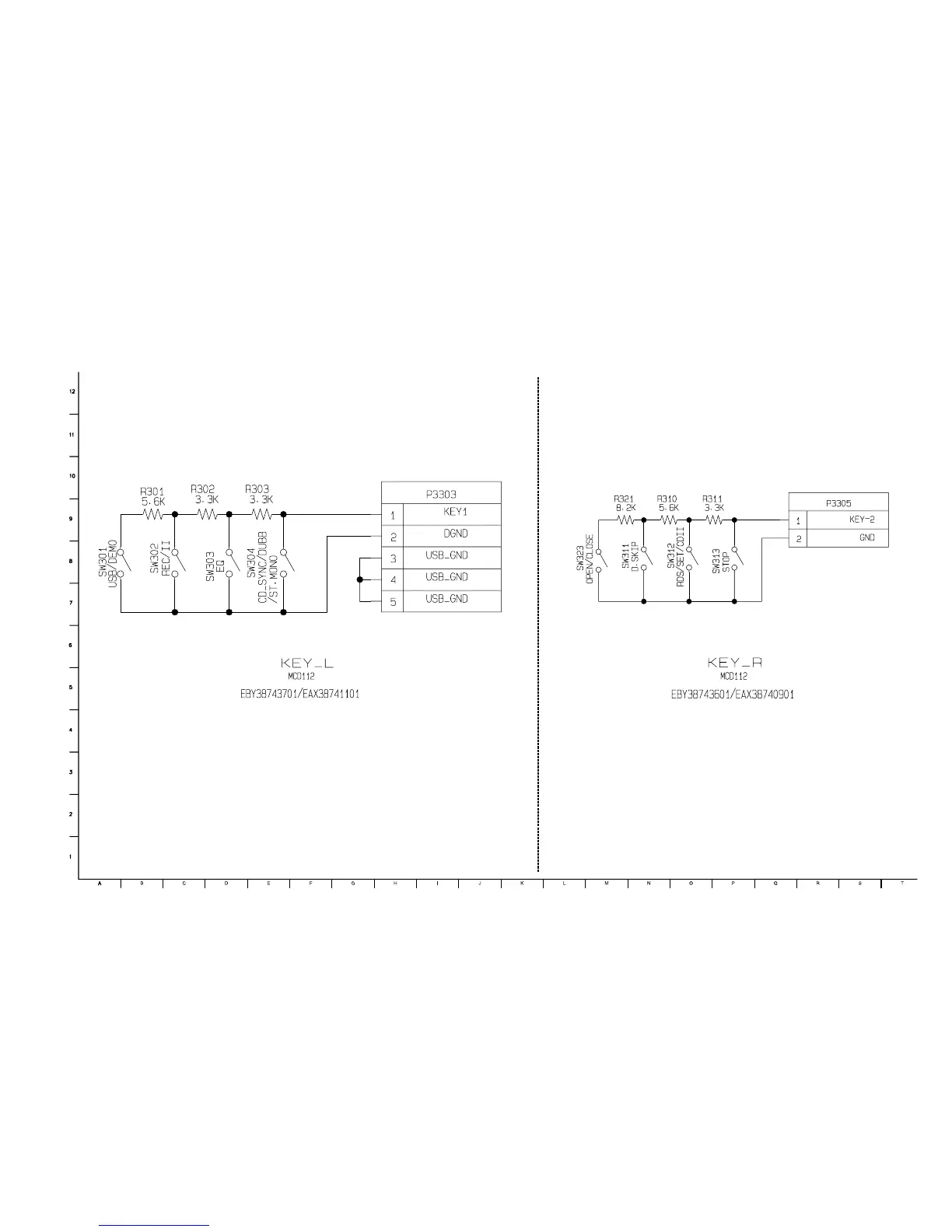

6. KEY-L SCHEMATIC DIAGRAM 7. KEY-R SCHEMATIC DIAGRAM
