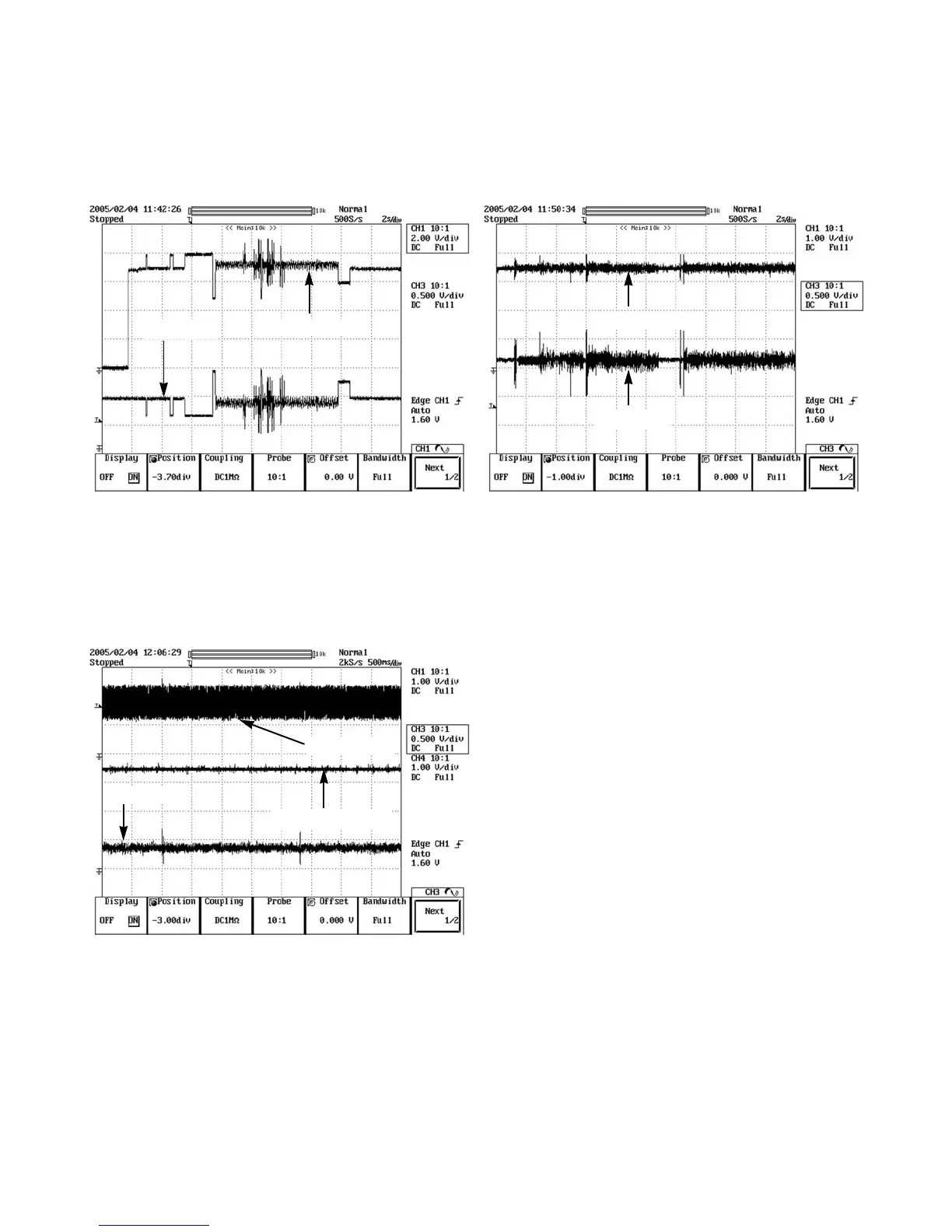

#4.SPINDLE DRIVE AND MOTOR WAVEFORM
(IC802 PIN6, 11) when TOC reading
PIN6 : SPIN
PIN11 : SP+
#5.TRACK DRIVE AND MOTOR WAVEFORM
(IC802 PIN22, IC802 PIN17) during normal play
#6.RF, FOCUS AND TRACKING ERROR WAVEFORM
(IC801 PIN2, 10, 16) during normal play
PIN2 : RFOUT
PIN 16 : TE
PIN10 : RFMON(FE)
PIN22 : TAO
PIN17 : TA+
