LG MULTI F MAX Engineering Manual

Factory Supplied Parts and Materials
DUCT (LOW STATIC) INDOOR UNITS
Factory Supplied Parts
Part Quantity Image Part Quantity Image
Drain Hose One (1) Zip Ties Four (4)
Metal Clamp Two (2)
Washers for
Hanging
Brackets
Eight (8)
Insulation for
Fittings
One (1) Set
Simple
Controller
with Mode
Selection
(AKB72955816)
1
One (1)
Factory Supplied Materials
• Owner’s Manual
• Installation Manual
Required Tools
• Level
• Screwdriver
• Electric drill
• Hole core drill
• Flaring tool set
• Torque wrenches
• Hexagonal wrench
• Gas-leak detector
• Thermometer

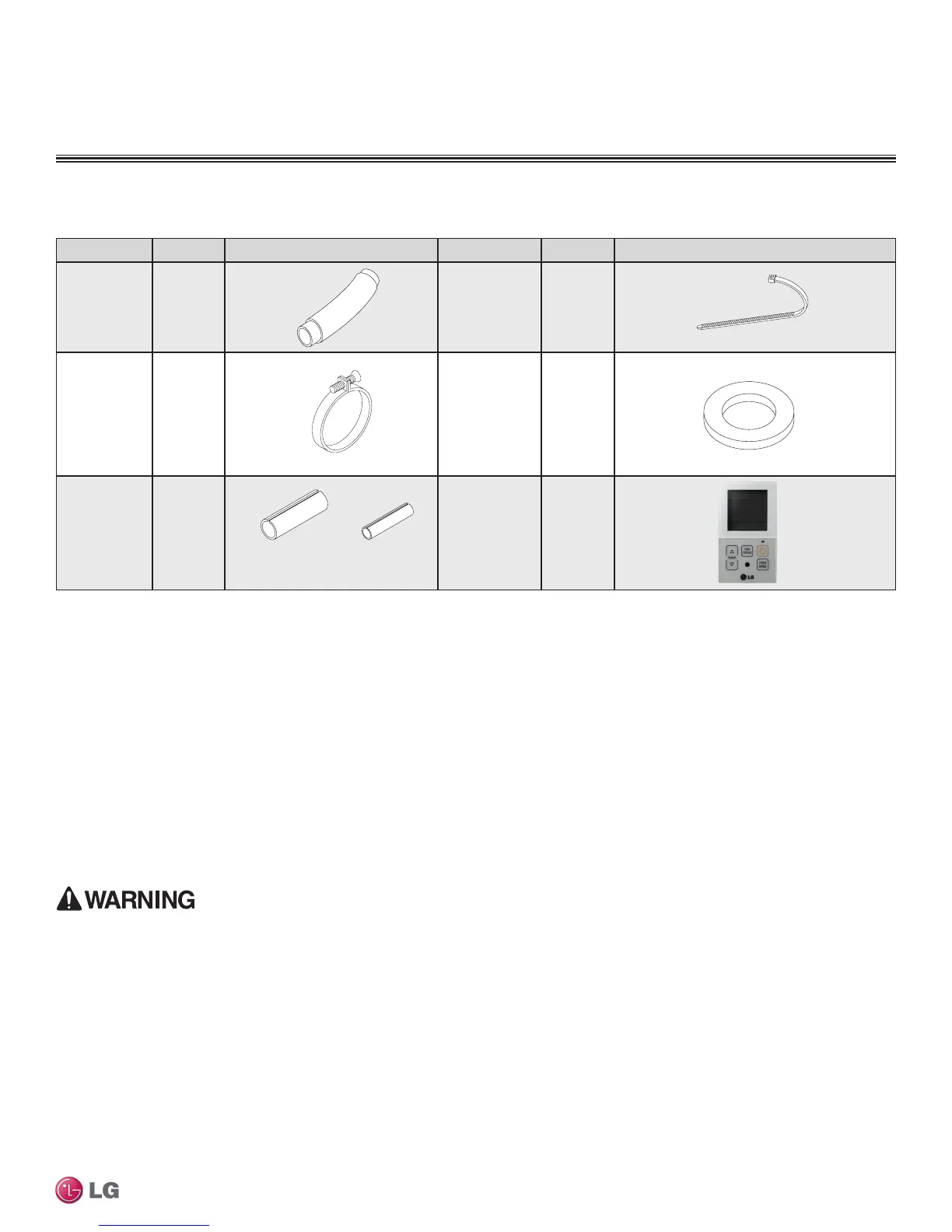

Table 51: Parts Table.
For Vapor Piping For Liquid Piping
1
Simple Mode Controllers for the ceiling-concealed duct (low static) indoor units are also referenced by Model No. PQRCVCL0QW.
• Read all instructions before installing the product.
• Installation work must be performed by authorized personnel and in accordance with the national wiring standards and all local
codes.
DUCT (LOW STATIC) | 101
