LG MULTI F MAX

Wiring Diagram

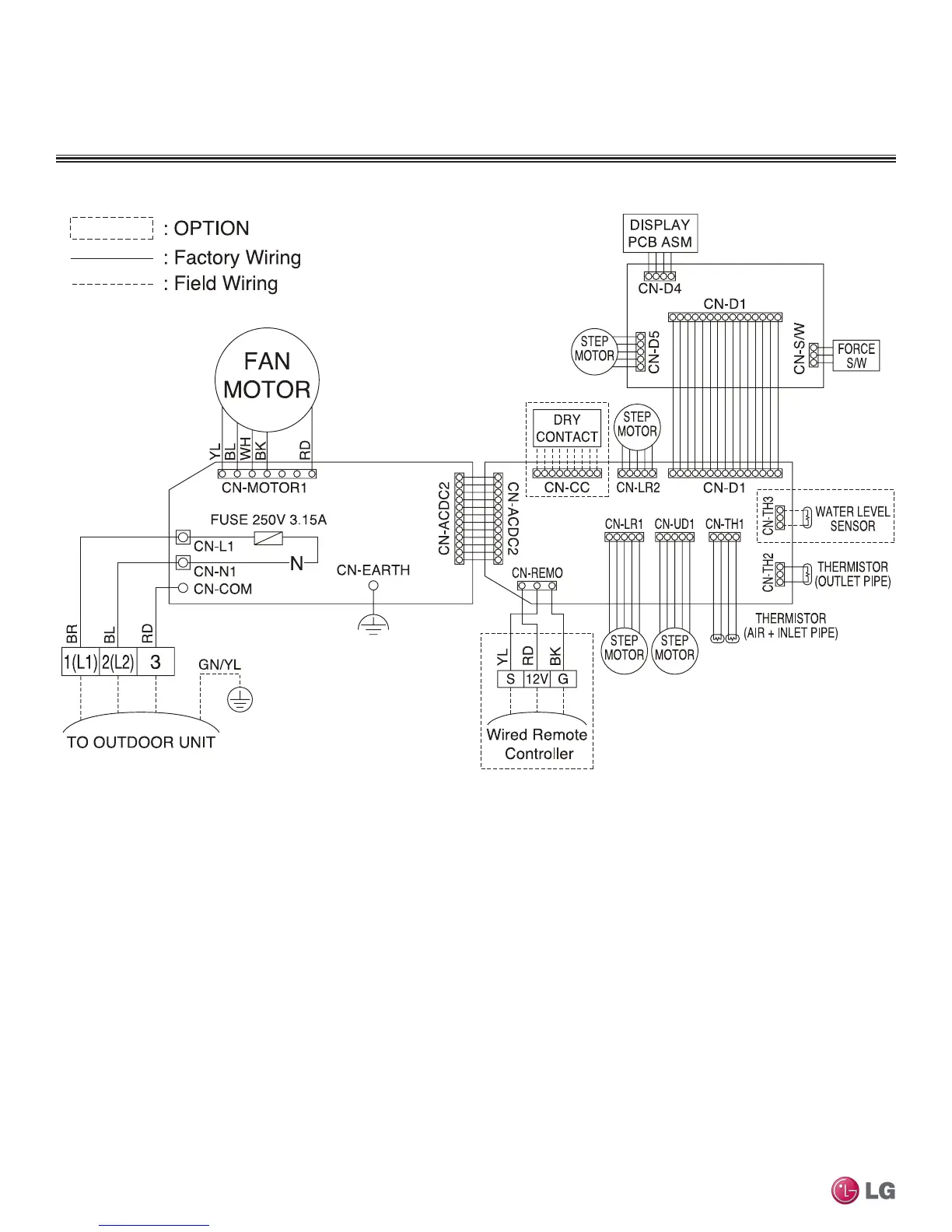

Figure 47: Multi F Art Cool Gallery Indoor Units Wiring Diagram.
ART COOL GALLERY INDOOR UNITS
