60 | STD. WALL-MOUNTED
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F
Dimensions
STANDARD WALL-MOUNTED INDOOR UNITS

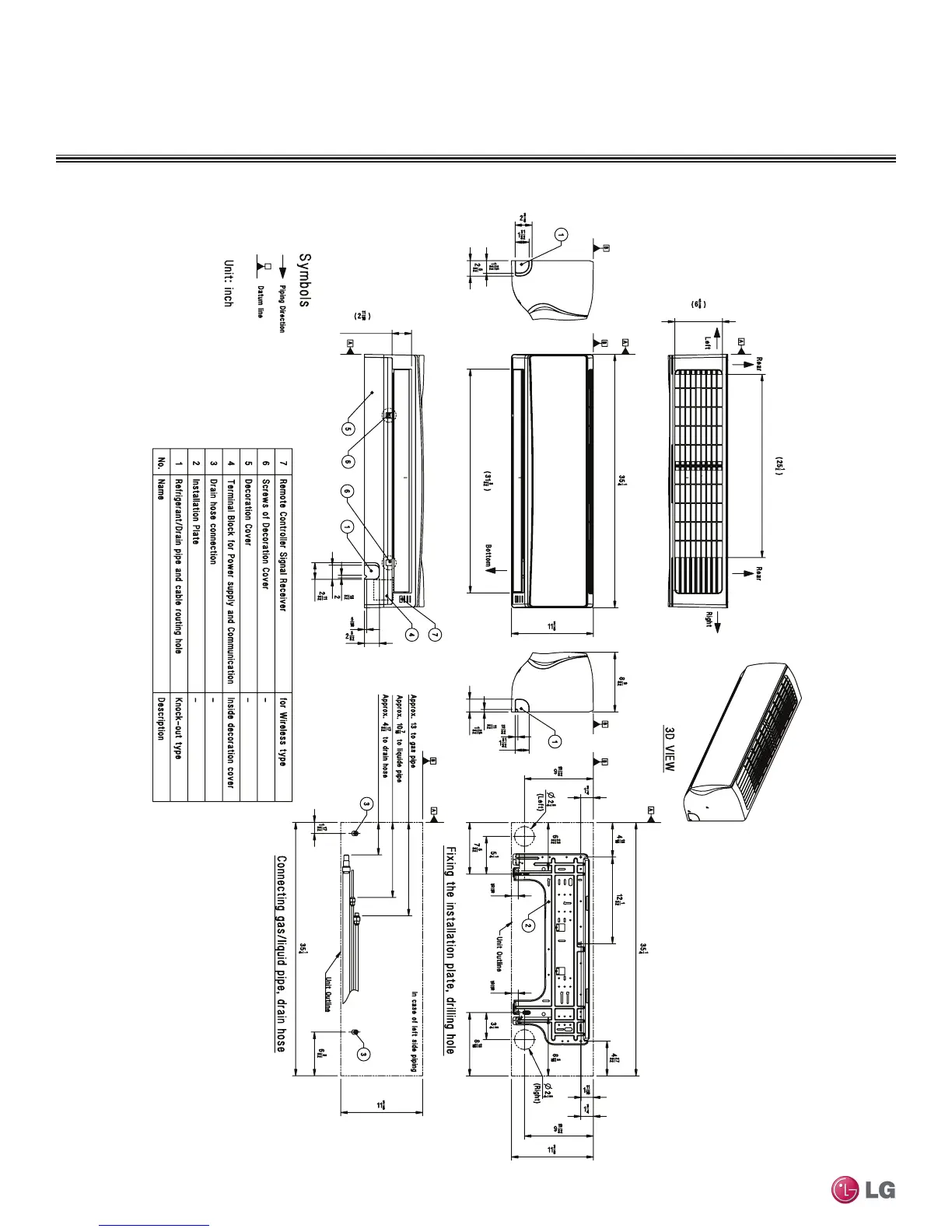

Figure 71: LMN077HVT, and LMN157HVT Dimensions.
Supply Air Vane
Return Air Inlet
Return Air Inlet
Supply Air Vane
