LG MULTI F MAX Engineering Manual

INSTALLATION & LAYOUT BEST PRACTICES
Refrigerant Piping System Layout
Examples of Supports
Bolt
1.5t
Plate
Insulation
Bolt
PVC
PVC

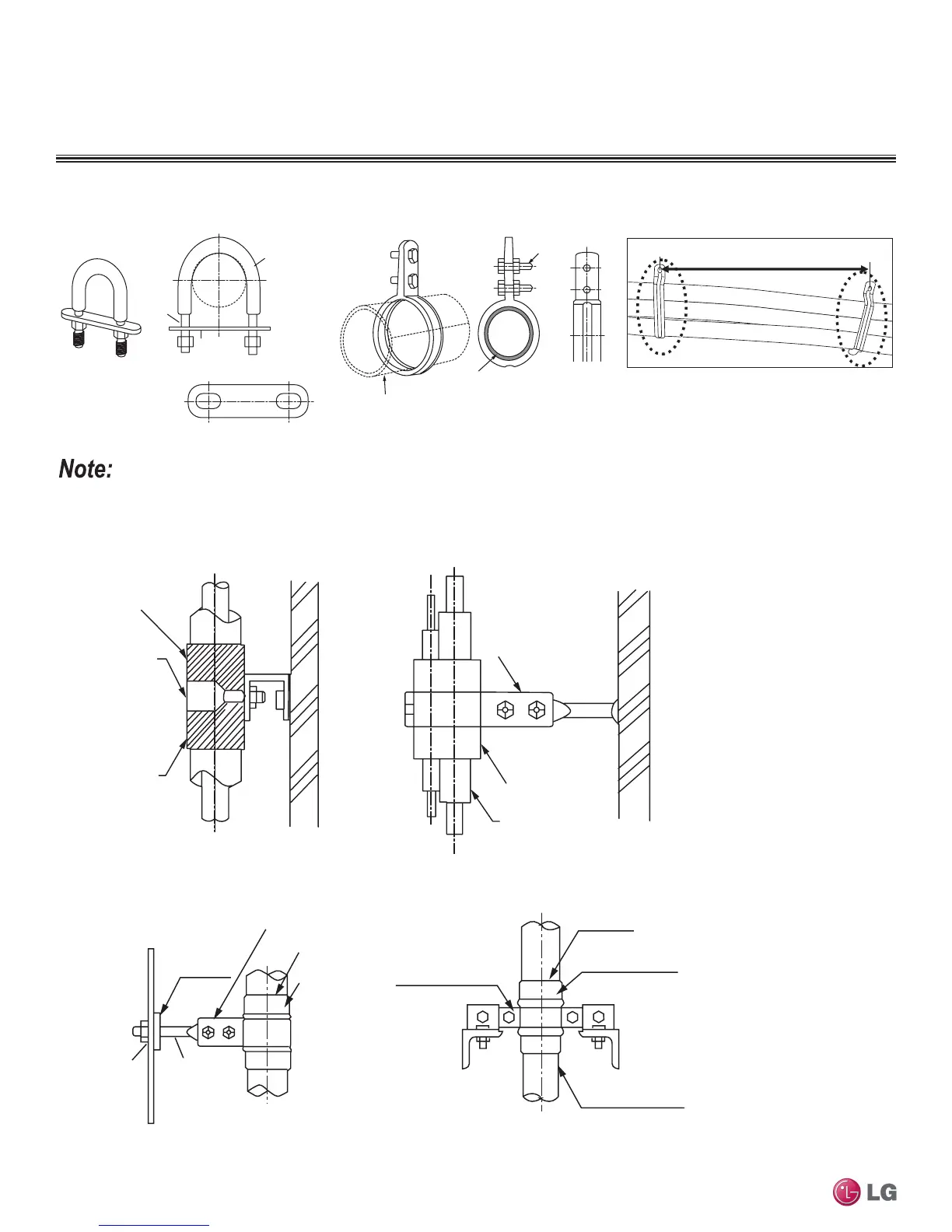

Figure 271:U-Bolt Support with Insulation. Figure 272:O-Ring Support with Insulation.
To prevent
insulation from
pressing and
lagging, use a cover.
Sheathing
Sheathing
O-Ring
Band
Lags
Do not compress the insulation with the saddle-type support. If the insulation is compressed, it may tear open and allow condensation to
generate during product operation.
Welding
Refrigerant Pipe
Insulated
Support Band
Insulated
Support Band
Down
Stop
Welding
Plate Nut
Hexagonal Nut
O-ring Band
Support at Intervals Between 5 and 6-3/4 Feet
Figure 273:Saddle-Type Support.
Figure 274:U-Bolt Support with an Insulated Pipe. Figure 275:O-Ring Band Support with an Insulated Pipe.
Figure 276:One-Point Down-Stop Support (>441 lbs.).
Figure 277:Two-Point Down-Stop Support.
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
202 | DESIGN & PRACTICES
Multi F and Multi F MAX Indoor Unit Engineering Manual
