72 | STD. WALL-MOUNTED
Multi F and Multi F MAX Indoor Unit Engineering Manual
MULTI
F
MAX
MULTI
F

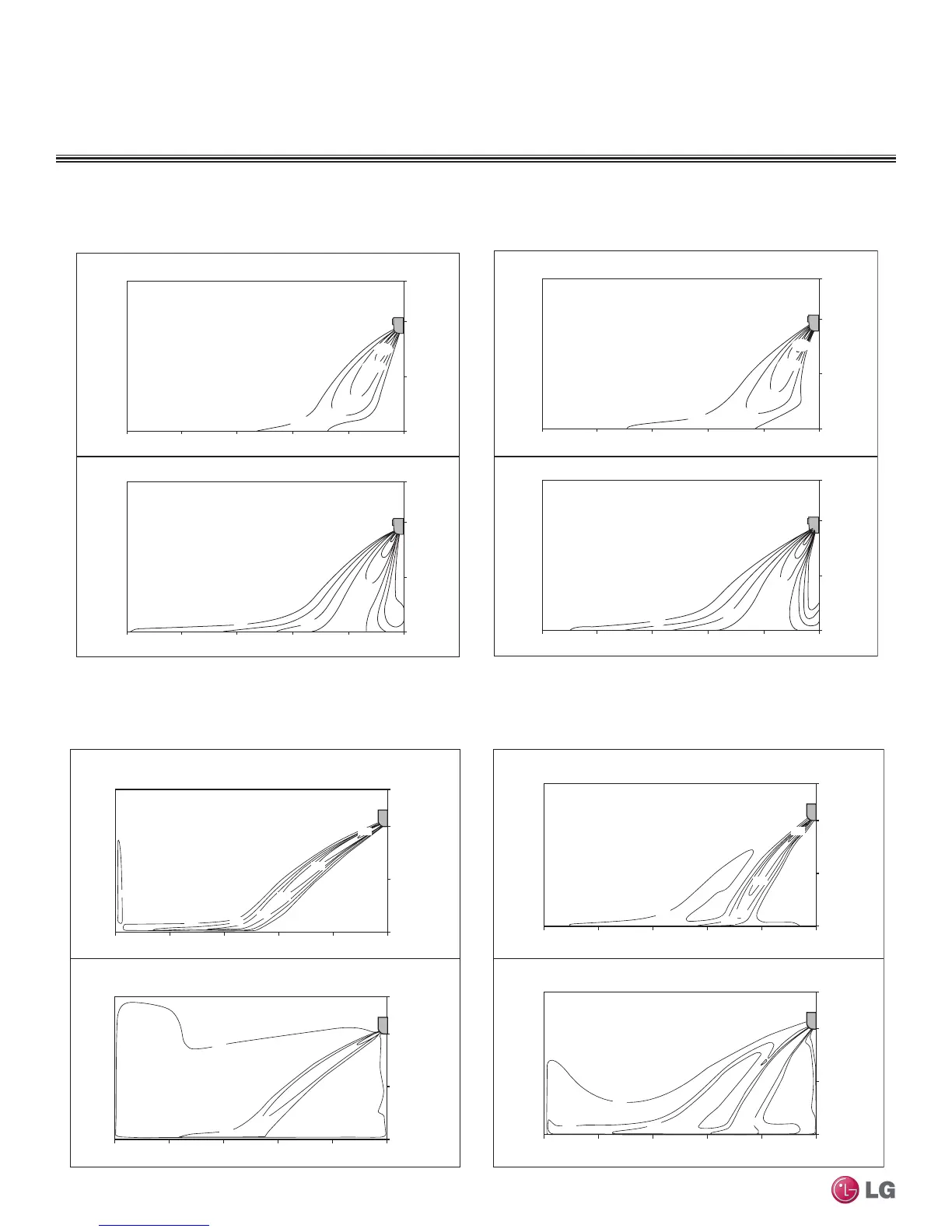

Figure 80:LSN120HSV4 Air Velocity and Temperature Distribution Charts.
Cooling Heating
Air velocity [ft/s]
Temperature [˚F]
2.5
4.1
3.3
4.9
1.6
77
75.2
73.4
8.9ft
6.6ft
4.0ft
0ft
0ft3.3ft6.6ft9.8ft13.1ft16.4ft
0ft3.3ft6.6ft9.8ft13.1ft16.4ft
8.9ft
6.6ft
4.0ft
0ft
Air velocity [ft/s]
Temperature [˚F]
2.5
4.1
3.3
4.9
1.6
82.4
84.2
86
8.9ft
6.6ft
4.0ft
0ft
0ft3.3ft6.6ft9.8ft13.1ft16.4ft
8.9ft
6.6ft
4.0ft
0ft
0ft3.3ft6.6ft9.8ft13.1ft16.4ft
Discharge angle:45° Discharge angle:50°
Air Velocity and Temperature Distribution
STANDARD WALL-MOUNTED INDOOR UNITS
Figure 81:LMN157HVT Air Velocity and Temperature Distribution Charts.
Cooling Heating
Temperature [°F]
1.6
1.6
4.9
6.6
8.2
9.8
3.3
70
68
64
9f t
7f t
3f t
0f t
16ft 13ft 10f t7ft 3f t
0f t
9f t
7f t
3f t
0f t
16ft 13ft 10f t7ft 3f t
0f t
Air velocity [ft/s]
Temperature [°F]
1.6
3.6
4.9
6.6
8.2
86
90
93
82
9f t
7f t
3f t
16ft 13ft 10f t7ft 3f t
0f t
9f t
7f t
3f t
0f t
0f t
16ft 13ft 10f t7ft 3f t
0f t
Air velocity [ft/s]
Discharge angle : 40° Discharge angle : 50°
