LG MULTI F MAX - Page 77

STD. WALL-MOUNTED | 77
Standard Wall-Mounted
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MULTI
F
MAX
MULTI
F
Wiring Diagram
STANDARD WALL-MOUNTED INDOOR UNITS

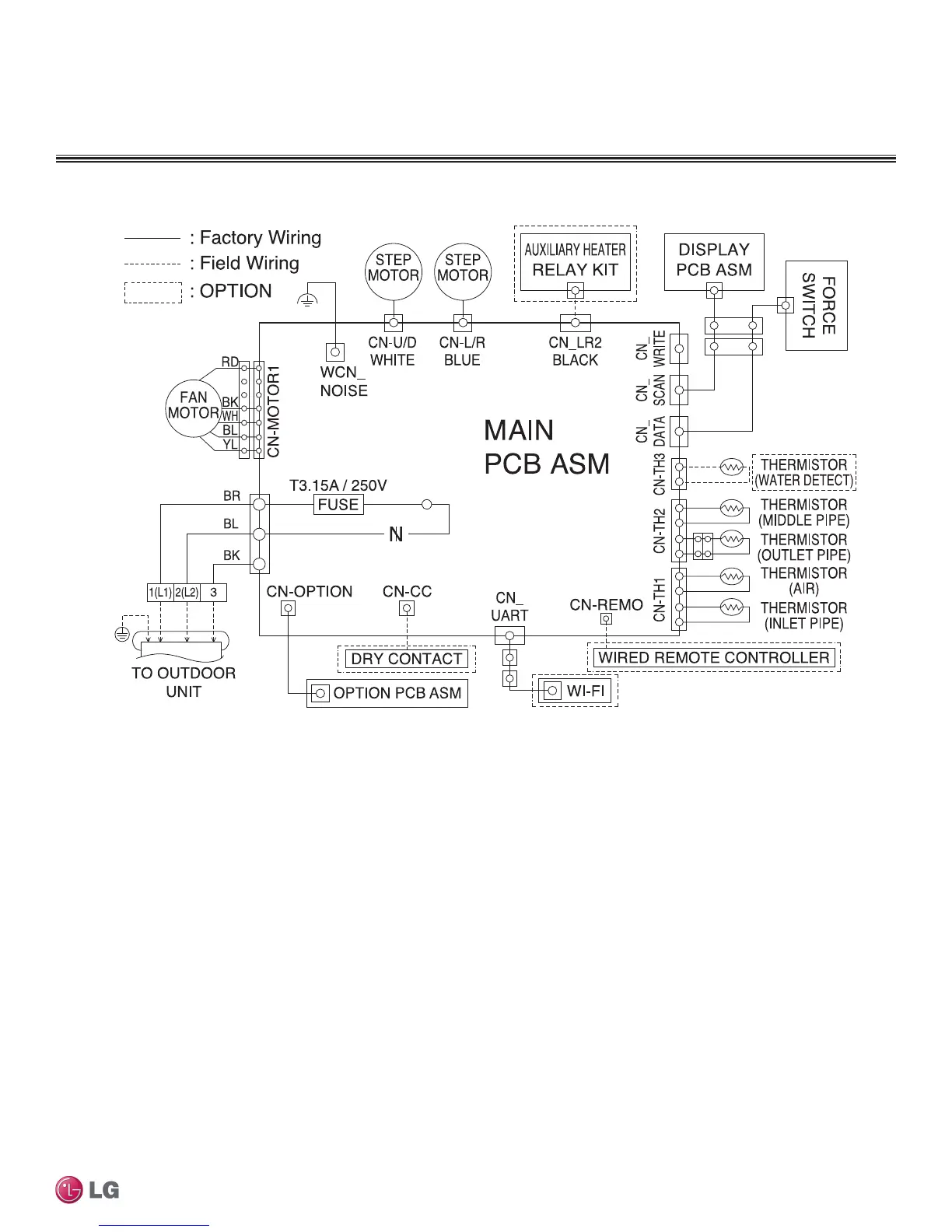

Figure 87:Multi F Standard Wall-Mounted LSN090HSV4 and LSN120HSV4 Indoor Units Wiring Diagram.
