28
Usage of each item on SuperSign Manager Software

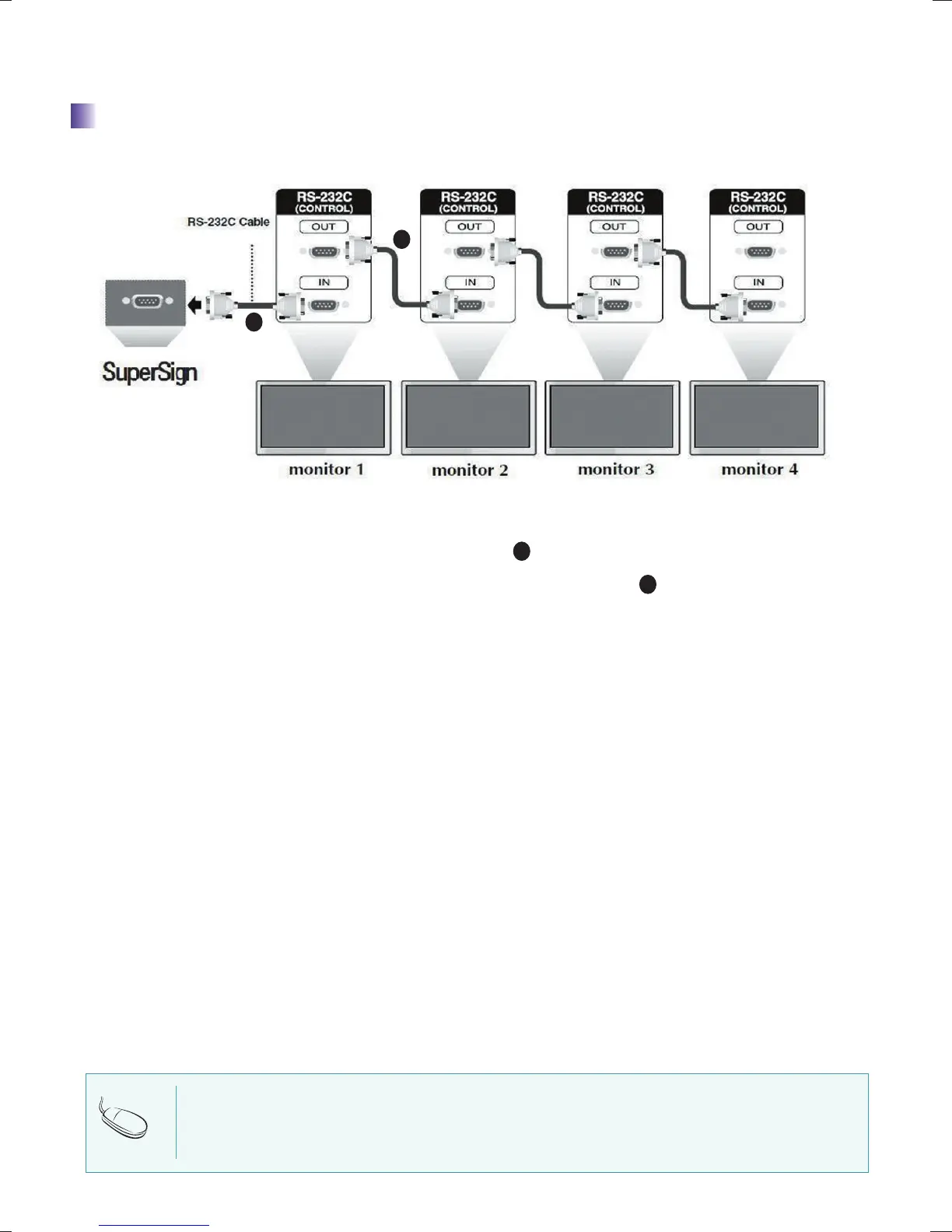

Tile Mode Control Cable
1
2
1. Tile mode can be configured when several monitors are connected to one SuperSign
2. Connect ‘RS232C Out’ of SuperSign to ‘RS232C In’ of the monitor.
3. For connection between monitors, connect ‘RS232C In’ and ‘RS232C Out’ as shown in
4. To set the Tile Mode, you must separately purchase the RS-232C cable.
1
2
·To set the Tile Mode, you must set unique Set ID in each Monitor OSD Menu ( Set ID: 1 ~ 25)
NOTE
To Next Page
