PRDCAM AHU Communication Kit Installation Manual

Due to our policy of continuous product innovation, some specications may change without notication.

1. Use the key to open the AHU Communication Kit door.

2. Remove the four nuts from the four captive bolts at the corners of the control panel assembly.

3. Carefully remove the control panel assembly from the AHU Communication Kit.

4. Use the AHU Communication Kit as a template and mark the locations of the screw holes on the mounting surface.

NOTE: Do not drill holes without removing the control panel assembly.

Metal shavings can collect on the control panel assembly and damage the equipment when power is applied�

5. Drill the four holes for the field-supplied screws. Ensure the drill bit does not damage any equipment or components.

6. Carefully replace the control panel assembly and secure with the four nuts on the four captive bolts.

7. Position the AHU Communications Kit at the mounting location and secure with four field-supplied screws. Ensure the screws

do not damage any equipment or components.

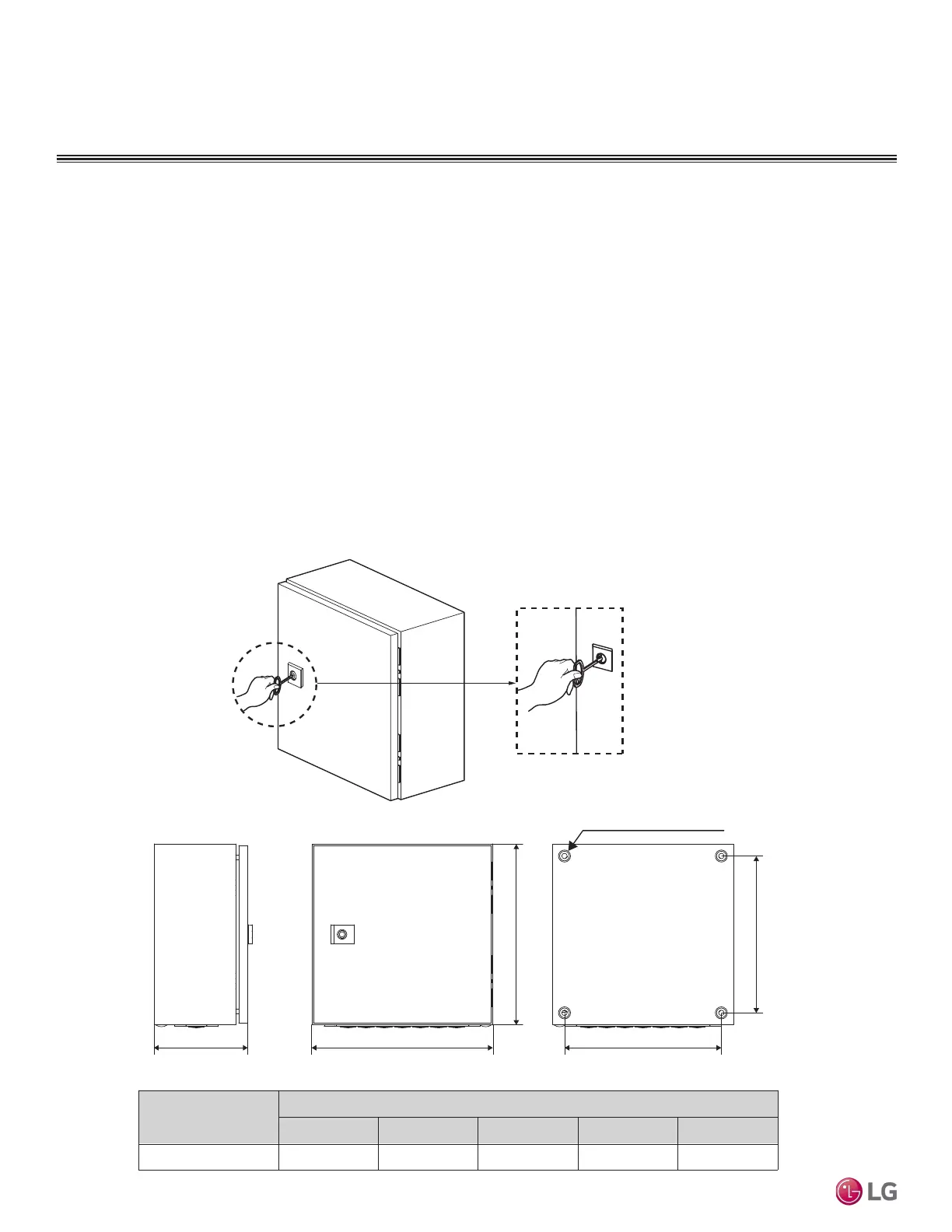

Figure 6: AHU Communications Kit Installation

AHU COMMUNICATIONS KIT INSTALLATION

AHU Communications Kit Mounting

Model

PAHCMS000 14 31/32 6-3/32 11-13/16 13-2/5 10-1/4

11/32 Holes (4)

BackFrontSide

Size (inch)

W D H A B

D W A

LG PAHCMS000 Installation Manual

Other manuals for LG PAHCMS000
