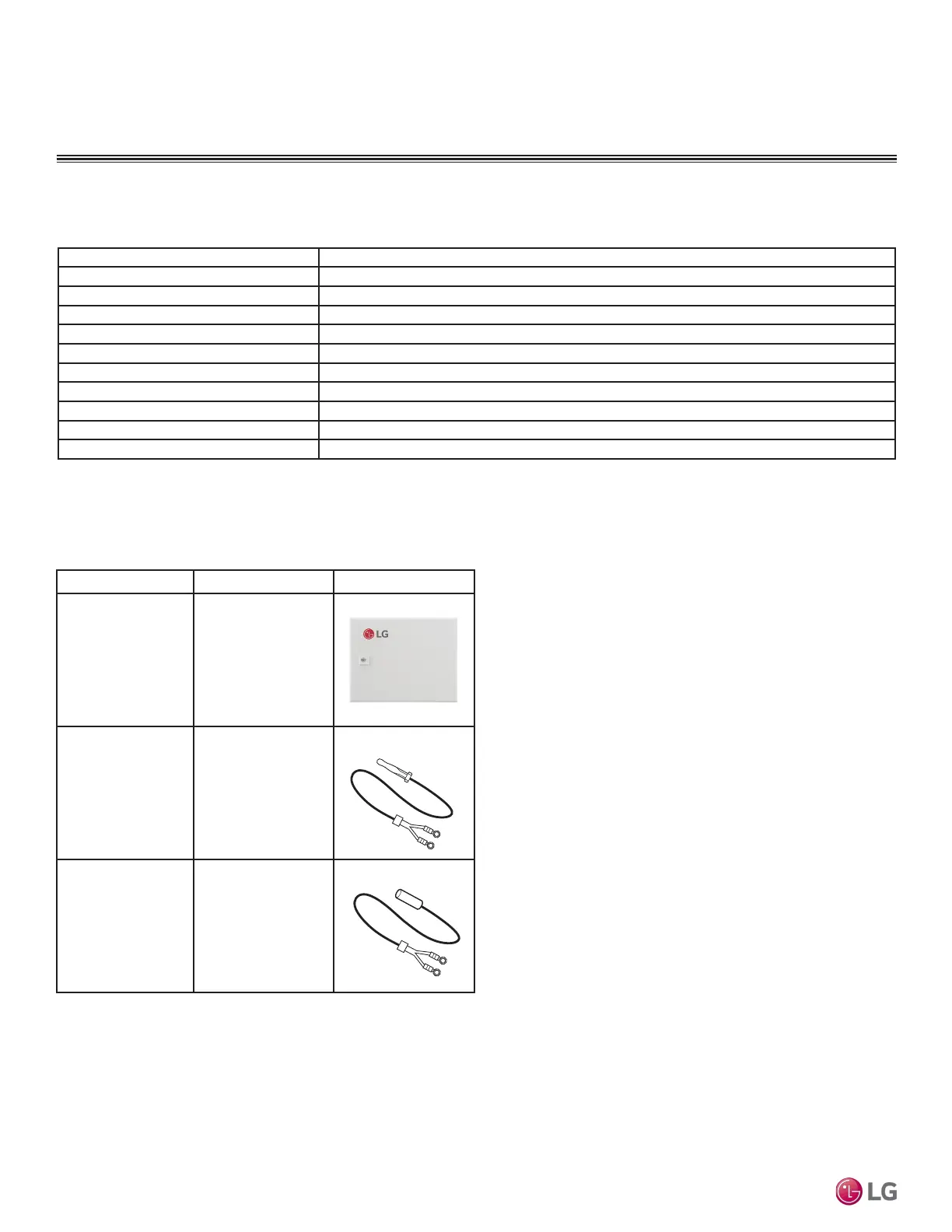

PRDCAM AHU Communication Kit Installation Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Specifications
Table 1: PAHCMS000 AHU Communications Kit Specications Table.
AHU Communications Kit Components
Table 2: PAHCMS000 AHU Communications Kit Components Table (factory supplied).
Kit Model Number PAHCMS000
For Use With Multi V and Single Zone
Power Supply Requirements 208-230VAC, 60Hz, 1Ph
Rated Current 0.1A
Ambient Operating Temperature Range -4 to +149°F
Ambient Operating Humidity Range 0 to 98% (Non-condensing)
Dimensions (in., W x H x D) 14-31/32” W x 6-3/32” H x 11-13/16” D
Net Weight (lbs.) 16.5
Shipping Weight (lbs.) 19.4
Communications RS-485 (4 wires required: 2 connect to IDU A/B terminals and 2 connect to UI4/G terminals on ODU)
Communications Cable AWG 18 x 4 Stranded, Shielded Copper Cable
Part Quantity Image
AHU
Communications Kit
One (1)
Return Air (Room)
Thermistor
One (1)
Pipe Thermistor
Two (2)
(One [1] Pipe In,
One [1] Pipe Out)
AHU COMMUNICATIONS KIT SPECIFICATIONS,
COMPONENTS LIST
