9
CONNECTION
AND SETTING

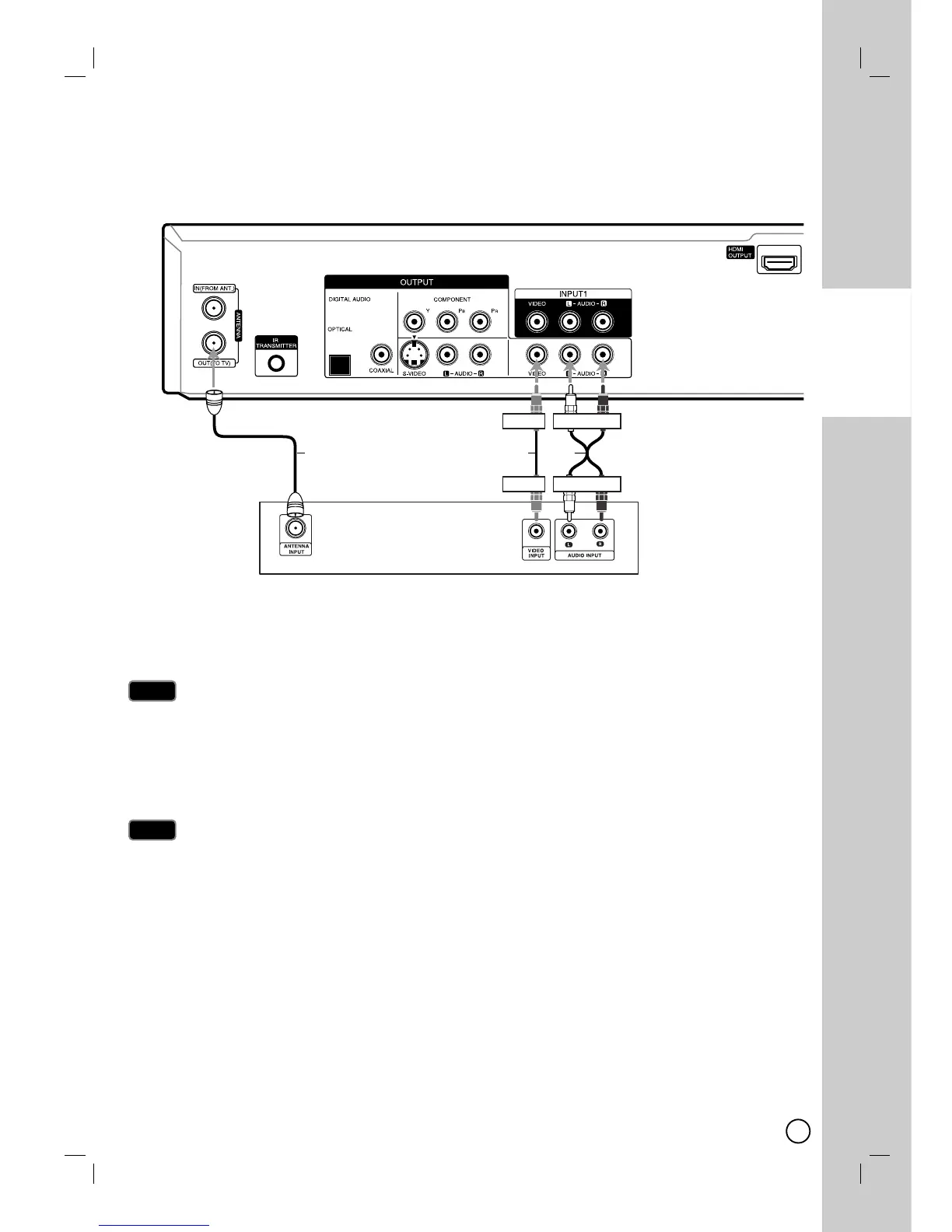

Connections to your TV (Composite)
Connections to your TV (Composite)
Make one of the following connections, depending on the capabilities of your TV.
RF coaxial connection
Connect the ANTENNA OUT jack on the Recorder to the antenna in jack on the TV using the supplied 75-ohm
Coaxial Cable (R).
This model do not have RF modulated output function RF CH3, or CH4.
You cannot watch this recorder with TV tuner.
Video connection
Connect the VIDEO OUTPUT jack on the Recorder to the video in jack on the TV using the video cable
supplied (V).
If you use this connection, set the TV’s source selector to VIDEO.
Audio connection
Connect the Left and Right AUDIO OUTPUT jacks on the Recorder to the audio left/right in jacks on the TV using
the supplied audio cables (A1).
Note
Note
Note
Note
