P
ar
t 2 Functions & Controls

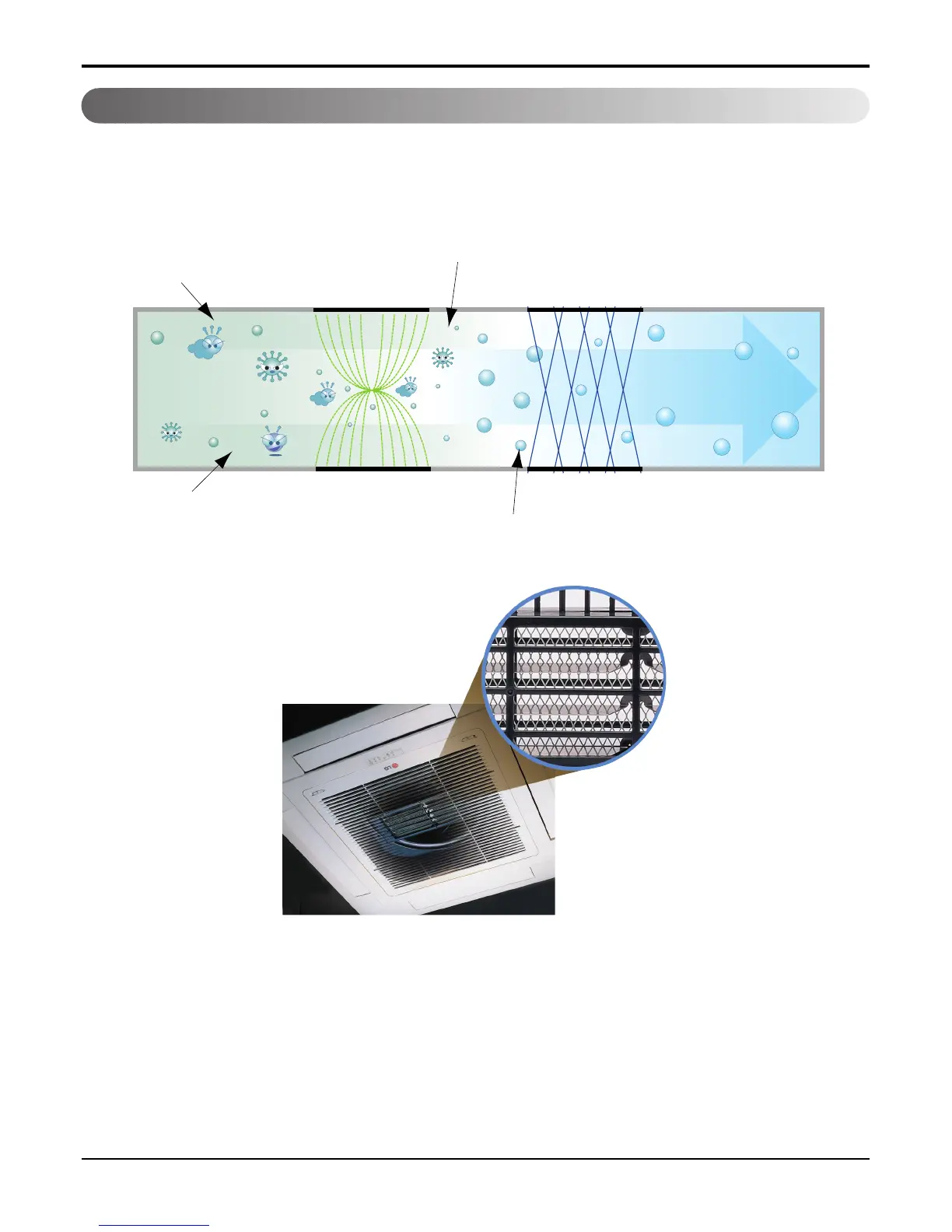

3.1 PLASMA Air Purifying System
The PLASMA Air Purifying System not only removes microscopic contaminants and dust, but also removes house
mites, pollen, and pet fur to help prevent allergic diseases like asthma. This filter that can be used over and over again
by simply washing with water.
3. Air purifying
- 15
-
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Ionizer
Photo-Catalyst Coated Mesh
Dust par
ticles
Odour
Dust electrode discharge
Odour molecule
Generating plasma
+
+
+
+
P
olluted Air
Purified fresh Air
+4.8KV discharge
+
15
17
