Part 2 Functions & Controls
Installer Setting -Static Pressure Setting
This function is applied to only duct type. Setting this in other cases will cause malfunction.
Pressure selection
Function
Zone state ESP standard value
01 F-L Fixed Low
02 F-H Fixed High
03 V-L Variable Low
04 V-H Variable High

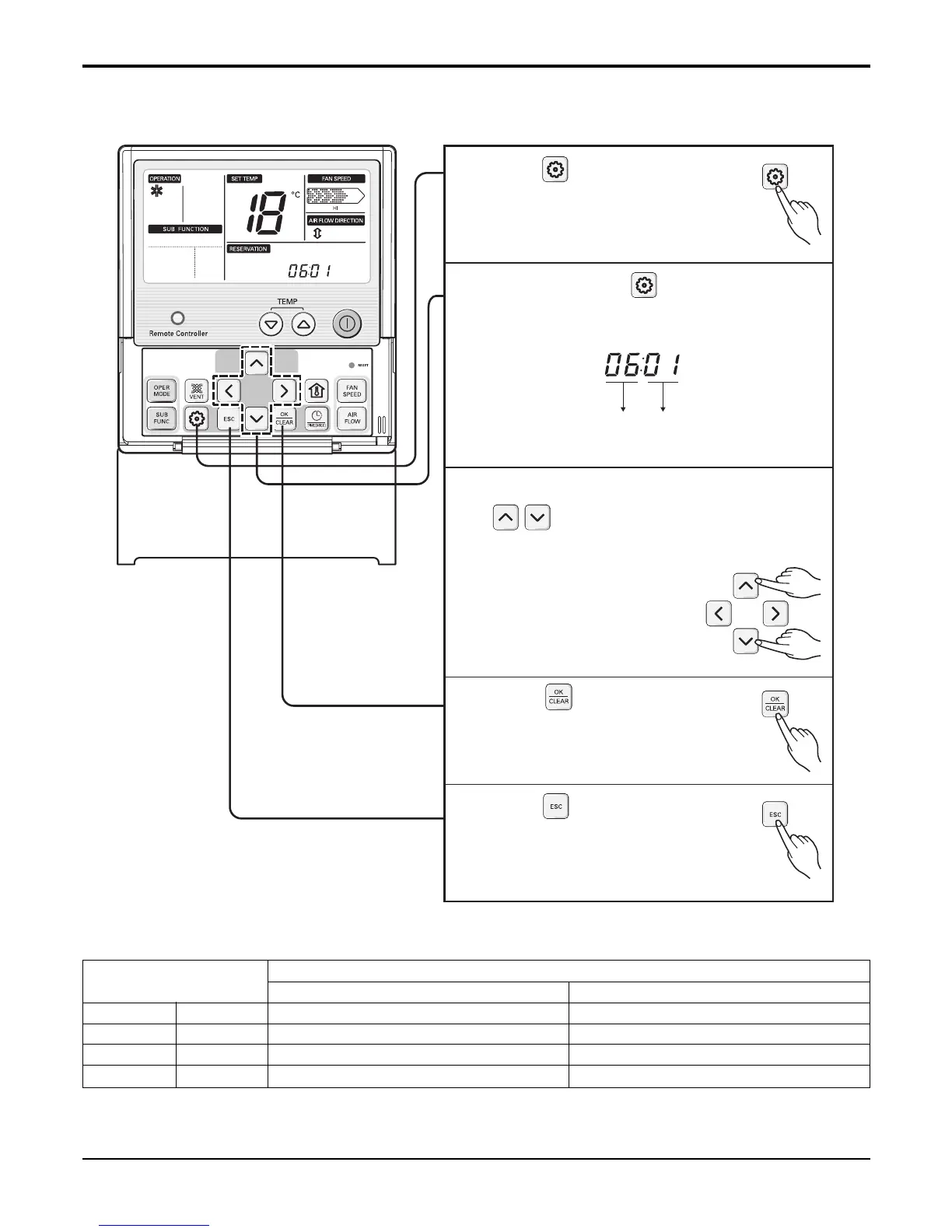

<Static Pressure Setting Table>
Function Code Pressure
Press button for 4 seconds
to enter the installer setting
mode until timer segment
display “01:01”.
1
Repeat pressing button to select
Function code 06.
2
Select static pressure by pressing
button.
(01:V-H, 02:F-H, 03:V-L, 04:F-L)
3
Press button to save or
release.
4
Press button to exit or
system will automatically exit
after 25 seconds without any
input.
