5. Trouble Shooting
1. Self-diagnosis Function
1.1 Error Indicator (Indoor)
• The function is to self-diagnosis air conditioner and express the troubles if there is any trouble.
• Error mark is displayed on display window of indoor units and wired-remote controller, and LED of outdoor unit control
board.
• If more than two troubles occur simultaneously, lower number of error code is first displayed.
• After error occurs, if error is released, error LED is also released simultaneously.
1 Time 1 Time 1 Time
2 Times2 Times2 Times
10 digit
LED
1 digit
LED
1 Sec.
2 Sec. 2 Sec.
1 Sec.
1 Sec.
1 digit 10 digit

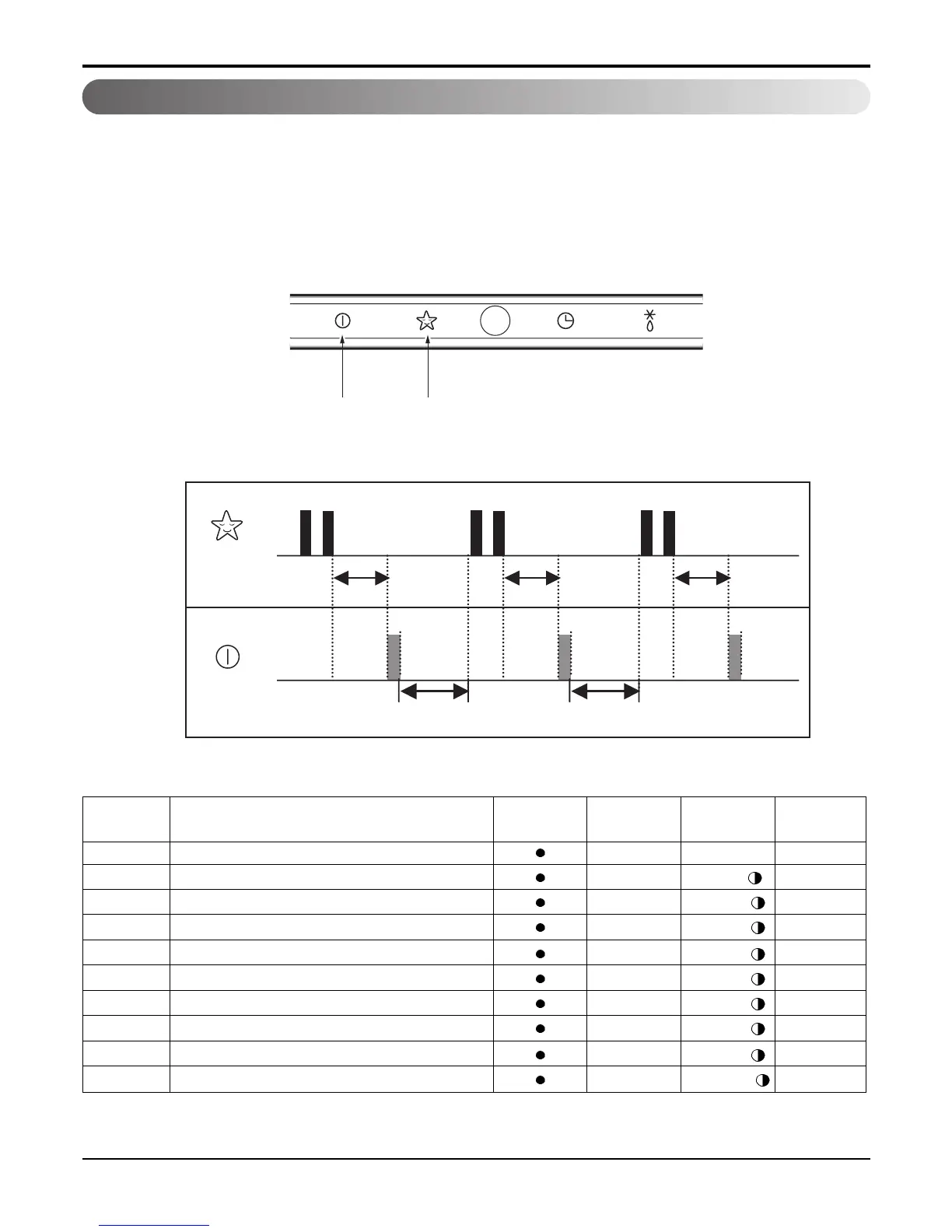

Ex) Error 21 (DC Peak)
1.2 Indoor Error
Error code
Description
INV TPS
LED 1
(Red)
LED 2
(Green)
Indoor
Status
00 No Error ON
01 Indoor Room themistor error 1time OFF
02 Indoor in-piping sensor error 2times OFF
03 Remote controller error 3times OFF
04 Drain Pump error 4times OFF
05 Communcation error between in and out 5times OFF
06 Indoor Out-Piping sensor error 6times OFF
07 Differnt mode operation 7times OFF
09 Checksum error 9times OFF
10 BLDC motor fan lock (indoor) 10times OFF
