- 31 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Part 2 Functions & Controls
7. Special Function & KIT

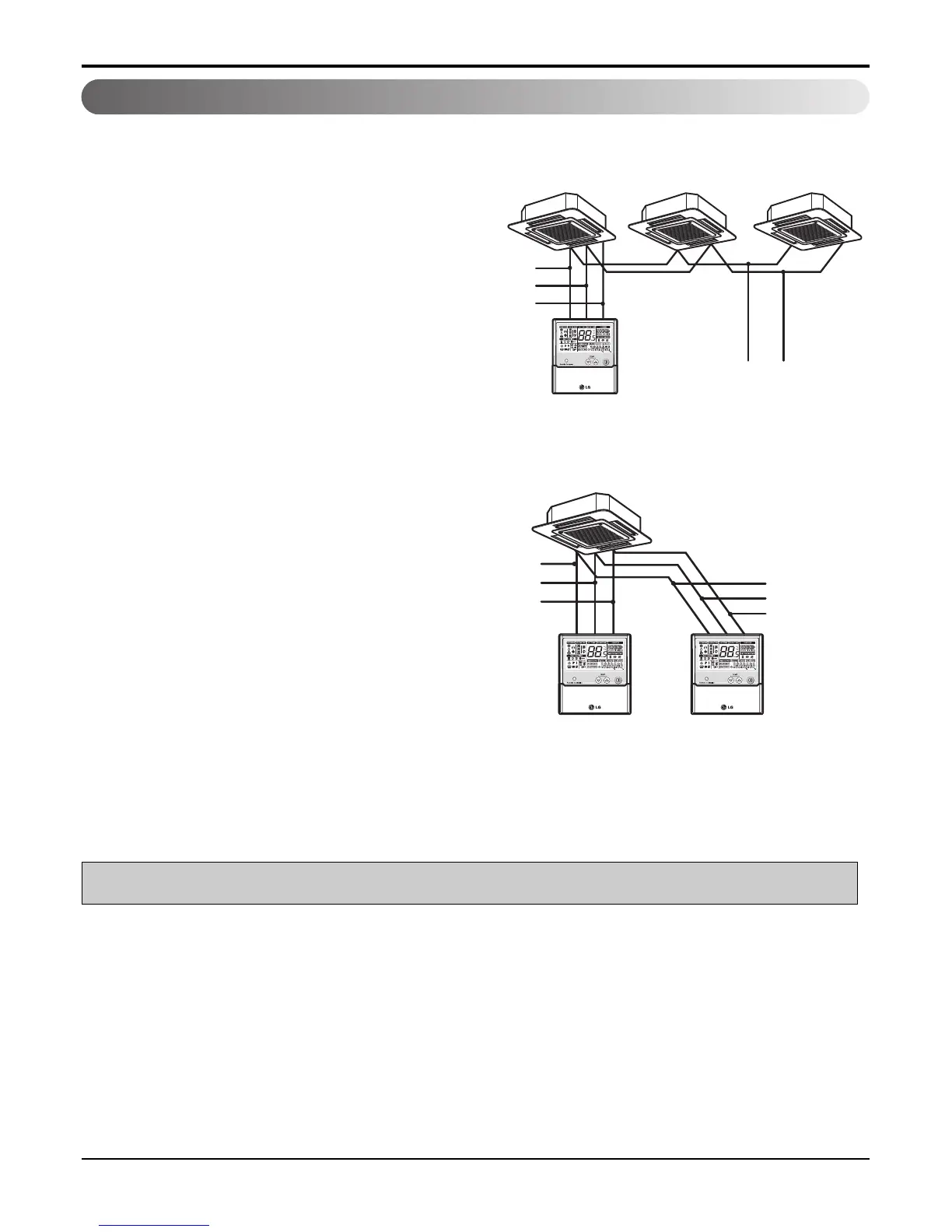

7.1 Wired Remote controller(PQRCUSA0) installation guide
7.1.1 When installing more than 2 units of air
conditioner to one wired remote con-
troller, please connect as the right fig-
ure.
If it is not event communication indoor unit, set the unit
as slave.
Check for event communication through the product
manual.
Refer to regarding page on how to set the slave.
7.1.2 When installing more than 2 wired
remote controllers to one air conditioner,
please connect as the right picture.
When installing more than 2 units of wired remote con-
troller to one air conditioner, set one wired remote con-
troller as master and the others all as slaves, as shown
in the right picture.
Refer to Installer setting section on how to set
master/slave.
You cannot control the group as shown in the right for
some products.
GND
GND
12V
Signal wire
Signal wire
GND
12V
B Y R B Y R
MASTER SLAVE
Signal wire
GND
12V
Signal wire
<When simultaneously connecting
2 sets of wired remote controller>
<<You cannot use this function when using Synchro operation>>
Some products do not use 'Group control'. It depends on the product type.
