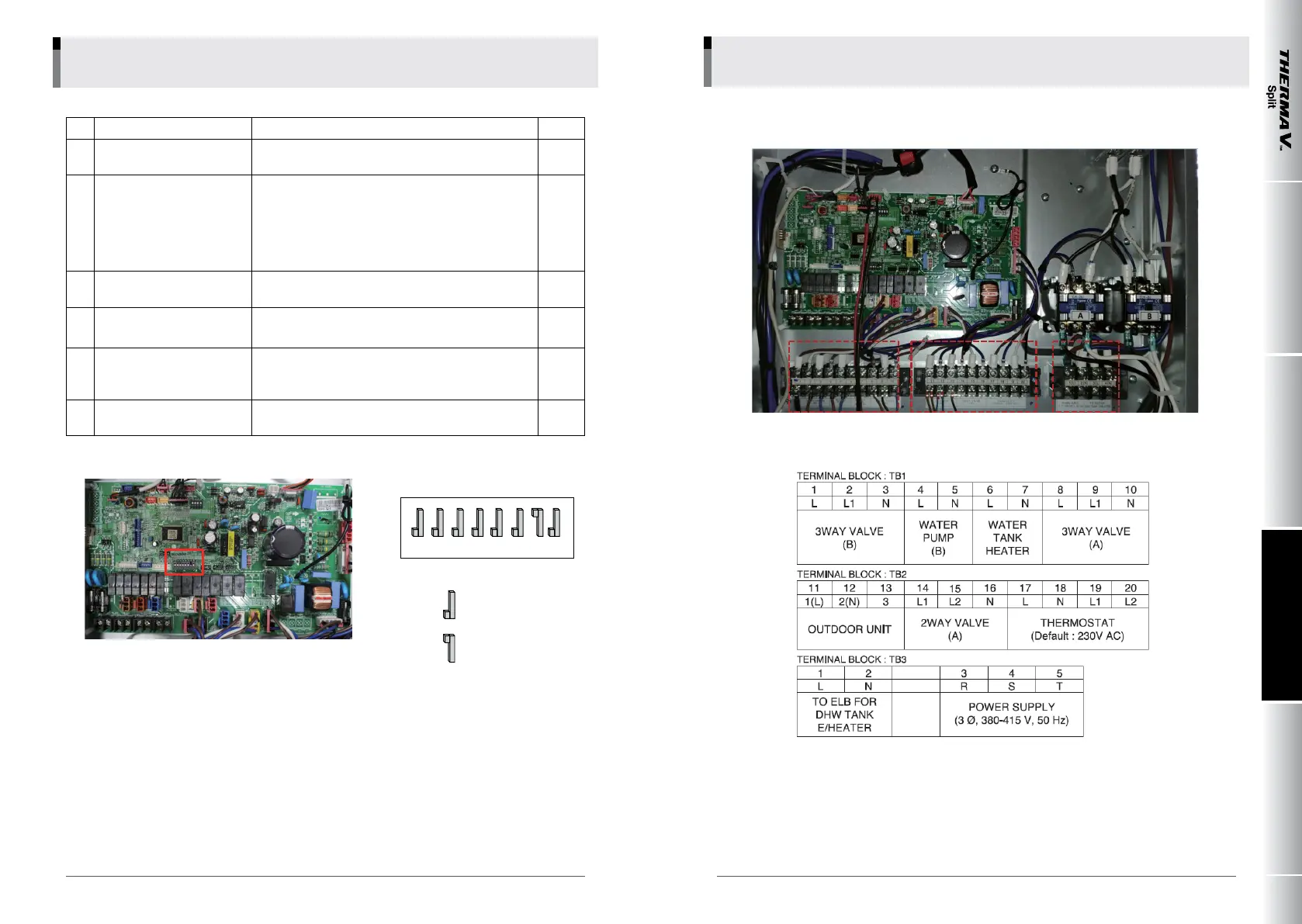

No. Description Details Default
1
Role when central controller
is equipped
• 1 off : Master
• 1 on : Slave
1 off
2
Accessory installation
information
• 2 & 3 off : Indoor unit + Outdoor unit are installed
• 2 off + 3 on : Indoor unit + Outdoor unit + DHW tank
are installed
• 2 on + 3 off : Indoor unit + Outdoor unit + DHW
tank+ Solar thermal system are
installed
2 & 3
off
3 Emergency operation Level
• 4 off : High temperature cycle
• 4 on : Low temperature cycle
4 off
4
External water pump
installation information
• 5 off : External water pump is NOT installed
• 5 on : External water pump is Installed
5 off
5
Selecting electric heater
capacity
• 6 & 7 off : Full capacity is uesd
• 6 off + 7 on : Half capacity is uesd
• 6 on + 7 off : Electric heater is not used
6 off
+
7 on
6
Thermostat installation
information
• 8 off : Thermostat is NOT installed
• 8 on : Thermostat is installed
8 off
OFF
ON
1 23 45678
[PCB]
Dip S/W
OFF is selected
ON is selected
• PCB on Indoor unit [3
rd
gen split]
TB1 TB2TB3
052 053
_ COMPREHENSIVE APPLICATION AND INSTALLATION MANUAL
LG Electronics
Installation check listConguration
System Design ApplicationsIntroduction
2. Dip S/W Setting

LG THERMA V Split Specifications

General

Refrigerant	R32
Energy Efficiency	A+++
Power Supply	220-240V, 50Hz
Sound Power Level	Varies by model
Noise Level (Outdoor)	45 dB - 55 dB
Indoor Unit Dimensions (WxHxD)	Varies by model
Outdoor Unit Dimensions (WxHxD)	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
Air Flow (Indoor)	Varies by model
