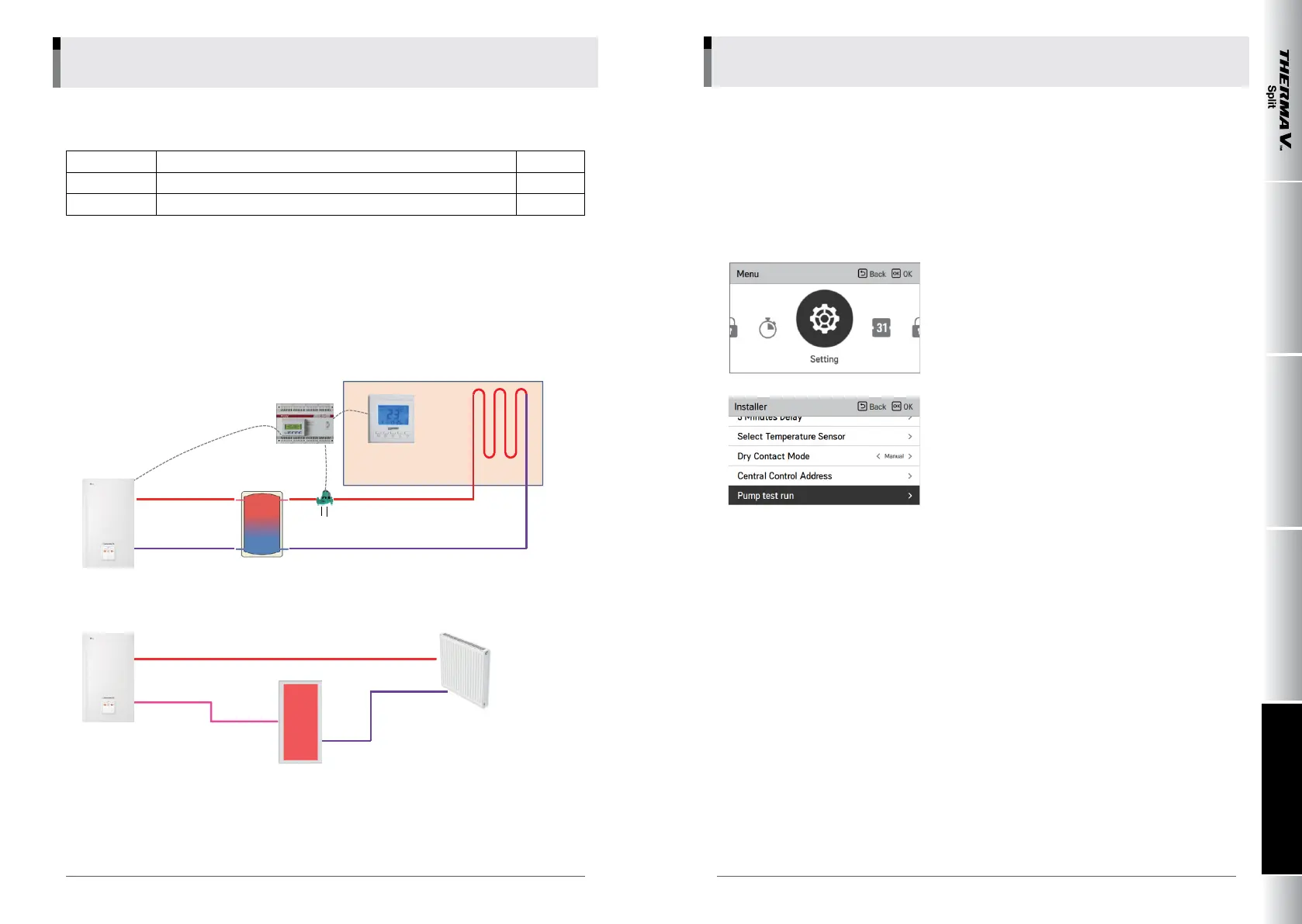

1.20 Installation buffer tank & auxiliary pump
Items to check Are buffer tank and auxiliary pump installed? Result
Purpose Secure ow and see if system is stabilized
Applicants Common
Install the buffer tank with the following goals(Field scope).
1. For oor heating and if ow resistance is too high
2. For defrosting, oil retrieval operation and continuous heating
3. Preventing short cycle from load variation
Secondary pump needs to be installed if the buffer tank is to be installed(Field scope)
Generally a third party controller is intalled to control the pump at the load side.
External pump
Buffer tank
Thermostat
DDC Controller
Additional power
[Design & Installation Scene]
[Design & Installation Scene]
Buffer tank
Check compliance with installation checklist after installing the system and engage in pilot operation.
See if air vent is open rst and engage in air fudge operation. Will take 10~60 minutes depending on
on-site conditions.
Check if there is no noise from air getting released nor ow inside before engaging in either heating or
cooling operation.
Check what's displayed on the remote controller's panel as below and end pilot operation.
• Operating air purge
In the menu screen, press [<, >(left/right)] button to
select the setting category, and press [∧(up)] button for
3 seconds to enter the password input screen for the
installer setting.
• Input the password and press [OK] button to move to
the installer setting list.
Pump starts operating as ON button is pressed, and it
continues operating until OFF button is pressed.
Run up to 1 hour and pump will stop automatically.
2. Test run
