A-16
PREPARATION
PREPARATION

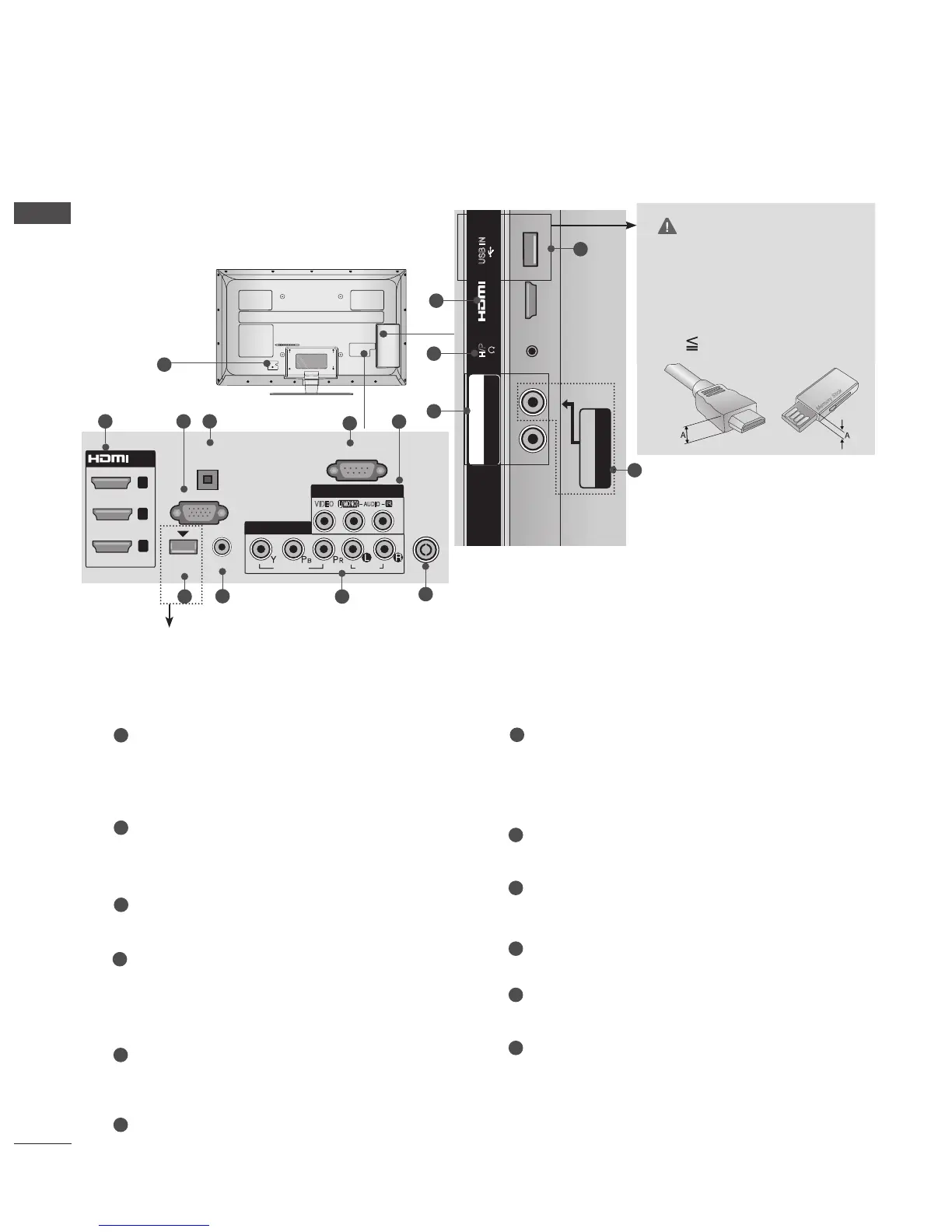

Only 32/37/42/47/55LE53**, 32/42/47/55LE4***
CAUTION
► Use a product with the follow-
ing thickness for optimal con-
nection to HDMI cable(only
HDMI IN 4) / USB device.
*A 10 mm
■ Image shown may differ from your TV.
Power Cord Socket
This TV operates on an AC power. The volt-
age is indicated on the Specifications page.
(► p.161 to 173) Never attempt to operate
the TV on DC power.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
RGB IN Input
Connect the output from a PC.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of
equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
WIRELESS Control
(Except 32/42/47/55LE46**)
Connect the Wireless Dongle to the TV to
control the external input devices connected
to Media Box wirelessly.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
Component Input
Connect a component video/audio device to
these jacks.
Antenna / Cable Input
Connect antenna or cable to this jack.
USB Input
Connect USB storage device to this jack.
Headphone Socket
Plug the headphone into the headphone
socket.
1
2
3
4
5
6
7
8
9
10
11
12
RGB IN
(PC)
RS-232C IN
(CONTROL & SERVICE)
(RGB/DVI)
WIRELESS
CONTROL
/DVI IN
1
2
3
AUDIO IN
OPTICAL
DIGITAL
AUDIO OUT
AUDIO
VIDEO
COMPONENT IN1
R
L(MONO)
AUDIO
VIDEO
AV IN 1
ANTENNA /
CABLE IN
(DVI)
To Next Page
