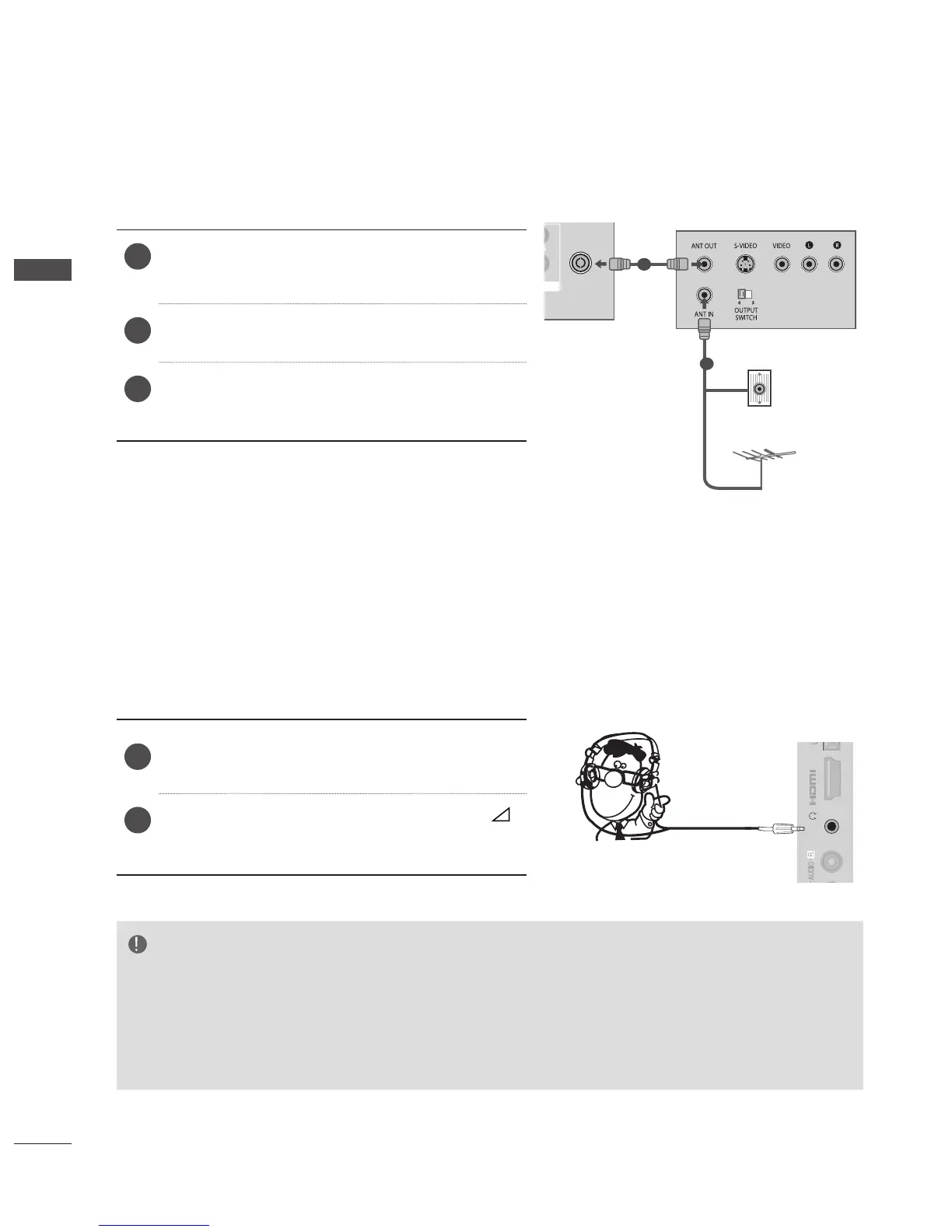

■ To avoid picture noise (interference), allow adequate distance between the VCR and TV.
Wall Jack
Antenna
1
2
1
Connect the ANT OUT socket of the VCR to
the ANTENNA / CABLE IN socket on the TV.
2
Connect the antenna cable to the ANT IN
socket of the VCR.
3
Press the PLAY button on the VCR and match
the appropriate channel between the TV and
VCR for viewing.
h}GpuY
puGZ
H/P
HEADPHONE SETUP
You can listen the sound through the headphone.
NOTE
► AUDIO menu items are disabled when connecting a headphone.
► When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
► Optical Digital Audio Out is not available when connecting a headphone.
► Headphone impedance: 16 Ω
► Max audio output of headphone: 10 mW to 15 mW
1
Plug the headphone into the headphone socket.
2
To adjust the headphone volume, press the
+ or - button. If you press the MUTE button,
the sound from the headphone is switched off.
